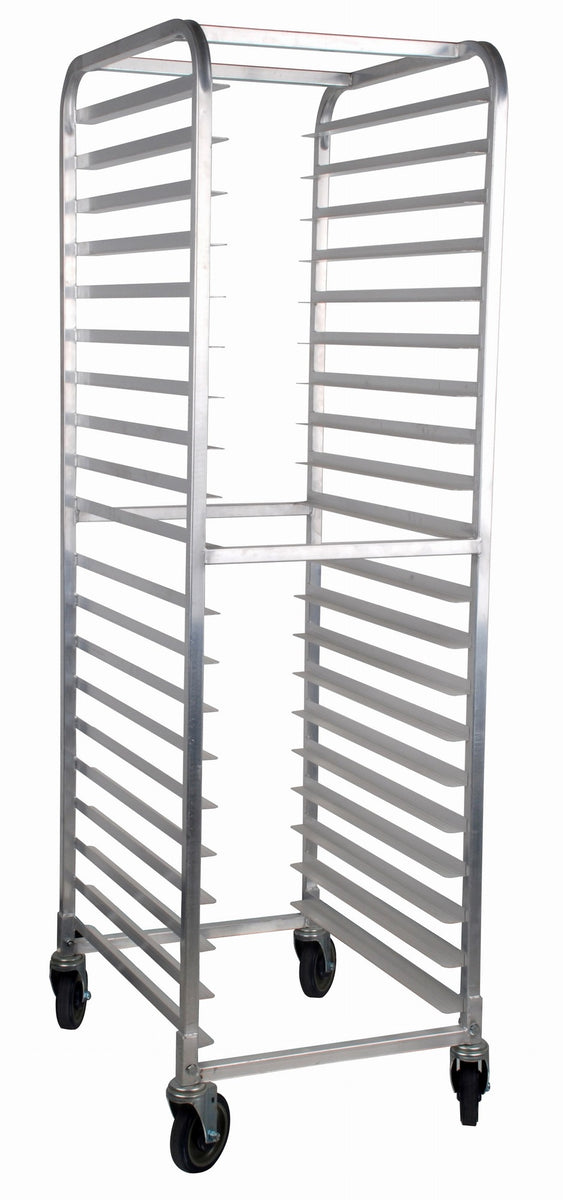

Omcan 47802 20-Slide Aluminum Steam Table Pan Rack, 3 In. Spacing, Curved Top, Mobile

SKU47802 BrandOmcan

The Omcan 47802 Steam Table Pan Rack

This Omcan mobile rack is built around steam table pans rather than sheet pans: twenty slides on 3 inch spacing sized to 14-1/4 x 22 inch pans, in a narrow aluminum frame only 16-1/2 inches wide. That slim footprint stages a full service line of hot table pans right behind the line. The frame is 1 x 1 inch aluminum tubing with a 1.2 mm wall and 1 x 1-1/2 inch aluminum angle slides with a 1.5 mm wall, standing 71 inches tall and 22 inches deep on 5 inch polyurethane swivel casters. Assembly is required, and the lowest slide sits 6 inches off the floor. The clear width between the uprights is 14-1/2 inches, which is the dimension to check against your pans.

Twenty Slides Sized to Steam Table Pans

Each of the twenty slides takes a 14-1/4 x 22 inch pan, so a loaded rack carries an entire buffet or banquet service in one rolling column. The slides sit on 3 inch spacing, the slide column runs 65 inches, and the lowest slide is 6 inches above the floor.

Narrow 16-1/2 Inch Footprint

The rack is 16-1/2 inches wide and 22 inches deep, with 14-1/2 inches of clear width between the uprights. Pans load from the open end of the frame.

Aluminum Tubing Frame with Angle Slides

The frame is 1 x 1 inch aluminum tubing with a 1.2 mm wall, and the slides are 1 x 1-1/2 inch aluminum angle with a 1.5 mm wall. The rack is supplied for assembly on site.

Polyurethane Swivel Casters and Curved Top

The rack comes complete with 5 inch polyurethane swivel casters, and the top of the frame is curved. Assembly is required.

About Omcan

For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.

Features & Benefits

Stages a full buffet or banquet line of steam table pans in one rolling column
Twenty slides sized to 14-1/4 x 22 inch steam table pans
Narrow 16-1/2 inch wide frame with 14-1/2 inches of clear width between the uprights
Slides on 3 inch spacing with the lowest slide 6 inches off the floor
1 x 1 inch aluminum tubing frame with 1 x 1-1/2 inch aluminum angle slides
Comes complete with 5 inch polyurethane swivel casters
Curved top frame, aluminum throughout
Supplied for assembly on site

Free Shipping ? 48 Contiguous states & DC only.

In Stock: Ships in 1-2 Business Days

$340.65

Stages a full buffet or banquet line of steam table pans in one rolling column

Twenty slides sized to 14-1/4 x 22 inch steam table pans

Narrow 16-1/2 inch wide frame with 14-1/2 inches of clear width between the uprights

Slides on 3 inch spacing with the lowest slide 6 inches off the floor

1 x 1 inch aluminum tubing frame with 1 x 1-1/2 inch aluminum angle slides

See full feature list

The Omcan 47802 Steam Table Pan Rack

This Omcan mobile rack is built around steam table pans rather than sheet pans: twenty slides on 3 inch spacing sized to 14-1/4 x 22 inch pans, in a narrow aluminum frame only 16-1/2 inches wide. That slim footprint stages a full service line of hot table pans right behind the line. The frame is 1 x 1 inch aluminum tubing with a 1.2 mm wall and 1 x 1-1/2 inch aluminum angle slides with a 1.5 mm wall, standing 71 inches tall and 22 inches deep on 5 inch polyurethane swivel casters. Assembly is required, and the lowest slide sits 6 inches off the floor. The clear width between the uprights is 14-1/2 inches, which is the dimension to check against your pans.

Twenty Slides Sized to Steam Table Pans

Each of the twenty slides takes a 14-1/4 x 22 inch pan, so a loaded rack carries an entire buffet or banquet service in one rolling column. The slides sit on 3 inch spacing, the slide column runs 65 inches, and the lowest slide is 6 inches above the floor.

Narrow 16-1/2 Inch Footprint

The rack is 16-1/2 inches wide and 22 inches deep, with 14-1/2 inches of clear width between the uprights. Pans load from the open end of the frame.

Aluminum Tubing Frame with Angle Slides

The frame is 1 x 1 inch aluminum tubing with a 1.2 mm wall, and the slides are 1 x 1-1/2 inch aluminum angle with a 1.5 mm wall. The rack is supplied for assembly on site.

Polyurethane Swivel Casters and Curved Top

The rack comes complete with 5 inch polyurethane swivel casters, and the top of the frame is curved. Assembly is required.

About Omcan

For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.

Features & Benefits

Stages a full buffet or banquet line of steam table pans in one rolling column
Twenty slides sized to 14-1/4 x 22 inch steam table pans
Narrow 16-1/2 inch wide frame with 14-1/2 inches of clear width between the uprights
Slides on 3 inch spacing with the lowest slide 6 inches off the floor
1 x 1 inch aluminum tubing frame with 1 x 1-1/2 inch aluminum angle slides
Comes complete with 5 inch polyurethane swivel casters
Curved top frame, aluminum throughout
Supplied for assembly on site

Resources & Downloads

Omcan 47802 Specsheet

See all from Omcan

Specifications

Number of Slides	20
Slide Spacing	3 in
Pan Capacity	(20) 14-1/4 x 22 in steam table pans
Loading	End load
Top Style	Curved
Material	Aluminum
Frame	1 x 1 in aluminum tubing, 1.2 mm wall
Slides	1 x 1-1/2 in aluminum angle, 1.5 mm wall
Clear Width Between Uprights	14-1/2 in
Lowest Slide Height	6 in
Slide Column Height	65 in
Casters	5 in polyurethane swivel
Overall Width	16-1/2 in
Overall Depth	22 in
Overall Height	71 in
Assembly	Required

Manufacturer's Warranty

6 Month

Warranty

Certifications & Approvals

NSF Approved
