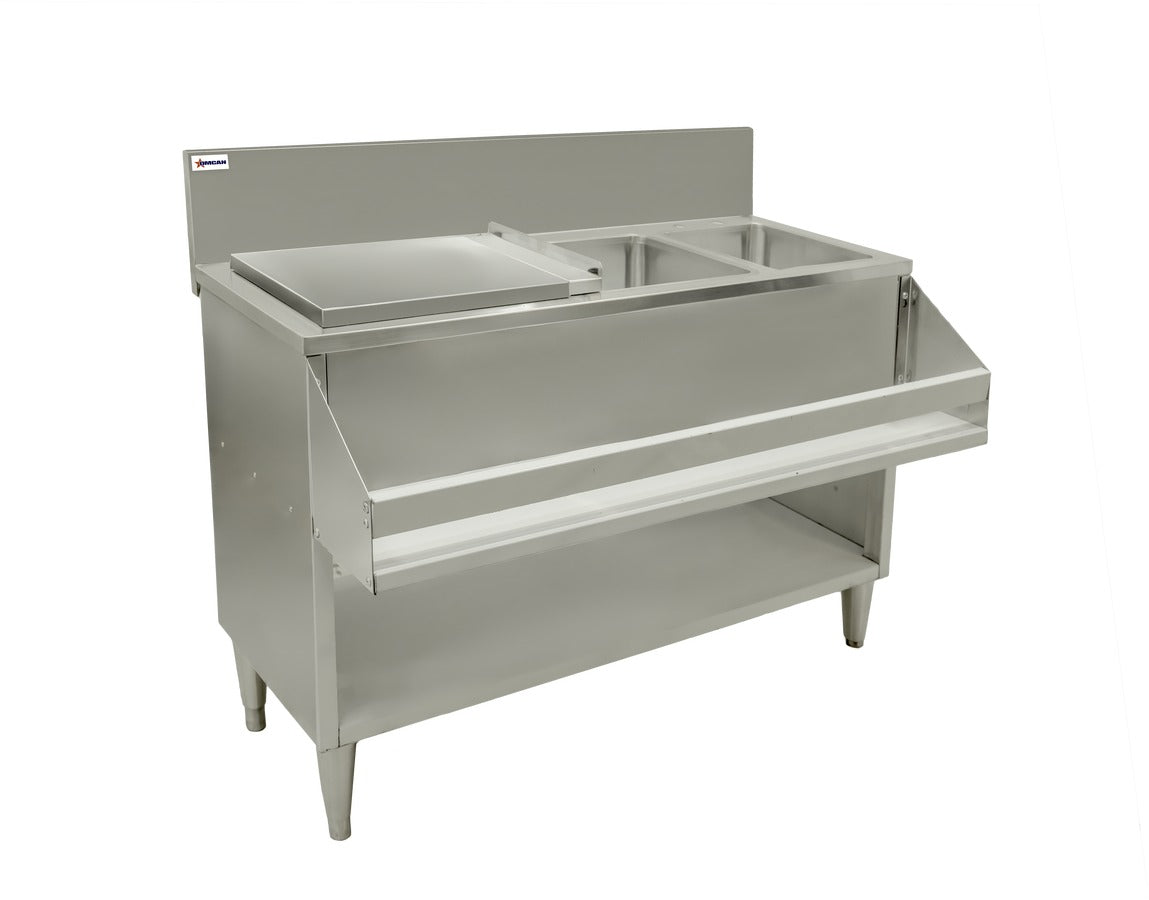

The Omcan 48138 Cocktail Mix Unit
This Omcan cocktail mix unit puts a 48 inch all-in-one drink station behind the bar: a 32 inch drop-in ice bin with a sliding cover on one side, a 10 x 12 inch wet waste sink on the other, a speed rail across the front, and an undershelf below. At 48 inches wide it is the middle of the three widths this station comes in. The 7 inch backsplash runs the full width behind the top. The top sits at 30 inches with a 37 inch overall height, and the whole unit is stainless steel construction. Two faucet holes are punched on 4 inch centers behind the sink for a faucet, which is not included, so rough in water and drain lines at the station before installation.
A 32 Inch Ice Bin with a Sliding Cover
The bin bowl runs 32 inches wide by 12 inches front to back by 10 inches deep, so you never run out of ice during busy shifts, whether the bar serves alcoholic or non-alcoholic drinks. A sliding cover closes over the bin, and the bin drains through its own 3/4 inch outlet set 3 inches in from the bowl's rear and right edges.

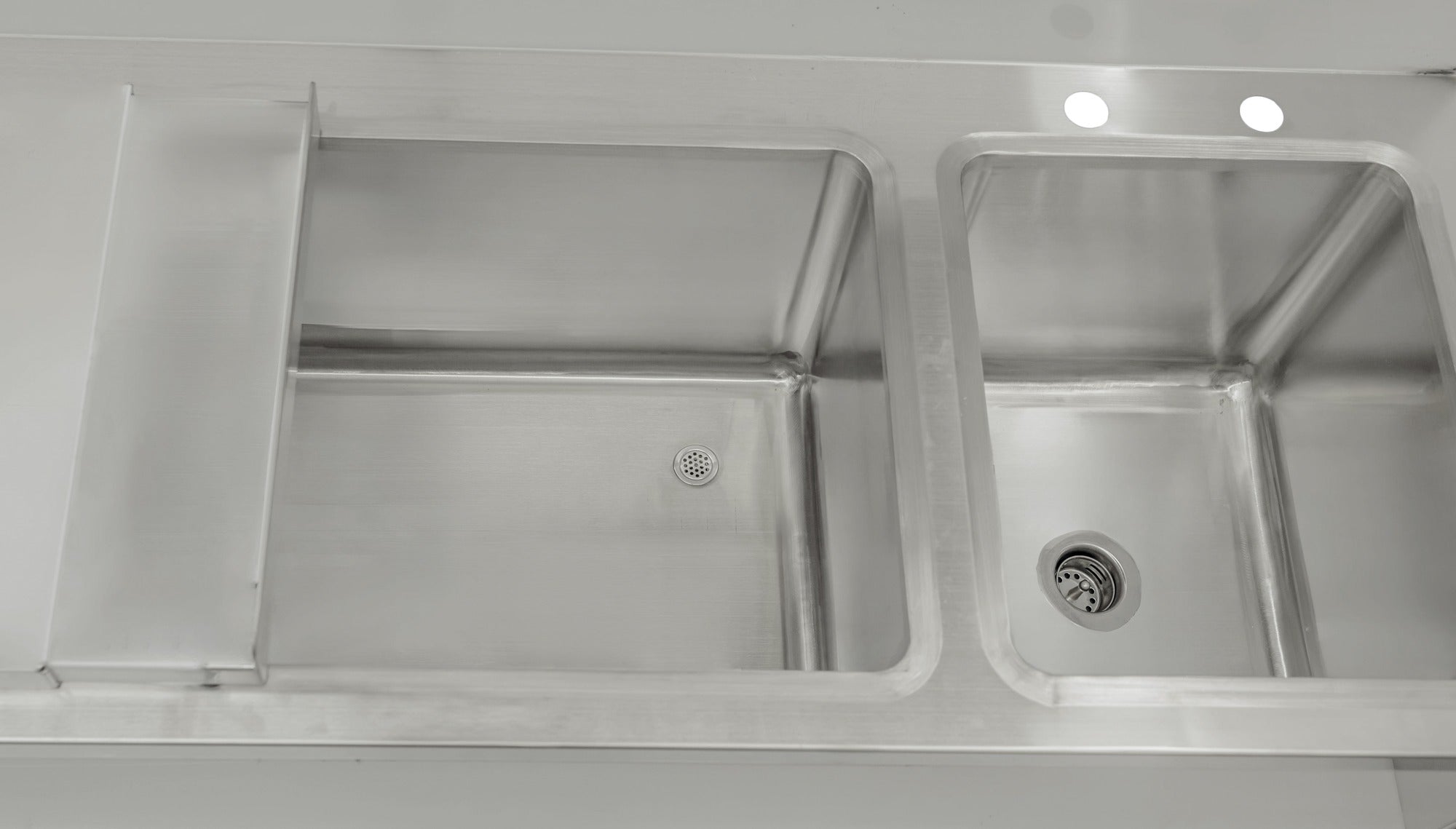

A Wet Waste Sink Right at the Station
The 10 x 12 inch hand sink, 10 inches deep with a 1-3/4 inch drain, sits 1-1/2 inches back from the front edge of the top and helps keep the counter tidy. Two 1 inch faucet holes on 4 inch centers sit behind the sink.
Speed Rail and Undershelf Included in the Frame
An integrated rail across the front projects 7 inches from the body, with a 5 inch front face, and the rail assembly drops 10 inches from the top surface. Below, the open-front cabinet carries an undershelf at its base and stands on 6 inch legs.
A 7 Inch Backsplash and a 30 Inch Work Top
The 7 inch backsplash stands above the rear of the top, and the stainless steel body takes the work top to 30 inches with 37 inches overall. The same station comes in 36 and 60 inch widths, items 48618 and 48619.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
All-in-one cocktail station combining covered ice bin, wet waste sink, speed rail, and undershelf in one 48 inch frame
-
Sliding cover closes over the drop-in ice bin
-
Hand sink in the wet waste top helps keep the counter tidy
-
Integrated front speed rail projects 7 inches from the body
-
Open-front cabinet with an undershelf at its base
-
7 inch backsplash runs the full width behind the top
-
Two faucet holes punched on 4 inch centers behind the sink, faucet not included
-
Separate drain outlets for the ice bin and the sink
-
Stainless steel construction throughout
-
Available in 36, 48 and 60 inch widths
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
All-in-one cocktail station combining covered ice bin, wet waste sink, speed rail, and undershelf in one 48 inch frame
Sliding cover closes over the drop-in ice bin
Hand sink in the wet waste top helps keep the counter tidy
Integrated front speed rail projects 7 inches from the body
Open-front cabinet with an undershelf at its base
The Omcan 48138 Cocktail Mix Unit
This Omcan cocktail mix unit puts a 48 inch all-in-one drink station behind the bar: a 32 inch drop-in ice bin with a sliding cover on one side, a 10 x 12 inch wet waste sink on the other, a speed rail across the front, and an undershelf below. At 48 inches wide it is the middle of the three widths this station comes in. The 7 inch backsplash runs the full width behind the top. The top sits at 30 inches with a 37 inch overall height, and the whole unit is stainless steel construction. Two faucet holes are punched on 4 inch centers behind the sink for a faucet, which is not included, so rough in water and drain lines at the station before installation.
A 32 Inch Ice Bin with a Sliding Cover
The bin bowl runs 32 inches wide by 12 inches front to back by 10 inches deep, so you never run out of ice during busy shifts, whether the bar serves alcoholic or non-alcoholic drinks. A sliding cover closes over the bin, and the bin drains through its own 3/4 inch outlet set 3 inches in from the bowl's rear and right edges.
A Wet Waste Sink Right at the Station
The 10 x 12 inch hand sink, 10 inches deep with a 1-3/4 inch drain, sits 1-1/2 inches back from the front edge of the top and helps keep the counter tidy. Two 1 inch faucet holes on 4 inch centers sit behind the sink.
Speed Rail and Undershelf Included in the Frame
An integrated rail across the front projects 7 inches from the body, with a 5 inch front face, and the rail assembly drops 10 inches from the top surface. Below, the open-front cabinet carries an undershelf at its base and stands on 6 inch legs.
A 7 Inch Backsplash and a 30 Inch Work Top
The 7 inch backsplash stands above the rear of the top, and the stainless steel body takes the work top to 30 inches with 37 inches overall. The same station comes in 36 and 60 inch widths, items 48618 and 48619.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
All-in-one cocktail station combining covered ice bin, wet waste sink, speed rail, and undershelf in one 48 inch frame
-
Sliding cover closes over the drop-in ice bin
-
Hand sink in the wet waste top helps keep the counter tidy
-
Integrated front speed rail projects 7 inches from the body
-
Open-front cabinet with an undershelf at its base
-
7 inch backsplash runs the full width behind the top
-
Two faucet holes punched on 4 inch centers behind the sink, faucet not included
-
Separate drain outlets for the ice bin and the sink
-
Stainless steel construction throughout
-
Available in 36, 48 and 60 inch widths
Resources & Downloads
See all from Omcan
Specifications
| Ice Bin Size | 32 x 12 x 10 in |
| Ice Bin Cover | Sliding, included |
| Ice Bin Drain | 3/4 in |
| Sink Size | 10 x 12 in |
| Sink Depth | 10 in |
| Sink Drain | 1-3/4 in |
| Sink Setback From Front Edge | 1-1/2 in |
| Faucet Holes | 2, faucet not included |
| Faucet Hole Diameter | 1 in |
| Faucet Hole Spacing | 4 in centers |
| Speed Rail | Front, integrated |
| Speed Rail Projection | 7 in |
| Speed Rail Front Face Height | 5 in |
| Undershelf | Included, at cabinet base |
| Leg Height | 6 in |
| Material | Stainless steel |
| Backsplash Height | 7 in |
| Work Surface Height | 30 in |
| Overall Width | 48 in |
| Overall Depth | 24 in |
| Overall Height | 37 in |
Manufacturer's Warranty
-
6 Month
Labor
-
6 Month
Parts
