The Omcan 48140 Grease Trap
This Omcan grease trap prevents grease from entering the building plumbing system, septic fields, and wastewater facilities. It is sized at 50 pounds of grease capacity with a 25 gallon per minute flow rating, and it serves cooking or prep sinks, pot sinks, or a commercial dishwasher in commercial food service operations. Plan the rough-in before ordering: the inlet and outlet are 4 inch threaded connections, the unit can sit on the floor, sit partially recessed, or recess flush with the floor, and it should be installed as close as possible to the fixture it serves. The unit measures 33 x 24-1/2 inches across the lid over a 31-1/2 x 23 inch body and stands 21-3/4 inches tall, so check clearance under or beside the sink it will serve.
50-Pound Grease Capacity at 25 GPM
The trap is rated for 50 pounds of grease and a flow of 25 gallons per minute. That rating assumes a vented flow control with a properly sized orifice, which comes with the unit, installed as close as possible under the fixture, with its vent piped higher than the water source or to the building vent system; without it, grease can bypass the trap. Solids belong in a sink strainer or solids interceptor upstream, not in the grease trap.
11-Gauge Cold Rolled Steel with Baked Epoxy Coating
The tank is made from 11-gauge cold rolled steel finished in an oven-cured, acid-resistant baked gray epoxy coating, and it is built to last through daily commercial use.
4 Inch Threaded Inlet and Outlet

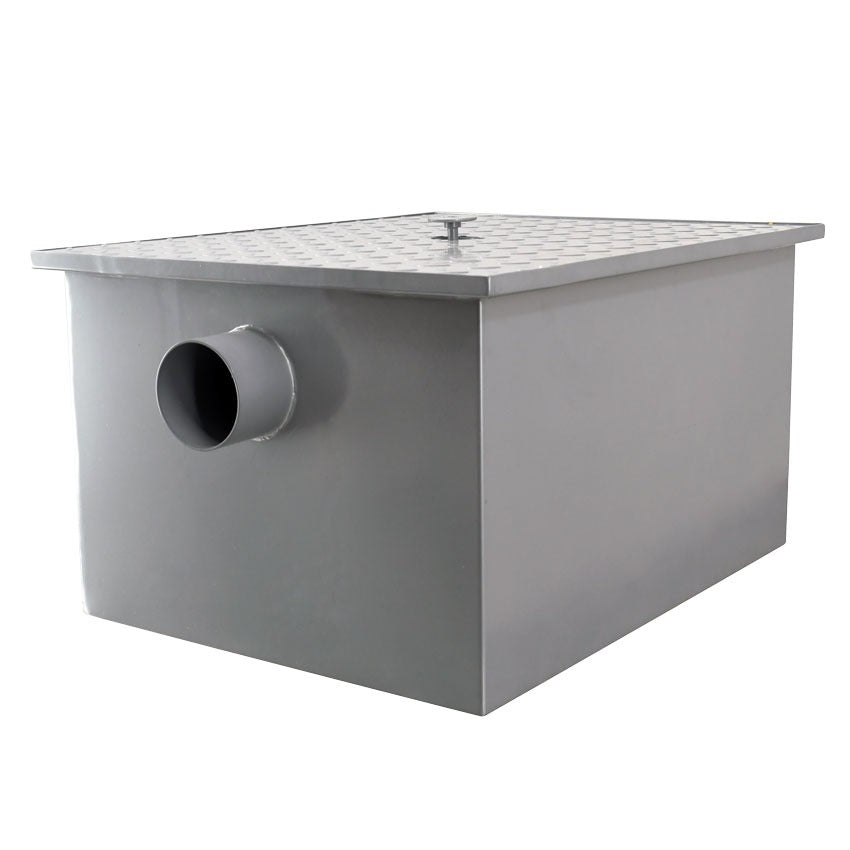

Both ports are 4 inch threaded connections with a 4 inch (102 mm) inside diameter, projecting 2-1/2 inches beyond the body at each end. Set the inlet below the horizontal drain piping coming from the fixture, make the connections with no-hub couplings, fit the cleanout plug over the outlet, and run the outlet to the sanitary drain in pipe at least as large as the inlet, vented so the trap is not siphoned. A cleanout tee ahead of the flow control makes it easy to clear the orifice.
Recess Mount or Floor Mount Installation

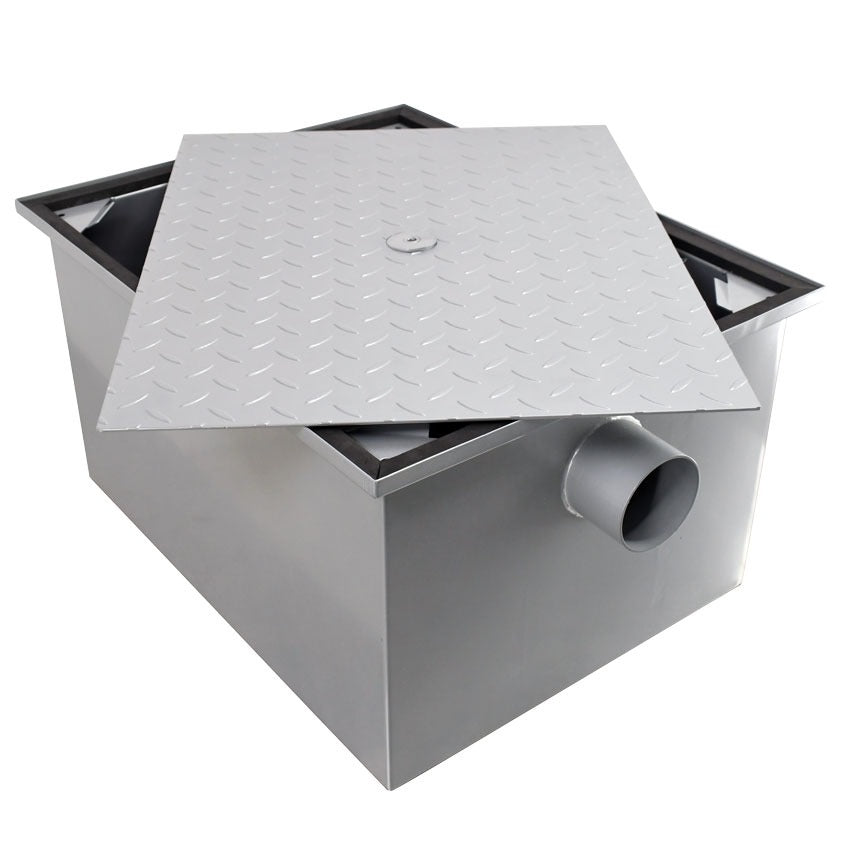

Set the trap directly on the floor beside the fixture it serves, partially recess it, or recess it so the top sits flush with the floor. Either way, leave access above the cover for removal and cleaning. Check the trap daily at first until the grease layer reaches 2 to 3 inches, then clean it at that interval: remove the cover, clear the remaining grease, flush with water, spray out the outlet chamber through its cleanout plug, and inspect the cover gasket before refitting the cover.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Grease interceptor for cooking sinks, prep sinks, pot sinks, and commercial dishwashers
-
Keeps grease out of the building plumbing, septic field, and wastewater facilities
-
Holds up to 50 pounds of trapped grease between cleanings
-
Rated for a 25 gallon per minute flow with the supplied vented flow control in place
-
11-gauge cold rolled steel construction, built to last
-
Oven-cured, acid-resistant baked gray epoxy coating
-
Threaded 4 inch inlet and outlet
-
Installs on the floor, partially recessed, or recessed with the top flush with the floor
-
Two 2 inch diameter openings in the lid
-

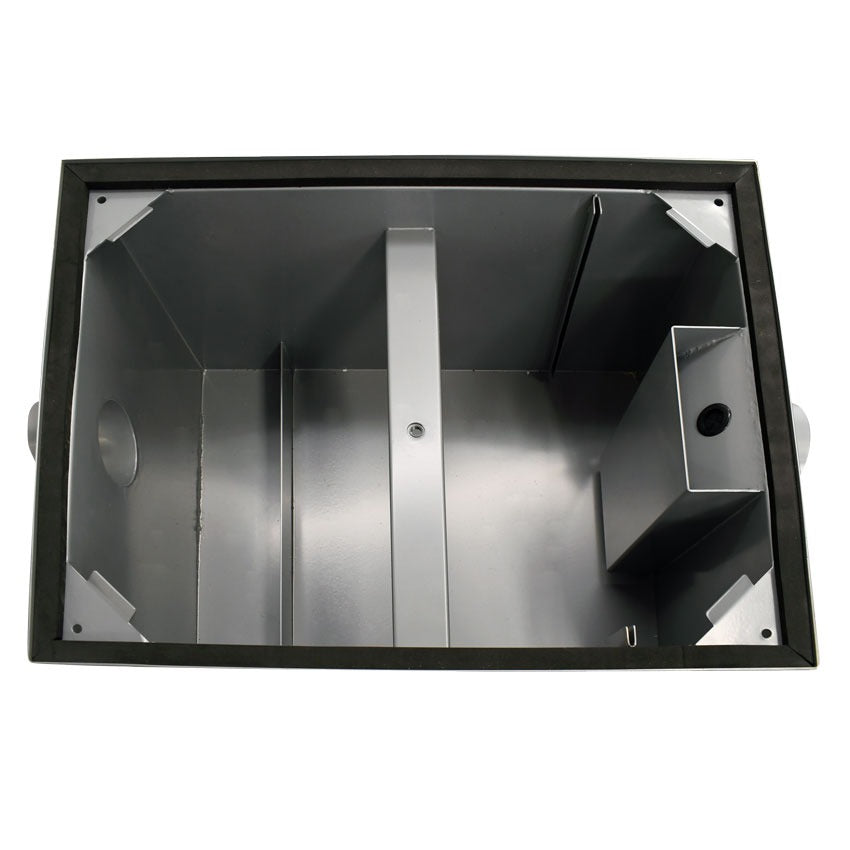

Separate outlet chamber with its own cleanout plug for flushing
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Grease interceptor for cooking sinks, prep sinks, pot sinks, and commercial dishwashers
Keeps grease out of the building plumbing, septic field, and wastewater facilities
Holds up to 50 pounds of trapped grease between cleanings
Rated for a 25 gallon per minute flow with the supplied vented flow control in place
11-gauge cold rolled steel construction, built to last
The Omcan 48140 Grease Trap
This Omcan grease trap prevents grease from entering the building plumbing system, septic fields, and wastewater facilities. It is sized at 50 pounds of grease capacity with a 25 gallon per minute flow rating, and it serves cooking or prep sinks, pot sinks, or a commercial dishwasher in commercial food service operations. Plan the rough-in before ordering: the inlet and outlet are 4 inch threaded connections, the unit can sit on the floor, sit partially recessed, or recess flush with the floor, and it should be installed as close as possible to the fixture it serves. The unit measures 33 x 24-1/2 inches across the lid over a 31-1/2 x 23 inch body and stands 21-3/4 inches tall, so check clearance under or beside the sink it will serve.
50-Pound Grease Capacity at 25 GPM
The trap is rated for 50 pounds of grease and a flow of 25 gallons per minute. That rating assumes a vented flow control with a properly sized orifice, which comes with the unit, installed as close as possible under the fixture, with its vent piped higher than the water source or to the building vent system; without it, grease can bypass the trap. Solids belong in a sink strainer or solids interceptor upstream, not in the grease trap.
11-Gauge Cold Rolled Steel with Baked Epoxy Coating
The tank is made from 11-gauge cold rolled steel finished in an oven-cured, acid-resistant baked gray epoxy coating, and it is built to last through daily commercial use.
4 Inch Threaded Inlet and Outlet
Both ports are 4 inch threaded connections with a 4 inch (102 mm) inside diameter, projecting 2-1/2 inches beyond the body at each end. Set the inlet below the horizontal drain piping coming from the fixture, make the connections with no-hub couplings, fit the cleanout plug over the outlet, and run the outlet to the sanitary drain in pipe at least as large as the inlet, vented so the trap is not siphoned. A cleanout tee ahead of the flow control makes it easy to clear the orifice.
Recess Mount or Floor Mount Installation
Set the trap directly on the floor beside the fixture it serves, partially recess it, or recess it so the top sits flush with the floor. Either way, leave access above the cover for removal and cleaning. Check the trap daily at first until the grease layer reaches 2 to 3 inches, then clean it at that interval: remove the cover, clear the remaining grease, flush with water, spray out the outlet chamber through its cleanout plug, and inspect the cover gasket before refitting the cover.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Grease interceptor for cooking sinks, prep sinks, pot sinks, and commercial dishwashers
-
Keeps grease out of the building plumbing, septic field, and wastewater facilities
-
Holds up to 50 pounds of trapped grease between cleanings
-
Rated for a 25 gallon per minute flow with the supplied vented flow control in place
-
11-gauge cold rolled steel construction, built to last
-
Oven-cured, acid-resistant baked gray epoxy coating
-
Threaded 4 inch inlet and outlet
-
Installs on the floor, partially recessed, or recessed with the top flush with the floor
-
Two 2 inch diameter openings in the lid
-
Separate outlet chamber with its own cleanout plug for flushing
Resources & Downloads
See all from Omcan
Specifications
| Grease Capacity | 50 lb (23 kg) |
| Flow Rate | 25 GPM (94.6 L per minute) |
| Inlet and Outlet Size | 4 in (102 mm) |
| Connection Type | Threaded |
| Flow Control | Vented, with sized orifice, supplied |
| Cover | Removable, gasketed |
| Lid Openings | 2, each 2 in (50 mm) diameter |
| Port Inside Diameter | 4 in (102 mm) |
| Outlet Chamber Cleanout | Plug |
| Lid Length | 33 in (840 mm) |
| Lid Width | 24-1/2 in (624 mm) |
| Body Length | 31-1/2 in (800 mm) |
| Body Width | 23 in (584 mm) |
| Overall Height | 21-3/4 in (554 mm) |
| Inlet and Outlet Projection Beyond Body | 2-1/2 in (65 mm) |
| Inlet and Outlet Position | Centered on body width |
| Material | 11-gauge cold rolled steel |
| Finish | Baked gray epoxy, oven-cured, acid resistant |
| Installation | Floor, partially recessed, or flush recessed |
| Application | Cooking, prep, or pot sinks; dishwashers |
| Net Weight | 173.8 lb (79 kg) |
Manufacturer's Warranty
-
6 Month
