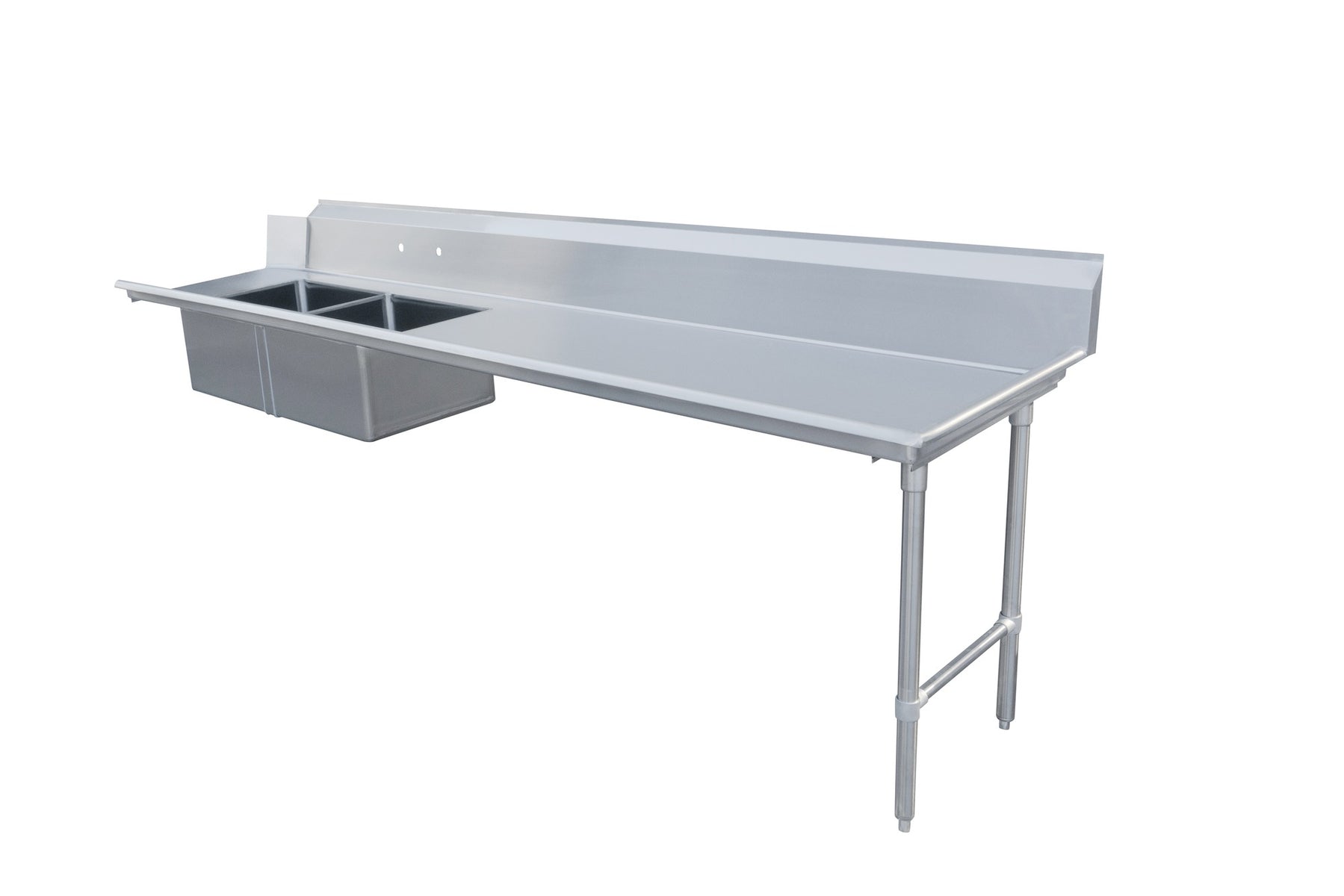

The Omcan 48494 Soiled Dish Table
This Omcan soiled dishtable puts two 20 by 20 inch pre-rinse sinks on the inlet side of your dish machine, where plates get scraped and sprayed down before they rack into the machine. The table runs 120 inches along the wall with 68 inches of open deck at the loading end, and the twin bowls sit 12 inches off the dishwasher end. Both 3-1/2 inch drain baskets come included. This is the right side version, built to sit on the right side of your dish machine; a left side version is available under item 48493. The top is 30 inches deep and the table stands 43-3/4 inches to the top of the backsplash, so measure the wall run on the soiled side of your machine and confirm the depth clears your aisle before you commit to the 120 inch length.
Two 20 by 20 Inch Pre-Rinse Sinks, 12 Inches Deep
Each bowl measures 20 by 20 inches and runs 12 inches deep, with a 2 inch divider between the two bowls and 1-1/2 inches of deck between the bowls and the front edge. Both bowls drain through 3-1/2 inch openings, and a 3-1/2 inch drain basket is included for each one.
16-Gauge Type 304 Stainless Steel Construction
The table is built from 16-gauge type 304 stainless steel, with a 3 inch front apron along the length of the top and an angled corner cut-out at the dishwasher end. 68 inches of flat deck run from the outer end to the first bowl, and a 12 inch flat separates the second bowl from the dishwasher end.
10-3/4-Inch Backsplash with a 2-Inch Return
A 10-3/4 inch backsplash runs 114-3/4 inches along the back of the top, with a 2 inch return at the top. Two 1-1/8 inch faucet holes are punched in the backsplash on 8 inch centers, 5 inches above the deck, the nearer one 84 inches from the outer end of the table, so the table takes a faucet with 8 inch centers.
Bullet-Foot Legs with Stainless Steel Bracing
The table stands on 1-5/8 inch tube legs finished with stainless steel bullet feet and tied together by stainless steel leg bracing, with the legs set 18-7/8 inches apart front to back.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Soiled-side dishtable with two pre-rinse sinks on a 120 inch wall run for the inlet side of the dish machine
-
Twin 20 by 20 inch bowls, each 12 inches deep, separated by a 2 inch divider
-
A 3-1/2 inch drain basket is included for each bowl
-
68 inches of open deck at the loading end and a 12 inch flat between the bowls and the dishwasher end
-
Two 1-1/8 inch faucet holes punched in the backsplash on 8 inch centers, 5 inches above the deck
-
10-3/4 inch backsplash with a 2 inch return at the top
-
16-gauge type 304 stainless steel construction with a 3 inch front apron
-
Stainless steel leg bracing and stainless steel bullet feet on 1-5/8 inch tube legs
-
Angled corner cut-out at the dishwasher end
-
Built as the right side unit to sit on the right side of the dish machine; the left side unit is item 48493
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Soiled-side dishtable with two pre-rinse sinks on a 120 inch wall run for the inlet side of the dish machine
Twin 20 by 20 inch bowls, each 12 inches deep, separated by a 2 inch divider
A 3-1/2 inch drain basket is included for each bowl
68 inches of open deck at the loading end and a 12 inch flat between the bowls and the dishwasher end
Two 1-1/8 inch faucet holes punched in the backsplash on 8 inch centers, 5 inches above the deck
The Omcan 48494 Soiled Dish Table
This Omcan soiled dishtable puts two 20 by 20 inch pre-rinse sinks on the inlet side of your dish machine, where plates get scraped and sprayed down before they rack into the machine. The table runs 120 inches along the wall with 68 inches of open deck at the loading end, and the twin bowls sit 12 inches off the dishwasher end. Both 3-1/2 inch drain baskets come included. This is the right side version, built to sit on the right side of your dish machine; a left side version is available under item 48493. The top is 30 inches deep and the table stands 43-3/4 inches to the top of the backsplash, so measure the wall run on the soiled side of your machine and confirm the depth clears your aisle before you commit to the 120 inch length.
Two 20 by 20 Inch Pre-Rinse Sinks, 12 Inches Deep
Each bowl measures 20 by 20 inches and runs 12 inches deep, with a 2 inch divider between the two bowls and 1-1/2 inches of deck between the bowls and the front edge. Both bowls drain through 3-1/2 inch openings, and a 3-1/2 inch drain basket is included for each one.
16-Gauge Type 304 Stainless Steel Construction
The table is built from 16-gauge type 304 stainless steel, with a 3 inch front apron along the length of the top and an angled corner cut-out at the dishwasher end. 68 inches of flat deck run from the outer end to the first bowl, and a 12 inch flat separates the second bowl from the dishwasher end.
10-3/4-Inch Backsplash with a 2-Inch Return
A 10-3/4 inch backsplash runs 114-3/4 inches along the back of the top, with a 2 inch return at the top. Two 1-1/8 inch faucet holes are punched in the backsplash on 8 inch centers, 5 inches above the deck, the nearer one 84 inches from the outer end of the table, so the table takes a faucet with 8 inch centers.
Bullet-Foot Legs with Stainless Steel Bracing
The table stands on 1-5/8 inch tube legs finished with stainless steel bullet feet and tied together by stainless steel leg bracing, with the legs set 18-7/8 inches apart front to back.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Soiled-side dishtable with two pre-rinse sinks on a 120 inch wall run for the inlet side of the dish machine
-
Twin 20 by 20 inch bowls, each 12 inches deep, separated by a 2 inch divider
-
A 3-1/2 inch drain basket is included for each bowl
-
68 inches of open deck at the loading end and a 12 inch flat between the bowls and the dishwasher end
-
Two 1-1/8 inch faucet holes punched in the backsplash on 8 inch centers, 5 inches above the deck
-
10-3/4 inch backsplash with a 2 inch return at the top
-
16-gauge type 304 stainless steel construction with a 3 inch front apron
-
Stainless steel leg bracing and stainless steel bullet feet on 1-5/8 inch tube legs
-
Angled corner cut-out at the dishwasher end
-
Built as the right side unit to sit on the right side of the dish machine; the left side unit is item 48493
Resources & Downloads
See all from Omcan
Specifications
| Table Type | Soiled dishtable |
| Side | Right |
| Overall Width | 120 in |
| Overall Depth | 30 in |
| Overall Height | 43-3/4 in |
| Sink Bowls | 2 |
| Sink Bowl Size | 20 x 20 in |
| Sink Bowl Depth | 12 in |
| Bowl Divider | 2 in |
| Sink Setback from Front Edge | 1-1/2 in |
| Drain Size | 3-1/2 in |
| Drain Baskets | (2) 3-1/2 in, included |
| Open Deck, Outer End to First Bowl | 68 in |
| Sink to Dishwasher End | 12 in |
| Corner Cut-Out | Angled, dishwasher end |
| Faucet Holes | 2, in backsplash |
| Faucet Hole Diameter | 1-1/8 in |
| Faucet Hole Spacing | 8 in centers |
| Faucet Hole Height | 5 in above deck |
| Nearest Faucet Hole from Outer End | 84 in |
| Backsplash Height | 10-3/4 in |
| Backsplash Length | 114-3/4 in |
| Backsplash Return | 2 in |
| Front Apron Depth | 3 in |
| Material | 16-gauge type 304 stainless steel |
| Legs | 1-5/8 in stainless steel tube, bullet feet |
| Leg Bracing | Stainless steel |
| Leg Spacing, Front to Back | 18-7/8 in |
Manufacturer's Warranty
-
6 Month
Warranty
Certifications & Approvals
-
NSF Approved
