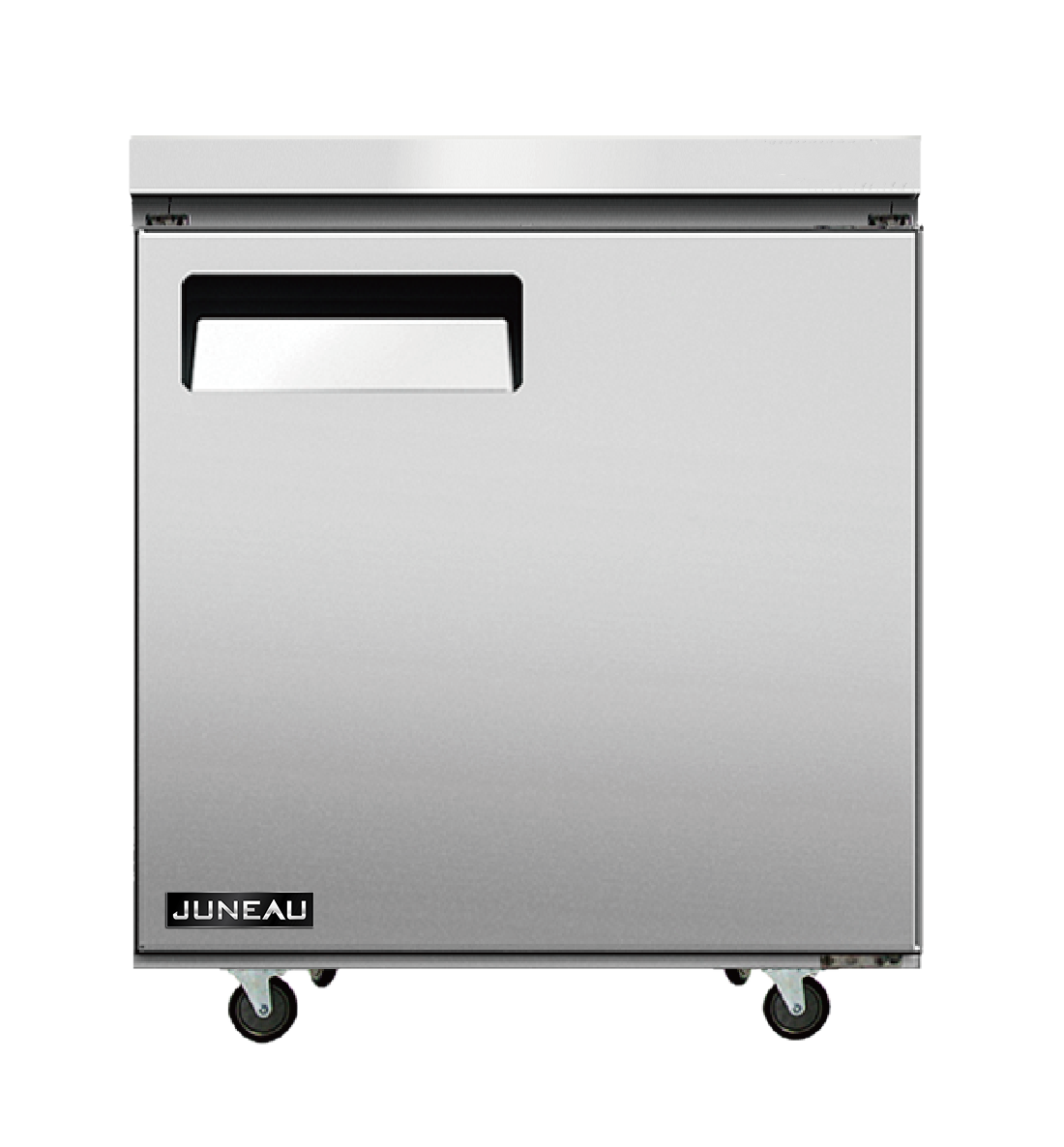

The Omcan 58010 Undercounter Refrigerator
The Omcan RE-TH-0006-HC is a 28-inch single door undercounter refrigerator from the Juneau series, designed for stations where counter space is premium and cold storage needs to be within arm's reach. At just under 28 inches wide with a single door, it slides under a standard prep table or counter and puts 3.4 cubic feet of refrigerated space right where your line cooks need it. Think a bar keeping garnishes and mixers cold below the rail, or a pizza station storing cheese and prepped toppings directly under the make line.
Food-Grade 304 Stainless Steel Interior with Round-Corner Design
The interior cavity uses food-grade 304 stainless steel throughout. This is the same alloy specified for direct food-contact surfaces in processing plants because it resists pitting from acidic spills, salt exposure, and repeated sanitizer applications that degrade lower-grade steels over time. The interior corners are rounded rather than welded at sharp angles, eliminating the seams where moisture collects and bacteria can take hold. End-of-shift wipedowns go faster because there are no corners to scrub out with a brush, just a smooth, continuous surface that a single cloth pass handles.
Back-Mounted Ventilated Cooling with R290 Refrigerant
The compressor and condenser mount on the back panel rather than beneath the cabinet, keeping critical components above the splash zone where floor mops, grease runoff, and kicked debris damage bottom-mounted systems. Fan-cooled ventilation actively pulls air across the coils, so the unit holds its 33 to 40°F (0.5 to 39°C) range steadily even when kitchen ambient temperatures spike during rush periods. The R290 hydrocarbon refrigerant has a global warming potential of just 3 versus 1,430 for R-134a, and it transfers heat more efficiently, meaning the compressor runs shorter cycles to maintain temperature. Shorter cycles mean lower electricity costs and less mechanical wear over the life of the unit.
Elitech Digital Controller and Adjustable PVC-Coated Shelving
An Elitech digital controller displays the live cavity temperature and accepts precise setpoint adjustments at the push of a button. There is no ambiguity about whether your holding temperature is in the safe zone. The adjustable PVC-coated wire shelves let you reconfigure the interior height to match your actual inventory. Tall cambro containers, stacked sixth pans, and sheet trays all fit properly when you can move shelves to accommodate them rather than forcing everything into fixed slots. Four pre-installed casters (two with brakes) make it easy to roll the unit out for deep cleaning behind the line, then lock it back in position for service. At just 510W, the unit draws less power than many comparable undercounter refrigerators, keeping operating costs in check even with continuous 24-hour operation.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Slides under a standard counter to keep cold ingredients within arm’s reach at prep stations and bars
-
3.4 cu. ft. behind a single solid stainless steel door fits tight kitchens and narrow prep lines
-
Maintains 33-40°F (0.525°C) with Elitech digital push-button controller for precise readings
-
Food-grade 304 stainless steel interior with rounded corners simplifies sanitizing
-
Heavy-duty adjustable PVC-coated wire shelves hold prep containers and sheet pans
-
Back-mounted fan-cooled system circulates cold air evenly throughout the cabinet
-
R290 refrigerant provides efficient cooling with zero ozone depletion
-
Pre-installed lockable casters (2 with brakes) roll for cleaning and lock during service
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Slides under a standard counter to keep cold ingredients within arm’s reach at prep stations and bars
3.4 cu. ft. behind a single solid stainless steel door fits tight kitchens and narrow prep lines
Maintains 33-40°F (0.525°C) with Elitech digital push-button controller for precise readings
Food-grade 304 stainless steel interior with rounded corners simplifies sanitizing
Heavy-duty adjustable PVC-coated wire shelves hold prep containers and sheet pans
The Omcan 58010 Undercounter Refrigerator
The Omcan RE-TH-0006-HC is a 28-inch single door undercounter refrigerator from the Juneau series, designed for stations where counter space is premium and cold storage needs to be within arm's reach. At just under 28 inches wide with a single door, it slides under a standard prep table or counter and puts 3.4 cubic feet of refrigerated space right where your line cooks need it. Think a bar keeping garnishes and mixers cold below the rail, or a pizza station storing cheese and prepped toppings directly under the make line.
Food-Grade 304 Stainless Steel Interior with Round-Corner Design
The interior cavity uses food-grade 304 stainless steel throughout. This is the same alloy specified for direct food-contact surfaces in processing plants because it resists pitting from acidic spills, salt exposure, and repeated sanitizer applications that degrade lower-grade steels over time. The interior corners are rounded rather than welded at sharp angles, eliminating the seams where moisture collects and bacteria can take hold. End-of-shift wipedowns go faster because there are no corners to scrub out with a brush, just a smooth, continuous surface that a single cloth pass handles.
Back-Mounted Ventilated Cooling with R290 Refrigerant
The compressor and condenser mount on the back panel rather than beneath the cabinet, keeping critical components above the splash zone where floor mops, grease runoff, and kicked debris damage bottom-mounted systems. Fan-cooled ventilation actively pulls air across the coils, so the unit holds its 33 to 40°F (0.5 to 39°C) range steadily even when kitchen ambient temperatures spike during rush periods. The R290 hydrocarbon refrigerant has a global warming potential of just 3 versus 1,430 for R-134a, and it transfers heat more efficiently, meaning the compressor runs shorter cycles to maintain temperature. Shorter cycles mean lower electricity costs and less mechanical wear over the life of the unit.
Elitech Digital Controller and Adjustable PVC-Coated Shelving
An Elitech digital controller displays the live cavity temperature and accepts precise setpoint adjustments at the push of a button. There is no ambiguity about whether your holding temperature is in the safe zone. The adjustable PVC-coated wire shelves let you reconfigure the interior height to match your actual inventory. Tall cambro containers, stacked sixth pans, and sheet trays all fit properly when you can move shelves to accommodate them rather than forcing everything into fixed slots. Four pre-installed casters (two with brakes) make it easy to roll the unit out for deep cleaning behind the line, then lock it back in position for service. At just 510W, the unit draws less power than many comparable undercounter refrigerators, keeping operating costs in check even with continuous 24-hour operation.
About Omcan
For over 74 years, Omcan has been a trusted name in the foodservice industry across Canada and the United States. Built on consistency, credibility, and long-standing customer relationships, Omcan offers a dependable range of products to support a wide range of operations. With a global network and localized service, the brand delivers complete solutions—from smallwares to advanced equipment. In 2024, Omcan introduced the Trento brand, representing a curated lineup of European foodservice equipment available exclusively in North America. Whether supporting independent operators or institutional kitchens, Omcan is focused on practical performance and reliable service.
Features & Benefits
-
Slides under a standard counter to keep cold ingredients within arm’s reach at prep stations and bars
-
3.4 cu. ft. behind a single solid stainless steel door fits tight kitchens and narrow prep lines
-
Maintains 33-40°F (0.525°C) with Elitech digital push-button controller for precise readings
-
Food-grade 304 stainless steel interior with rounded corners simplifies sanitizing
-
Heavy-duty adjustable PVC-coated wire shelves hold prep containers and sheet pans
-
Back-mounted fan-cooled system circulates cold air evenly throughout the cabinet
-
R290 refrigerant provides efficient cooling with zero ozone depletion
-
Pre-installed lockable casters (2 with brakes) roll for cleaning and lock during service
Resources & Downloads
See all from Omcan
Specifications
| Net Volume | 3.4 cu. ft. |
| Number of Doors | 1 |
| Temperature Range | 33 to 40°F (0.5 to 39°C) |
| Temperature Controller | Elitech |
| Cooling System | Fan cooling (ventilated) |
| Refrigerant | R290 |
| Climate Type | ST |
| Interior Material | Food-Grade 304 Stainless Steel |
| Interior Design | Round-corner, seamless |
| Exterior Material | Stainless Steel |
| Shelving | Heavy-duty adjustable PVC-coated wire shelves |
| Rated Power | 510W |
| Electrical | 115V / 60Hz / 1Ph |
| Compressor Location | Back-mounted |
| Casters | 4 wheels (2 with brakes) |
| Lock | No |
| Overall Dimensions (W x D x H) | 27.6 x 30.1 x 35.9 in. |
| Plug Type | NEMA 5-15P |
Manufacturer's Warranty
-
2 Year
Labor
-
2 Year
Parts
-
5 Year
Compressor
