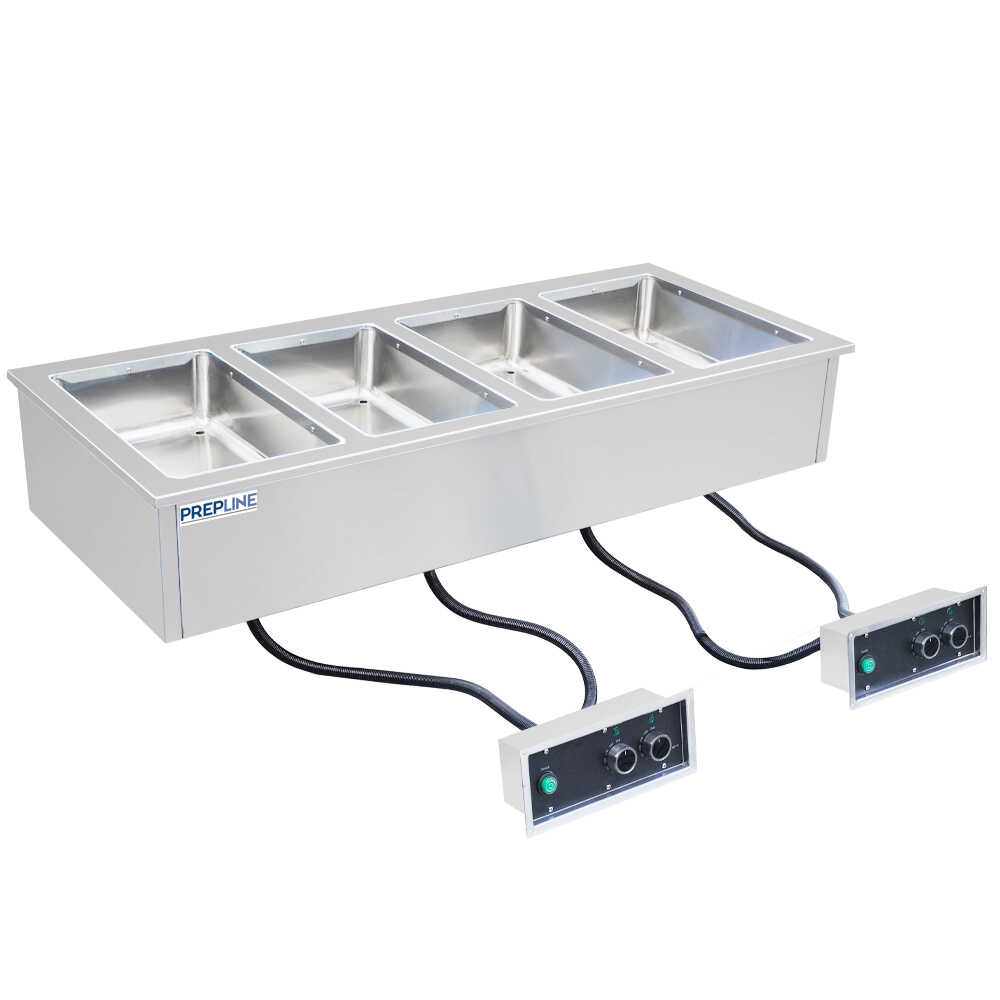

Prepline HFW4 Four Pan Electric Drop-In Hot Food Well, Sealed Wells, Independent Infinite Controls, 208/240V

The Prepline HFW4 is a four pan electric drop-in hot food well for buffet lines, carving stations, cafeteria counters, and catering serving walls. It drops into a counter cutout and disappears into the millwork, leaving a flush stainless steel top with four full size pan openings where guests only see food, never equipment. Each well accepts a standard 12 x 20 inch pan or any combination of fractional pans that fills the same opening, so one unit serves a full hot line straight out of the pans the food was prepped in. Holding temperatures run from 140°F to 210°F, covering everything from held vegetables to soups at a serving simmer.

Infinite Heat Control with Indicator Light

Each of the four wells runs on its own infinite control knob with an indicator light, so mashed potatoes can idle at a gentle hold while the marinara next to it stays at a proper simmer temperature. Independent controls are what separate a real serving line from a single-thermostat unit that forces every product to the same setting. The knobs mount in a remote control panel on a flexible lead, so they land wherever the counter fabricator needs them, facing the server side and away from guest hands.

Sealed 304 Stainless Steel Wells

The top and each well are formed from 18 gauge type 304 stainless steel, the grade that shrugs off steam, salt, and acidic drippings that corrode lighter 430-series metal. Each well is sealed, so spills and condensate stay inside the vessel instead of leaking into the counter cavity below, the failure that ruins laminate millwork around cheaper open-frame warmers. A 20 gauge type 430 stainless steel apron and back panel close off the underside, and fiberglass insulation keeps the heat in the food instead of radiating into the cabinet.

Built-In Water Drain

Every well drains through a built-in 1 inch corner drain, which changes closedown from bailing hot spillage water with a pitcher to opening a valve. For wet holding, fill each well with water for gentle, even bain marie heat; for dry holding, run them empty. Either way the drain empties the vessel in minutes at the end of service.

Drop-In Installation

The unit needs a 23.5" x 57.63" counter cutout and a pair of 72 inch cords to reach power, and the whole assembly sits 58.5 inches wide by 10 inches deep below the counter line. Because the heat stays in insulated, sealed wells, the surrounding counter stays usable as landing space for plates and serving tools right up to the pan flange.
