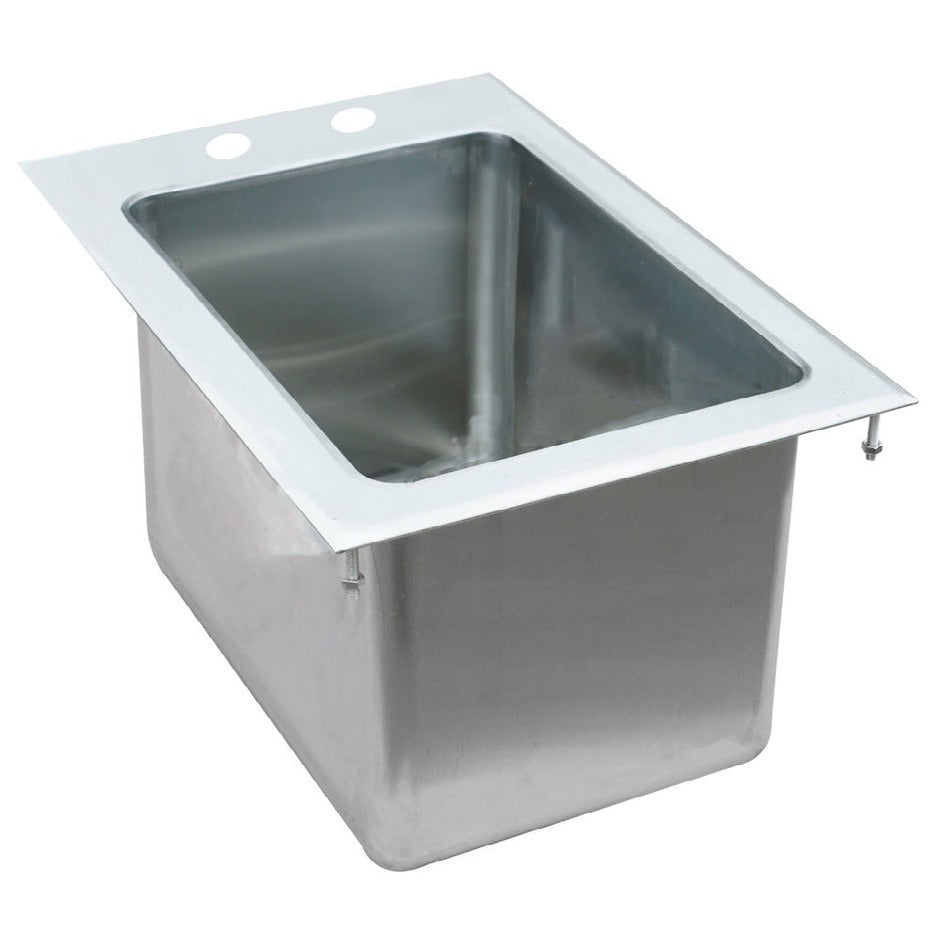

The Prepline PDIS-1416 Drop-In Sink
The Prepline PDIS-1416 is a drop-in one compartment sink that adds a wash point to any counter or worktable with a saw and a sealant gun. Instead of rearranging the kitchen around a floor standing sink, you cut an 18.25 inch square opening, drop the unit in, and the flange seats flat on the countertop. Bars, coffee stations, kiosks, and prep counters pick up a real sink exactly where the work happens.
Two Grades of 304 Stainless Steel
The deck is 16 gauge type 304 stainless steel, thick enough to sit rigid in the counter cutout without oil-canning when someone leans on it. The bowl below is drawn from 18 gauge 304 stainless, matching the corrosion resistance of the top while keeping the drop-in light enough for a one person install. Both surfaces take bar acids, citrus, and sanitizer without staining.
Deep Fabricated Bowl
The compartment measures 16 by 14 inches and runs a full 8 inches deep, which is the difference between rinsing a pitcher under the tap and actually submerging it. Shakers, portafilters, ice scoops, and third pans all fit below the rim, so splash stays in the bowl instead of across the counter. The generous radius in the corners wipes out with one pass of a towel.
Drop-In Installation with 18.25 In. Cut Out
Installation is a straight cutout job: 18.25 by 18.25 inches, centered where you want the sink. The 19 inch square rim overlaps the opening on all sides, and mounting clips draw the flange tight to the counter for a seal that keeps wash water from creeping underneath. Two pre-punched holes on the deck accept a standard 4 inch center faucet.
Included 3.5 In. Drain Basket
A 3.5 inch drain basket ships with the sink, catching fruit pulp, straw wrappers, and broken glass before they reach the trap. Lift the basket, knock it out over the trash, and drop it back in without reaching into the drain.
About Prepline
Prepline designs practical food preparation equipment for demanding kitchen environments. From planetary mixers and meat grinders to stainless steel worktables, sinks, and equipment stands, Prepline products are engineered for daily use in restaurants, cafeterias, and institutional kitchens. Known for straightforward construction and solid performance, the line is a reliable choice for operators who prioritize uptime and value. Parts and support are readily accessible through established service channels, making Prepline a dependable option for large-scale operations and independent businesses alike.
Features & Benefits
-
Drop-in design adds a compartment sink to any counter, bar, or worktable
-
Heavy 16 gauge deck stays rigid in the cutout under daily leaning and loading
-
Drawn 18 gauge bowl matches the corrosion resistance of the top
-
Deep compartment submerges pitchers, shakers, and third pans below the rim
-
Pre-punched deck holes accept a standard center-set faucet
-
Drain basket included to catch pulp and debris before the trap
-
Simple one person installation with a standard counter cutout
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Drop-in design adds a compartment sink to any counter, bar, or worktable
Heavy 16 gauge deck stays rigid in the cutout under daily leaning and loading
Drawn 18 gauge bowl matches the corrosion resistance of the top
Deep compartment submerges pitchers, shakers, and third pans below the rim
Pre-punched deck holes accept a standard center-set faucet
The Prepline PDIS-1416 Drop-In Sink
The Prepline PDIS-1416 is a drop-in one compartment sink that adds a wash point to any counter or worktable with a saw and a sealant gun. Instead of rearranging the kitchen around a floor standing sink, you cut an 18.25 inch square opening, drop the unit in, and the flange seats flat on the countertop. Bars, coffee stations, kiosks, and prep counters pick up a real sink exactly where the work happens.
Two Grades of 304 Stainless Steel
The deck is 16 gauge type 304 stainless steel, thick enough to sit rigid in the counter cutout without oil-canning when someone leans on it. The bowl below is drawn from 18 gauge 304 stainless, matching the corrosion resistance of the top while keeping the drop-in light enough for a one person install. Both surfaces take bar acids, citrus, and sanitizer without staining.
Deep Fabricated Bowl
The compartment measures 16 by 14 inches and runs a full 8 inches deep, which is the difference between rinsing a pitcher under the tap and actually submerging it. Shakers, portafilters, ice scoops, and third pans all fit below the rim, so splash stays in the bowl instead of across the counter. The generous radius in the corners wipes out with one pass of a towel.
Drop-In Installation with 18.25 In. Cut Out
Installation is a straight cutout job: 18.25 by 18.25 inches, centered where you want the sink. The 19 inch square rim overlaps the opening on all sides, and mounting clips draw the flange tight to the counter for a seal that keeps wash water from creeping underneath. Two pre-punched holes on the deck accept a standard 4 inch center faucet.
Included 3.5 In. Drain Basket
A 3.5 inch drain basket ships with the sink, catching fruit pulp, straw wrappers, and broken glass before they reach the trap. Lift the basket, knock it out over the trash, and drop it back in without reaching into the drain.
About Prepline
Prepline designs practical food preparation equipment for demanding kitchen environments. From planetary mixers and meat grinders to stainless steel worktables, sinks, and equipment stands, Prepline products are engineered for daily use in restaurants, cafeterias, and institutional kitchens. Known for straightforward construction and solid performance, the line is a reliable choice for operators who prioritize uptime and value. Parts and support are readily accessible through established service channels, making Prepline a dependable option for large-scale operations and independent businesses alike.
Features & Benefits
-
Drop-in design adds a compartment sink to any counter, bar, or worktable
-
Heavy 16 gauge deck stays rigid in the cutout under daily leaning and loading
-
Drawn 18 gauge bowl matches the corrosion resistance of the top
-
Deep compartment submerges pitchers, shakers, and third pans below the rim
-
Pre-punched deck holes accept a standard center-set faucet
-
Drain basket included to catch pulp and debris before the trap
-
Simple one person installation with a standard counter cutout
Resources & Downloads
See all from Prepline
Specifications
| Overall Size | 19" x 19" x 8"H |
| Bowl Size | 16" x 14" x 8"D |
| Counter Cut Out | 18.25" x 18.25" |
| Top Material | 16 Gauge 304 Stainless Steel |
| Bowl Material | 18 Gauge 304 Stainless Steel |
| Faucet Holes | 2, on 4" centers |
| Drain Basket | 3.5", included |
| Installation | Drop-in |
Certifications & Approvals
-
NSF Approved
