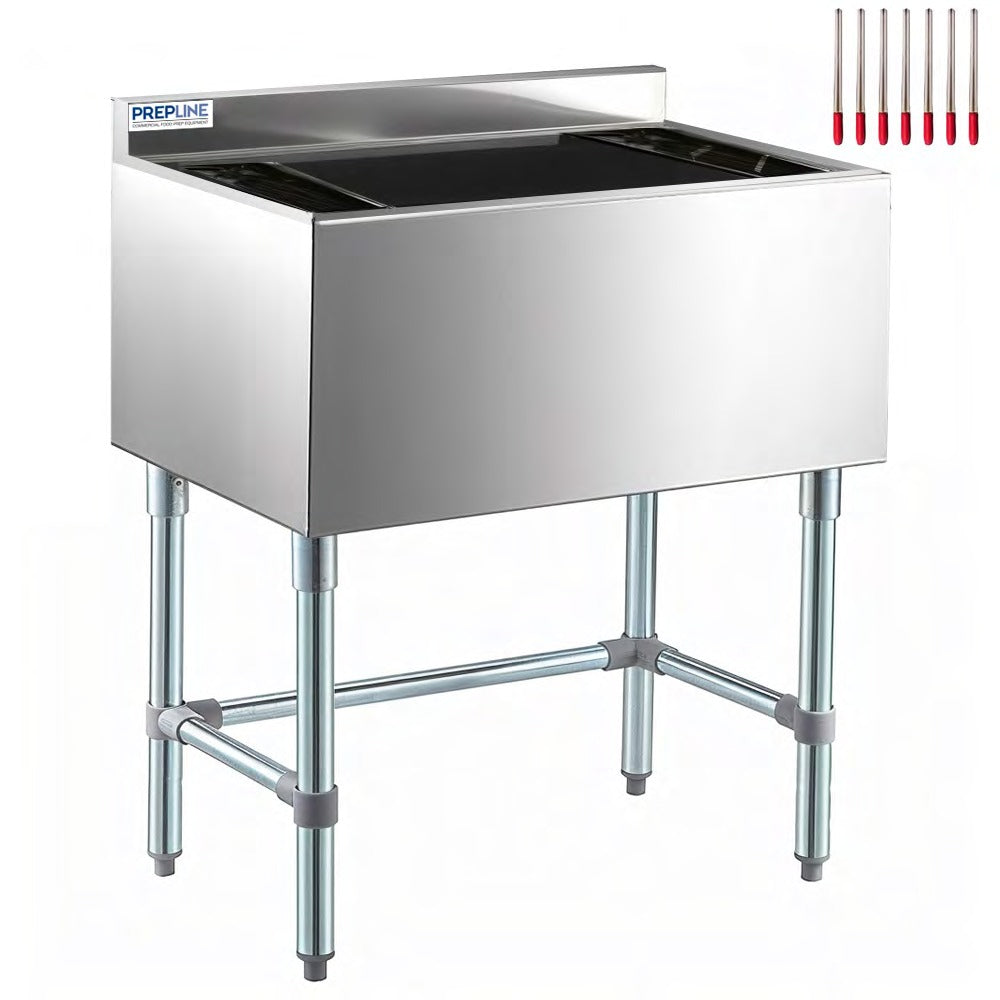

The Prepline PIB183012-7CPT Underbar Ice Bin
The Prepline PIB183012-7CPT is an 30 inch wide underbar ice bin with a factory installed 7 circuit post-mix cold plate, built to anchor a soda gun station behind the bar. The bin holds 98 pounds of ice over the plate, so the same ice that fills glasses also chills every line of product running through the plate on its way to the gun. Bartenders pour colder drinks with better carbonation and never leave the well to do it.
7 Circuit Post-Mix Cold Plate
The cold plate at the bottom of the bin carries seven separate circuits, enough for a full post-mix soda setup with lines to spare. Product runs through the plate under the ice load and comes out at serving temperature, which protects carbonation and cuts foaming at the gun. Because the plate chills with the ice you already stock, there is no compressor to power, clean, or repair under the bar.
Heavy Duty 304 Stainless Steel Bin
The bin body is fabricated from heavy duty type 304 stainless steel, with an interior well measuring 28 by 15.2 inches and 12 inches deep. Type 304 takes the constant melt water, syrup drips, and sanitizer of bar service without corroding, and the deep well keeps a full shift of ice within a scoop's reach.
Polyurethane Foam Insulation
Polyurethane foam packed between the bin walls slows melt, so the ice you load at opening is still ice at last call instead of a drain full of expensive water. Slower melt also means the cold plate stays buried and effective through the whole service window, and the outer panels stay dry instead of sweating onto the floor.
Backsplash, Bottle Holders and Adjustable Legs
A built-in 3 inch backsplash protects the wall behind the well from scoop spray, and two included bottle holders hang speed bottles at the bartender's fingertips. The bin stands on legs with adjustable feet and cross bracing, so it sits level on an uneven bar floor and stays rigid when someone leans into a rush.
About Prepline
Prepline designs practical food preparation equipment for demanding kitchen environments. From planetary mixers and meat grinders to stainless steel worktables, sinks, and equipment stands, Prepline products are engineered for daily use in restaurants, cafeterias, and institutional kitchens. Known for straightforward construction and solid performance, the line is a reliable choice for operators who prioritize uptime and value. Parts and support are readily accessible through established service channels, making Prepline a dependable option for large-scale operations and independent businesses alike.
Features & Benefits
-
Underbar ice bin sized for a full service soda gun station
-
Seven circuit post-mix cold plate chills product with the ice already in the well
-
No compressor under the bar to power, clean, or repair
-
Heavy duty stainless steel bin stands up to melt water and syrup spills
-
Polyurethane foam insulation slows melt through a full shift
-
Built-in backsplash keeps scoop spray off the wall
-
Two bottle holders keep speed bottles at the bartender's fingertips
-
Adjustable feet with cross bracing sit level on uneven floors
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Underbar ice bin sized for a full service soda gun station
Seven circuit post-mix cold plate chills product with the ice already in the well
No compressor under the bar to power, clean, or repair
Heavy duty stainless steel bin stands up to melt water and syrup spills
Polyurethane foam insulation slows melt through a full shift
The Prepline PIB183012-7CPT Underbar Ice Bin
The Prepline PIB183012-7CPT is an 30 inch wide underbar ice bin with a factory installed 7 circuit post-mix cold plate, built to anchor a soda gun station behind the bar. The bin holds 98 pounds of ice over the plate, so the same ice that fills glasses also chills every line of product running through the plate on its way to the gun. Bartenders pour colder drinks with better carbonation and never leave the well to do it.
7 Circuit Post-Mix Cold Plate
The cold plate at the bottom of the bin carries seven separate circuits, enough for a full post-mix soda setup with lines to spare. Product runs through the plate under the ice load and comes out at serving temperature, which protects carbonation and cuts foaming at the gun. Because the plate chills with the ice you already stock, there is no compressor to power, clean, or repair under the bar.
Heavy Duty 304 Stainless Steel Bin
The bin body is fabricated from heavy duty type 304 stainless steel, with an interior well measuring 28 by 15.2 inches and 12 inches deep. Type 304 takes the constant melt water, syrup drips, and sanitizer of bar service without corroding, and the deep well keeps a full shift of ice within a scoop's reach.
Polyurethane Foam Insulation
Polyurethane foam packed between the bin walls slows melt, so the ice you load at opening is still ice at last call instead of a drain full of expensive water. Slower melt also means the cold plate stays buried and effective through the whole service window, and the outer panels stay dry instead of sweating onto the floor.
Backsplash, Bottle Holders and Adjustable Legs
A built-in 3 inch backsplash protects the wall behind the well from scoop spray, and two included bottle holders hang speed bottles at the bartender's fingertips. The bin stands on legs with adjustable feet and cross bracing, so it sits level on an uneven bar floor and stays rigid when someone leans into a rush.
About Prepline
Prepline designs practical food preparation equipment for demanding kitchen environments. From planetary mixers and meat grinders to stainless steel worktables, sinks, and equipment stands, Prepline products are engineered for daily use in restaurants, cafeterias, and institutional kitchens. Known for straightforward construction and solid performance, the line is a reliable choice for operators who prioritize uptime and value. Parts and support are readily accessible through established service channels, making Prepline a dependable option for large-scale operations and independent businesses alike.
Features & Benefits
-
Underbar ice bin sized for a full service soda gun station
-
Seven circuit post-mix cold plate chills product with the ice already in the well
-
No compressor under the bar to power, clean, or repair
-
Heavy duty stainless steel bin stands up to melt water and syrup spills
-
Polyurethane foam insulation slows melt through a full shift
-
Built-in backsplash keeps scoop spray off the wall
-
Two bottle holders keep speed bottles at the bartender's fingertips
-
Adjustable feet with cross bracing sit level on uneven floors
Resources & Downloads
See all from Prepline
Specifications
| Overall Length | 30" |
| Overall Width | 18" |
| Overall Height | 33.1" |
| Backsplash Height | 3" |
| Ice Bin Length | 28" |
| Ice Bin Width | 15.2" |
| Ice Bin Depth | 12" |
| Ice Capacity | 98 lb. |
| Cold Plate | 7 circuit post-mix |
| Bottle Holders | 2, included |
| Material | 304 Stainless Steel |
| Insulation | Polyurethane foam |
| Legs | Adjustable feet with cross bracing |
