Prepline QD3436 3/4 In. x 36 In. Mobile Gas Hose Connector Kit with Quick Disconnect, Full Port Shut Off Valve, and Restraining Cable

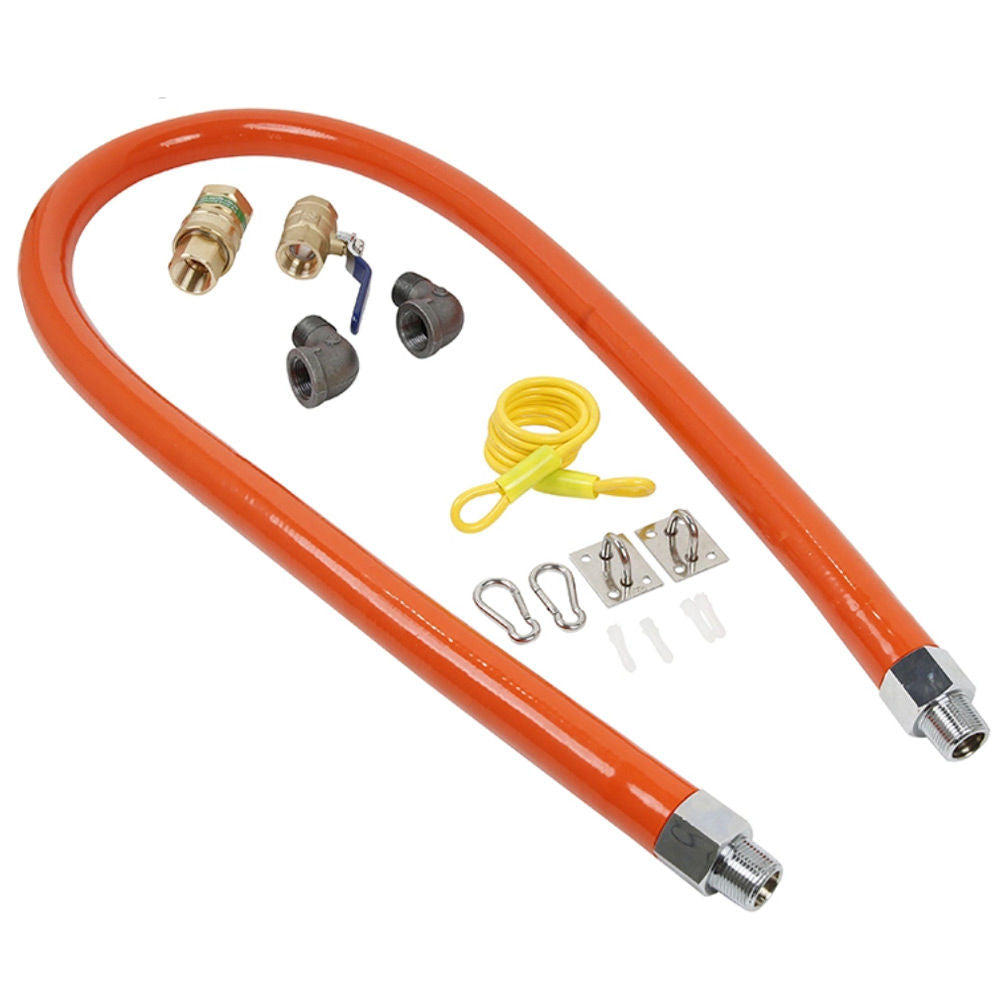

The Prepline QD3436 is a 3/4 inch by 36 inch mobile gas hose connector kit with a quick disconnect, built for fryers, ranges, griddles, and charbroilers that sit on casters and need to roll away from the wall for cleaning. Instead of a rigid pipe connection that traps grease and debris behind the line, this kit gives you a flexible orange hose, a full port shut off valve, a brass quick disconnect, two street elbows, and a complete restraining kit in one box, so a single purchase covers the whole hookup behind one piece of equipment.

Stainless Steel Corrugated Tube with Braided Radial Wrap

The hose itself is a 36 inch flexible stainless steel corrugated tube wrapped in a stainless steel braid that prevents stretching when the equipment gets pulled out at closing time. Over the braid sits an anti-microbial PVC coating that keeps fryer grease from building up on the hose surface, a real difference from bare braided hoses that turn into sticky grime magnets within a month behind a fry station. The welded construction and radial wrap hold up to the daily flexing that a mobile connection takes, and the bright orange jacket makes the gas line easy to spot during inspections.

Quick Disconnect That Makes Cleaning Behind the Line Routine

The brass quick disconnect is the piece that changes how your crew cleans. Close the valve, uncouple the fitting, and the fryer rolls out so someone can actually mop the grease shadow underneath it, then the line snaps back together without tools. Health inspectors look behind cooking equipment, and kitchens with hard piped gas lines tend to skip that floor section because nobody wants to disconnect a union with a wrench at midnight.

Full Port Shut Off Valve and Rotating Fittings

A 3/4 inch NPT full port gas shut off valve is included, so gas to the appliance cuts off at the supply side before anyone touches the disconnect. Full port means the valve does not choke flow when open, which matters on high BTU equipment fed through a 3/4 inch line. The end fittings rotate a full 360 degrees at both ends of the hose, relieving twist as the appliance moves instead of transferring that stress into the tube, and the two included 3/4 inch female by 3/4 inch male street elbows let you route the hose cleanly out of a tight gap between the appliance and the wall.

Restraining Kit Included in the Box

The kit ships with a PVC coated restraining cable plus two mounting plates, two spring hooks, four screws, and four wall anchors. The cable anchors the appliance to the wall and stops it from rolling out far enough to strain the gas connection, which is the failure mode that turns a flexible hose into a leak. Note that this kit is for indoor commercial installations and is not approved for outdoor use or for use with portable LP tanks.
