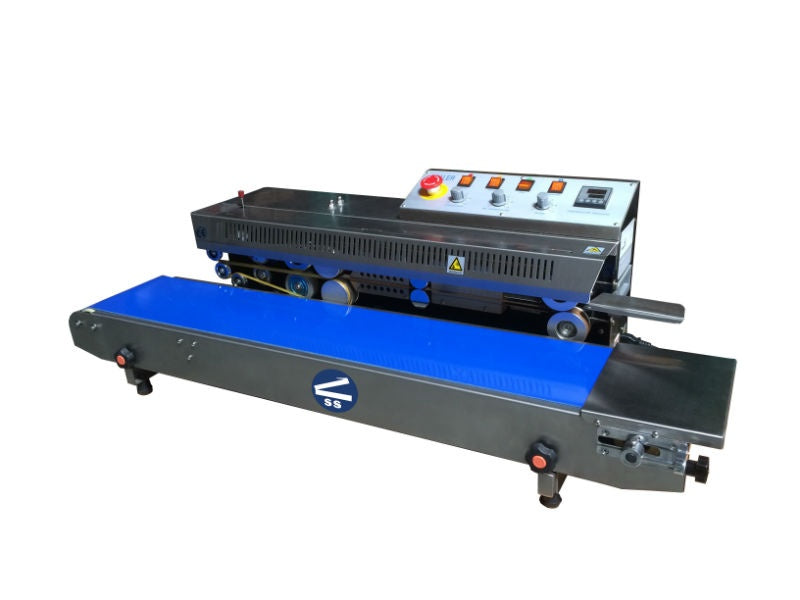

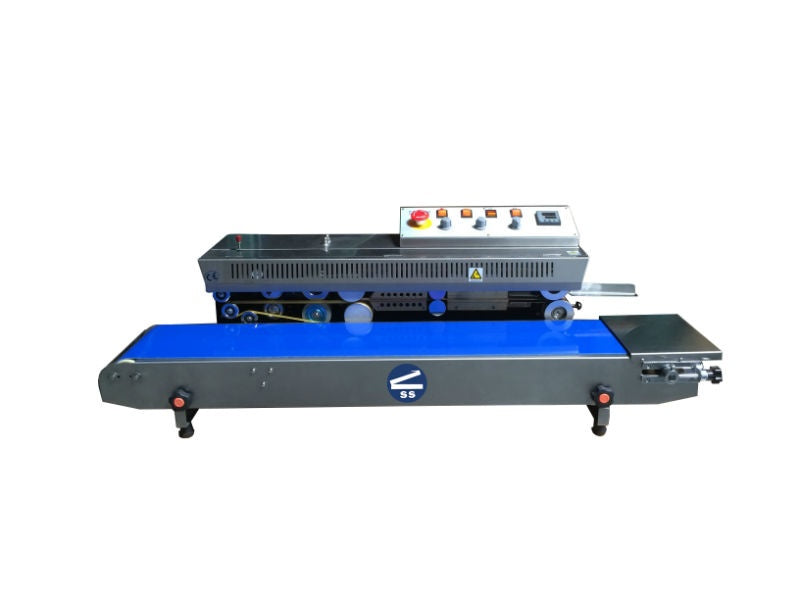

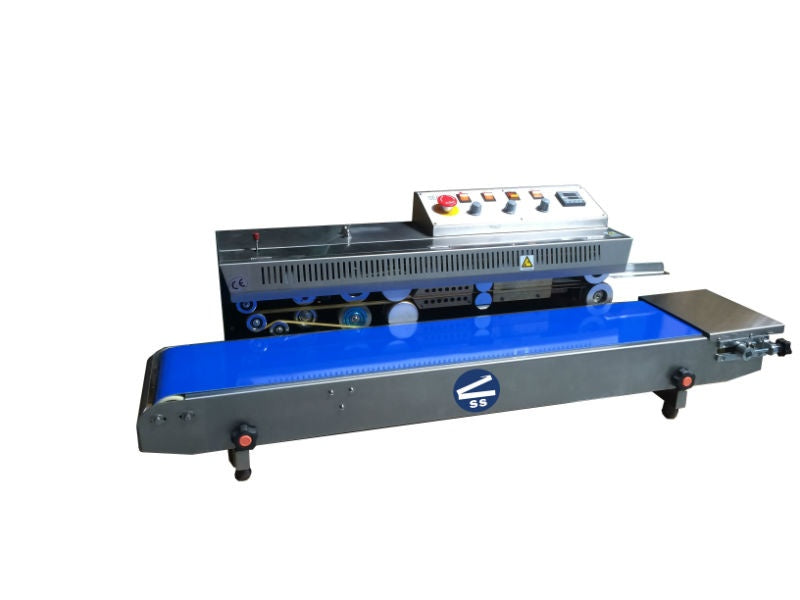

Sealer Sales FRM-1010I Horizontal Band Sealer with Dry Ink Coding, 15mm Seal Width, Right Feed

The Sealer Sales FRM-1010I is an Impresse-series horizontal continuous band sealer with a 15mm wide seal, integrated dry-ink coding station, and stainless steel construction. The motorized rubber conveyor runs at up to 472 inches per minute with constant direct-heat seal bars and paired cooling/heating blocks for repeatable seals on poly bags, laminated foils, and similar flexible packaging films. Right-to-left feed direction matches operator-on-the-right line layouts.

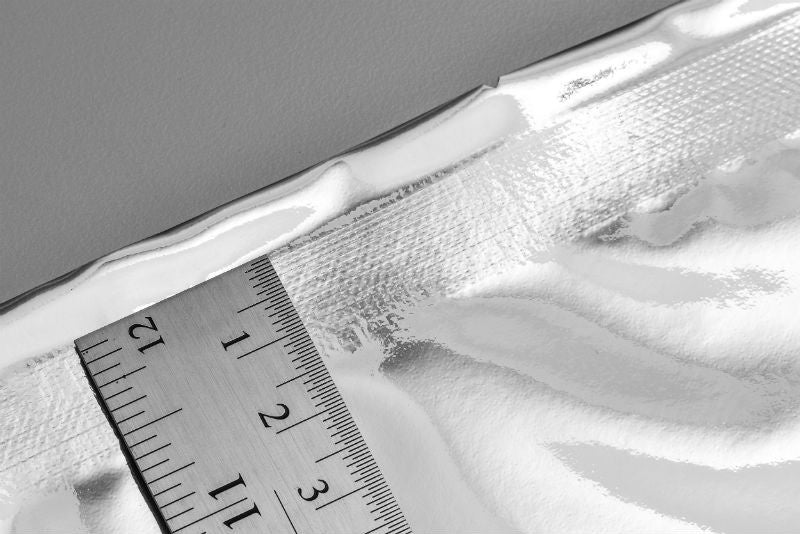

15mm Wide Seal for Stronger Bond on Production-Run Films

The 15mm seal width is wider than the 10mm seal on lighter-duty band sealers, which gives a stronger, more peel-resistant bond on production-grade poly bags. The extra width matters when the bag is going to be handled multiple times before reaching the customer (warehouse, distribution, retail) and the seal needs to survive every handoff. The 20mm seal width variant is available for even heavier handling cycles.

Constant Direct-Heat Sealing with Cooling and Heating Blocks

The seal bars run on constant direct heat, with a pair each of cooling and heating blocks behind them. The heating block brings the bag film to seal temperature and the cooling block sets the seal before the bag exits the conveyor, so the operator is not pulling a hot, still-relaxing seal that distorts on the way out. The solid-state temperature controller holds the bars at the set point regardless of how many bags have passed through, which is what stops the intermittent-leaker problem that takes most band sealers out of spec by mid-shift.

Motorized Rubber Conveyor with Variable Speed Control

The conveyor is a motorized rubber belt with variable speed control, so the operator can dial in the dwell time for the film gauge and bag profile being run. Knurled pressure rolls above the conveyor adjust independently so a heavy filled bag gets enough pressure on the seal bars while a light empty bag does not get crushed. The whole conveyor is fully adjustable, meaning both height and depth relative to the seal bars, so the operator can center the seal on any bag size from small portion packs up to the maximum bag the configuration handles.

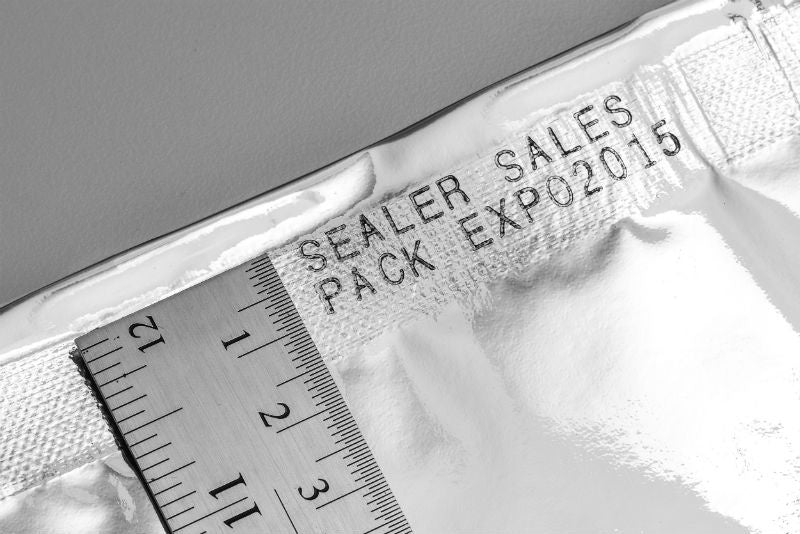

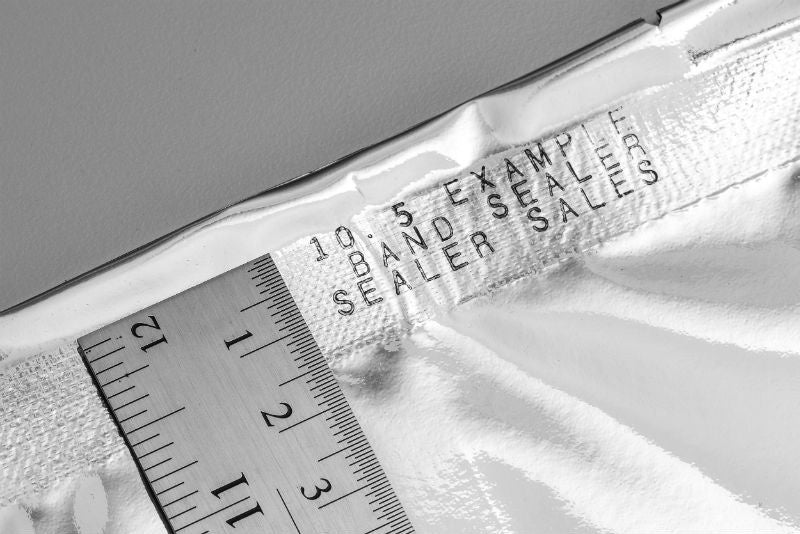

Dry-Ink Coding Station on the Seal Line

An integrated dry-ink coding station prints lot or date code directly onto the seal line as the bag passes through. The typeset is changed by swapping the printing wheel, so the operator can switch codes for a new run without re-tooling. Common configurations use 18PT type for product code, expiration date, or batch lot. The ink reservoir holds enough ink for thousands of cycles before refill, and the print head can be disabled if the operator does not want coding on a particular run.

Stainless Steel Construction with Field-Service Spare Parts

The housing and major chassis components are stainless steel, which holds up to wipe-down cleaning, ambient moisture in food and beverage production rooms, and the day-in day-out vibration of continuous-band operation. The manufacturer ships a spare parts kit with every unit including PC board, PTFE belt, wheel belt, fuses, motor brush, heating element, silica gel ring, silicone pin, and tools. Most operators keep one PTFE belt and one wheel belt in a drawer next to the sealer because those are the wear items that turn over fastest.

Emergency Stop and Operator Safety

An emergency stop button is wired into the front panel and shuts down the conveyor and seal bars in one push. The seal bars are guarded from accidental contact at the entry and exit, and the conveyor has thermal overload protection so a jammed bag does not damage the motor. These are baseline safety features for continuous-band production but worth noting because they are what makes the unit safe to leave running with a single operator at the bench.
