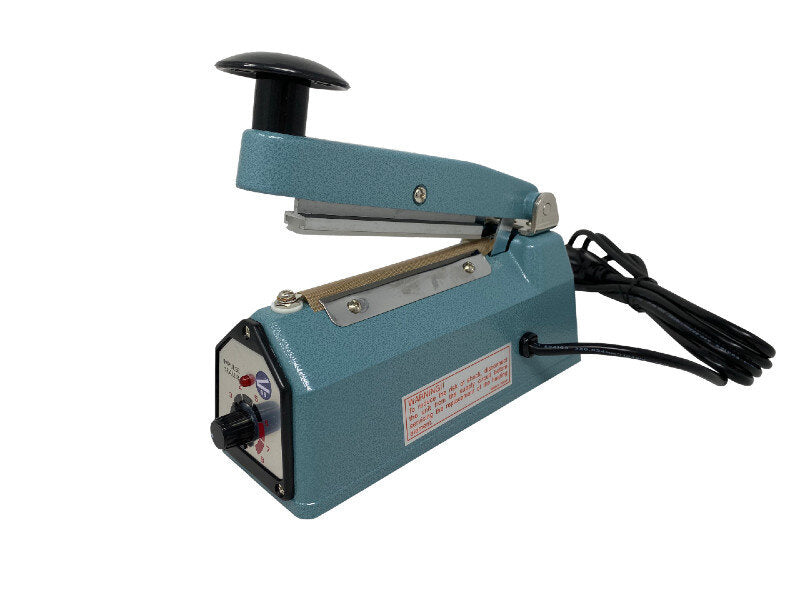

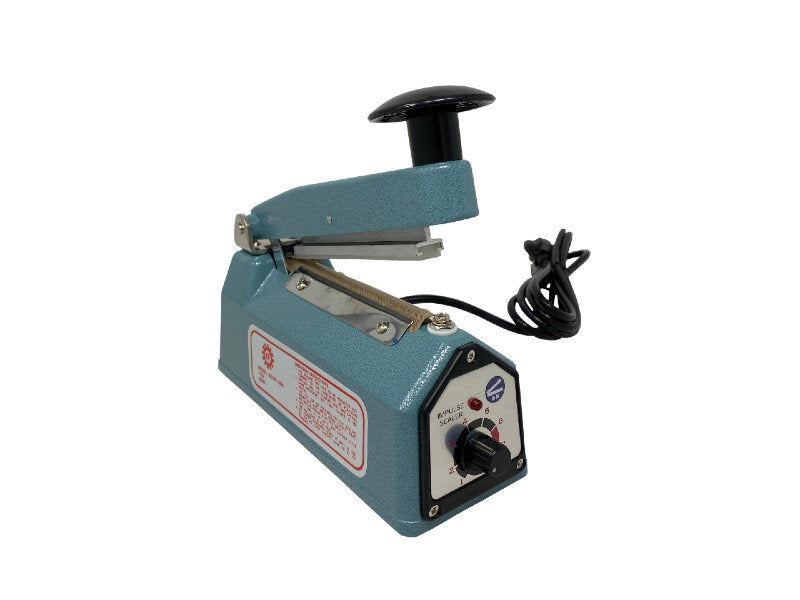

The Sealer Sales KF-100H Bag Sealer
The Sealer Sales KF-100H is a 4" KF-Series impulse hand sealer for poly bags and other thermoplastic materials. There is no warm-up time, the plug-in electronic timer controls the dwell for whatever film you are running, and the all-metal body holds up to bench use across pack-out and small-batch fulfillment workflows.
No Warm-Up Time
Impulse sealing fires heat into the seal area only during the dwell cycle, so the KF-100H is ready the moment it is plugged in. There is no preheat wait, no idle power draw, and no risk of the bars holding heat between cycles. Hold the sealing arm down for an additional one to two seconds after the timer light cuts out so the seal cools under pressure.
Plug-In Electronic Timer for Variable Films
The timer is a plug-in module, set once per material. Different films, thicknesses, and laminates need different dwell times. Set the timer to the value the material requires; the KF-100H fires the same dwell on every cycle until the timer is changed. When the indicator light goes out the heat cycle is complete.
All-Metal Construction
The chassis is all-metal so the KF-100H stays rigid through the press cycle and survives the bench environment in pack-out areas, shipping rooms, medical kitting stations, and clean-room substations. Mechanical wear points are replaceable: the heating element and PTFE cover are field-serviceable consumables shipped with each manufacturers replacement kit.
Sized to the Bag

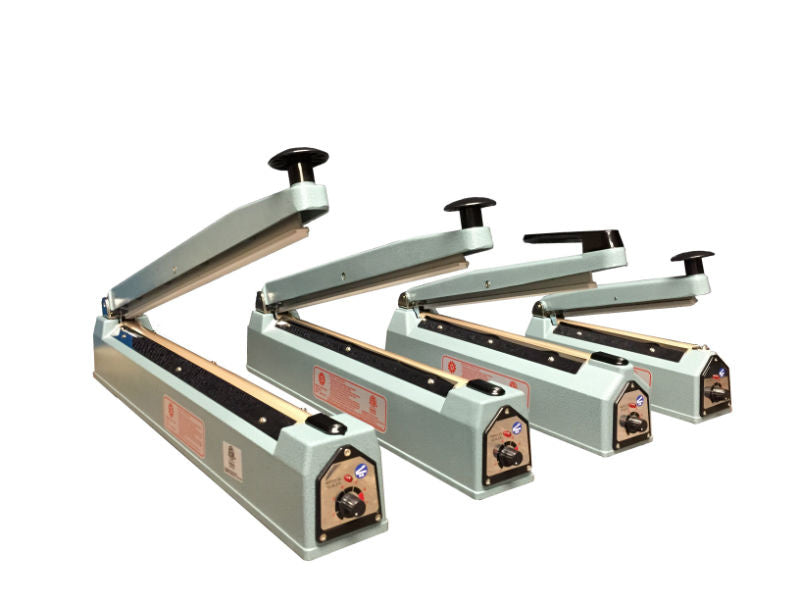

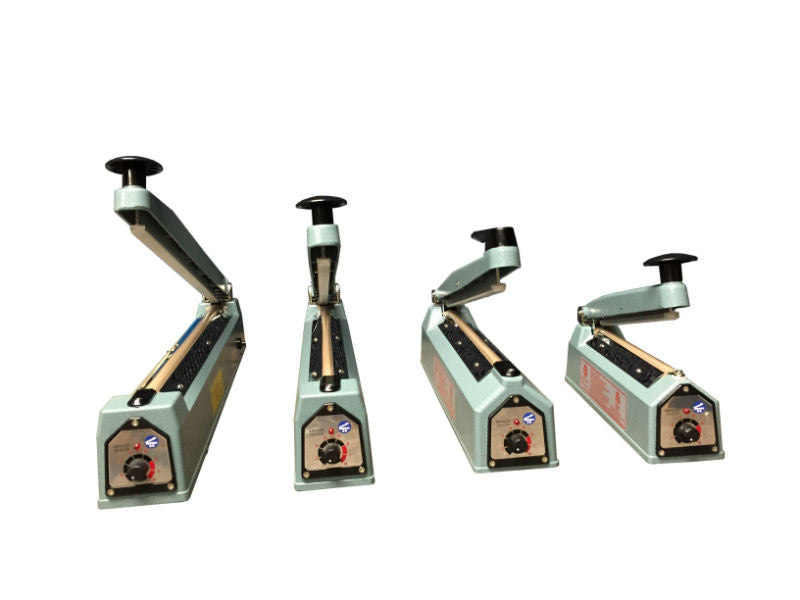

The 4" jaw fits 4" of seal length in one stroke. For longer bags, the operator can run multiple passes; the rigid frame keeps the seal aligned across the press. The KF series is available in 4 inch, 8 inch, 12 inch, 16 inch, and 20 inch jaws so the workstation matches the bag size most often run.
Features & Benefits
-
Impulse sealing with no warm-up time
-
Plug-in electronic timer for variable material control
-
All-metal construction for daily bench use
-
2 mm seal width jaw
-
Field-replaceable heating element and PTFE cover
-
Manufacturers replacement kit includes two elements and two PTFE covers
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Impulse sealing with no warm-up time
Plug-in electronic timer for variable material control
All-metal construction for daily bench use
2 mm seal width jaw
Field-replaceable heating element and PTFE cover
The Sealer Sales KF-100H Bag Sealer
The Sealer Sales KF-100H is a 4" KF-Series impulse hand sealer for poly bags and other thermoplastic materials. There is no warm-up time, the plug-in electronic timer controls the dwell for whatever film you are running, and the all-metal body holds up to bench use across pack-out and small-batch fulfillment workflows.
No Warm-Up Time
Impulse sealing fires heat into the seal area only during the dwell cycle, so the KF-100H is ready the moment it is plugged in. There is no preheat wait, no idle power draw, and no risk of the bars holding heat between cycles. Hold the sealing arm down for an additional one to two seconds after the timer light cuts out so the seal cools under pressure.
Plug-In Electronic Timer for Variable Films
The timer is a plug-in module, set once per material. Different films, thicknesses, and laminates need different dwell times. Set the timer to the value the material requires; the KF-100H fires the same dwell on every cycle until the timer is changed. When the indicator light goes out the heat cycle is complete.
All-Metal Construction
The chassis is all-metal so the KF-100H stays rigid through the press cycle and survives the bench environment in pack-out areas, shipping rooms, medical kitting stations, and clean-room substations. Mechanical wear points are replaceable: the heating element and PTFE cover are field-serviceable consumables shipped with each manufacturers replacement kit.
Sized to the Bag
The 4" jaw fits 4" of seal length in one stroke. For longer bags, the operator can run multiple passes; the rigid frame keeps the seal aligned across the press. The KF series is available in 4 inch, 8 inch, 12 inch, 16 inch, and 20 inch jaws so the workstation matches the bag size most often run.
Features & Benefits
-
Impulse sealing with no warm-up time
-
Plug-in electronic timer for variable material control
-
All-metal construction for daily bench use
-
2 mm seal width jaw
-
Field-replaceable heating element and PTFE cover
-
Manufacturers replacement kit includes two elements and two PTFE covers
Resources & Downloads
See all from Sealer Sales
Specifications
| Seal Length | 4" |
| Seal Width | 2 mm |
| Max Seal Thickness | 10 mil |
| Heating Element | Flat wire |
| Construction | All-metal |
| Color | Blue |
| Timer | Plug-in electronic timer |
| Weight | 6 lbs |
| Replacement Kit | Includes two heating elements and two PTFE covers |
Manufacturer's Warranty
-
3 Month
Warranty
