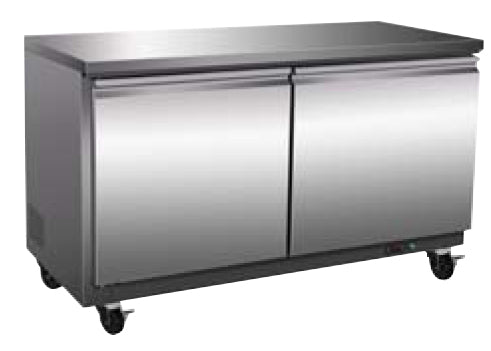

The Serv-Ware UCF-60-HC Undercounter Freezer
The Serv-Ware UCF-60-HC is a 61-inch, two-door undercounter freezer with 15.5 cubic feet of frozen storage, sized for a high-volume station that goes through product fast. The two wide doors let two cooks work the cabinet at once, and a bottom-mounted compressor holds the interior between -10°F and 10°F even as the doors open through a rush.
Frozen Capacity And Layout
At 15.5 cubic feet, the UCF-60-HC carries close to small reach-in capacity in an undercounter footprint, enough to back a busy line between deliveries. The two-door design keeps one half sealed while the other is open, so a double-cook station does not lose the whole cabinet's cold on every grab. Each side has a self-closing door and a PVC-coated wire shelf.
Cooling Performance
The bottom-mounted, self-contained compressor sits below the food and keeps the wide cabinet at temperature, with the condenser at floor level for easy cleaning. The 1/2 horsepower system delivers 4,200 BTU/h, the cooling capacity this larger box needs to recover quickly after a stretch of open doors, and it runs on a standard 115-volt outlet at 5 amps.
R290 Refrigeration
The sealed system uses 3.53 ounces of R290, a hydrocarbon refrigerant with a far lower global-warming impact than the HFC gases it replaces. CFC-free foam insulates the walls and doors to hold the freeze, and the cabinet recovers temperature fast after a busy open-door run.
Build And Surfaces
Stainless steel wraps the exterior for quick wipe-downs, while the interior is lined with painted aluminum and ABS panels over a 304 stainless steel floor that stands up to crates and heavy loading. The two magnetic door gaskets pull out by hand for cleaning, and the PVC-coated wire shelving resists the rust that bare wire develops in a freezer's humidity.
Controls And Setup
An electronic thermostat with a digital LED display keeps the holding temperature in view without opening a door. Automatic defrost runs every six hours and condensate evaporates on its own, so there is no manual drain to empty. Both wide doors open past 90 degrees for two-handed loading, and the casters ship uninstalled so you can set the unit on legs or roll it for cleaning.
About Serv-Ware
Serv-Ware manufactures commercial refrigeration, cooking equipment, prep stations, sinks, shelving, and other back-of-house essentials for foodservice operations. The brand is known for offering a broad equipment portfolio that supports independent restaurants, chains, bakeries, convenience stores, and institutional kitchens. Serv-Ware focuses on practical designs that address everyday operational needs, with product lines that include reach-in refrigeration, prep tables, griddles, fryers, ranges, and ice machines. Its equipment is designed for common kitchen workflows where space, temperature control, and daily production demands matter. Serv-Ware’s reputation is built around dependable performance, straightforward operation, and a value-oriented price point.
Features & Benefits
-
15.5 cubic feet of frozen storage backs a high-volume station between deliveries
-
Two wide doors let two cooks work the freezer at once without crowding
-
Self-closing doors keep each half sealed when the other is open
-
Bottom-mounted compressor recovers the wide cabinet quickly after a rush
-
R290 hydrocarbon refrigerant cools with a low global-warming footprint
-
Electronic thermostat with a digital LED display keeps the temperature in view
-
Automatic six-hour defrost and self-evaporating condensate skip the manual drain
-
Stainless steel exterior and a 304 stainless steel interior floor take heavy loading
-
PVC-coated wire shelves resist the rust bare wire forms in freezer humidity
-
Magnetic door gaskets pull out by hand for cleaning
-
Casters ship uninstalled so you can set it on legs or roll it
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
15.5 cubic feet of frozen storage backs a high-volume station between deliveries
Two wide doors let two cooks work the freezer at once without crowding
Self-closing doors keep each half sealed when the other is open
Bottom-mounted compressor recovers the wide cabinet quickly after a rush
R290 hydrocarbon refrigerant cools with a low global-warming footprint
The Serv-Ware UCF-60-HC Undercounter Freezer
The Serv-Ware UCF-60-HC is a 61-inch, two-door undercounter freezer with 15.5 cubic feet of frozen storage, sized for a high-volume station that goes through product fast. The two wide doors let two cooks work the cabinet at once, and a bottom-mounted compressor holds the interior between -10°F and 10°F even as the doors open through a rush.
Frozen Capacity And Layout
At 15.5 cubic feet, the UCF-60-HC carries close to small reach-in capacity in an undercounter footprint, enough to back a busy line between deliveries. The two-door design keeps one half sealed while the other is open, so a double-cook station does not lose the whole cabinet's cold on every grab. Each side has a self-closing door and a PVC-coated wire shelf.
Cooling Performance
The bottom-mounted, self-contained compressor sits below the food and keeps the wide cabinet at temperature, with the condenser at floor level for easy cleaning. The 1/2 horsepower system delivers 4,200 BTU/h, the cooling capacity this larger box needs to recover quickly after a stretch of open doors, and it runs on a standard 115-volt outlet at 5 amps.
R290 Refrigeration
The sealed system uses 3.53 ounces of R290, a hydrocarbon refrigerant with a far lower global-warming impact than the HFC gases it replaces. CFC-free foam insulates the walls and doors to hold the freeze, and the cabinet recovers temperature fast after a busy open-door run.
Build And Surfaces
Stainless steel wraps the exterior for quick wipe-downs, while the interior is lined with painted aluminum and ABS panels over a 304 stainless steel floor that stands up to crates and heavy loading. The two magnetic door gaskets pull out by hand for cleaning, and the PVC-coated wire shelving resists the rust that bare wire develops in a freezer's humidity.
Controls And Setup
An electronic thermostat with a digital LED display keeps the holding temperature in view without opening a door. Automatic defrost runs every six hours and condensate evaporates on its own, so there is no manual drain to empty. Both wide doors open past 90 degrees for two-handed loading, and the casters ship uninstalled so you can set the unit on legs or roll it for cleaning.
About Serv-Ware
Serv-Ware manufactures commercial refrigeration, cooking equipment, prep stations, sinks, shelving, and other back-of-house essentials for foodservice operations. The brand is known for offering a broad equipment portfolio that supports independent restaurants, chains, bakeries, convenience stores, and institutional kitchens. Serv-Ware focuses on practical designs that address everyday operational needs, with product lines that include reach-in refrigeration, prep tables, griddles, fryers, ranges, and ice machines. Its equipment is designed for common kitchen workflows where space, temperature control, and daily production demands matter. Serv-Ware’s reputation is built around dependable performance, straightforward operation, and a value-oriented price point.
Features & Benefits
-
15.5 cubic feet of frozen storage backs a high-volume station between deliveries
-
Two wide doors let two cooks work the freezer at once without crowding
-
Self-closing doors keep each half sealed when the other is open
-
Bottom-mounted compressor recovers the wide cabinet quickly after a rush
-
R290 hydrocarbon refrigerant cools with a low global-warming footprint
-
Electronic thermostat with a digital LED display keeps the temperature in view
-
Automatic six-hour defrost and self-evaporating condensate skip the manual drain
-
Stainless steel exterior and a 304 stainless steel interior floor take heavy loading
-
PVC-coated wire shelves resist the rust bare wire forms in freezer humidity
-
Magnetic door gaskets pull out by hand for cleaning
-
Casters ship uninstalled so you can set it on legs or roll it
Resources & Downloads
See all from Serv-Ware
Specifications
| Storage Capacity | 15.5 cu. ft. |
| Temperature Range | -10°F to 10°F |
| Number of Doors | 2 |
| Number of Shelves | 2 (1 per door) |
| Shelf Material | PVC-coated wire |
| Exterior Material | Stainless steel |
| Interior Material | Painted aluminum, ABS side panels |
| Interior Floor | 304 stainless steel |
| Insulation | CFC-free foam |
| Refrigerant | R290 |
| Refrigerant Charge | 3.53 oz. |
| Cooling Capacity | 4200 BTU/H |
| Horsepower | 1/2 HP |
| Compressor Location | Bottom-mounted |
| Defrost | Automatic, every 6 hours |
| Condensate | Automatic evaporation |
| Voltage | 115 V |
| Amperage | 5 A |
| Frequency | 60 Hz |
| Phase | 1 |
| Plug Type | NEMA 5-15P |
| Overall Dimensions (W x D x H) | 61.2" W x 29.9" D x 35.5" H |
| Shipping Weight | 305 lbs. |
Manufacturer's Warranty
-
3 Year
Labor
-
3 Year
Parts
-
5 Year
Compressor
Certifications & Approvals
-
ETL US & Canada
-
ETL Sanitation
