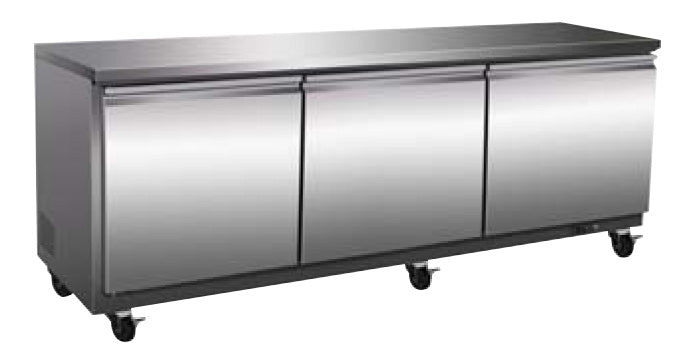

The Serv-Ware UCF-72-HC Undercounter Freezer
The Serv-Ware UCF-72-HC is a three-door undercounter freezer with 18 cubic feet of frozen storage in a 71.5-inch cabinet. Built for a long, high-throughput line, it gives several cooks their own door while a stronger compressor holds the wide interior between -10°F and 10°F.
Frozen Capacity And Layout
At 18 cubic feet, this is the largest freezer in the line, with enough room to back a full station between deliveries. Three self-closing doors split the cabinet into thirds, each with its own PVC-coated wire shelf, so two-thirds of the box stays sealed on any single grab.
Cooling Performance
A bottom-mounted, self-contained compressor sits beneath the food and keeps the long cabinet at temperature. The 5/8 horsepower system delivers 6,200 BTU/h, the strongest cooling output in the line, and draws 6 amps from a standard 115-volt outlet to recover after heavy use.
R290 Refrigeration
The sealed system carries 3.88 ounces of R290, a hydrocarbon refrigerant with a far lower global-warming impact than older HFC gases. CFC-free foam insulates the walls and all three doors so the freeze holds across the wide cabinet between openings.
Build And Surfaces
Stainless steel covers the exterior for quick cleaning, while the interior pairs painted aluminum and ABS panels with a 304 stainless steel floor that takes heavy frozen loads end to end. All three magnetic gaskets pull out by hand, and the PVC-coated wire shelves resist rust in the freezer's humidity.
Controls And Setup
An electronic thermostat with a digital LED display keeps the holding temperature visible without opening a door. Automatic defrost runs every 6 hours and condensate evaporates on its own, so there is no drain to empty. The casters ship uninstalled, letting you set the unit on legs or roll the long cabinet for cleaning.
About Serv-Ware
Serv-Ware manufactures commercial refrigeration, cooking equipment, prep stations, sinks, shelving, and other back-of-house essentials for foodservice operations. The brand is known for offering a broad equipment portfolio that supports independent restaurants, chains, bakeries, convenience stores, and institutional kitchens. Serv-Ware focuses on practical designs that address everyday operational needs, with product lines that include reach-in refrigeration, prep tables, griddles, fryers, ranges, and ice machines. Its equipment is designed for common kitchen workflows where space, temperature control, and daily production demands matter. Serv-Ware’s reputation is built around dependable performance, straightforward operation, and a value-oriented price point.
Features & Benefits
-
18 cubic feet of frozen storage in a 71.5-inch three-door cabinet
-
Three self-closing doors keep two-thirds of the box sealed on any grab
-
One PVC-coated wire shelf behind each of the three doors
-
Holds a -10°F to 10°F freezing range across the wide interior
-
5/8 horsepower compressor delivers 6,200 BTU/h, the strongest in the line
-
Plugs into a standard kitchen circuit despite its size
-
R290 hydrocarbon refrigerant cools with a low global-warming footprint
-
Electronic thermostat with a digital LED display
-
Automatic 6-hour defrost and self-evaporating condensate
-
304 stainless steel interior floor handles heavy loading end to end
-
Tool-free magnetic gaskets and uninstalled casters on the long cabinet
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
18 cubic feet of frozen storage in a 71.5-inch three-door cabinet
Three self-closing doors keep two-thirds of the box sealed on any grab
One PVC-coated wire shelf behind each of the three doors
Holds a -10°F to 10°F freezing range across the wide interior
5/8 horsepower compressor delivers 6,200 BTU/h, the strongest in the line
The Serv-Ware UCF-72-HC Undercounter Freezer
The Serv-Ware UCF-72-HC is a three-door undercounter freezer with 18 cubic feet of frozen storage in a 71.5-inch cabinet. Built for a long, high-throughput line, it gives several cooks their own door while a stronger compressor holds the wide interior between -10°F and 10°F.
Frozen Capacity And Layout
At 18 cubic feet, this is the largest freezer in the line, with enough room to back a full station between deliveries. Three self-closing doors split the cabinet into thirds, each with its own PVC-coated wire shelf, so two-thirds of the box stays sealed on any single grab.
Cooling Performance
A bottom-mounted, self-contained compressor sits beneath the food and keeps the long cabinet at temperature. The 5/8 horsepower system delivers 6,200 BTU/h, the strongest cooling output in the line, and draws 6 amps from a standard 115-volt outlet to recover after heavy use.
R290 Refrigeration
The sealed system carries 3.88 ounces of R290, a hydrocarbon refrigerant with a far lower global-warming impact than older HFC gases. CFC-free foam insulates the walls and all three doors so the freeze holds across the wide cabinet between openings.
Build And Surfaces
Stainless steel covers the exterior for quick cleaning, while the interior pairs painted aluminum and ABS panels with a 304 stainless steel floor that takes heavy frozen loads end to end. All three magnetic gaskets pull out by hand, and the PVC-coated wire shelves resist rust in the freezer's humidity.
Controls And Setup
An electronic thermostat with a digital LED display keeps the holding temperature visible without opening a door. Automatic defrost runs every 6 hours and condensate evaporates on its own, so there is no drain to empty. The casters ship uninstalled, letting you set the unit on legs or roll the long cabinet for cleaning.
About Serv-Ware
Serv-Ware manufactures commercial refrigeration, cooking equipment, prep stations, sinks, shelving, and other back-of-house essentials for foodservice operations. The brand is known for offering a broad equipment portfolio that supports independent restaurants, chains, bakeries, convenience stores, and institutional kitchens. Serv-Ware focuses on practical designs that address everyday operational needs, with product lines that include reach-in refrigeration, prep tables, griddles, fryers, ranges, and ice machines. Its equipment is designed for common kitchen workflows where space, temperature control, and daily production demands matter. Serv-Ware’s reputation is built around dependable performance, straightforward operation, and a value-oriented price point.
Features & Benefits
-
18 cubic feet of frozen storage in a 71.5-inch three-door cabinet
-
Three self-closing doors keep two-thirds of the box sealed on any grab
-
One PVC-coated wire shelf behind each of the three doors
-
Holds a -10°F to 10°F freezing range across the wide interior
-
5/8 horsepower compressor delivers 6,200 BTU/h, the strongest in the line
-
Plugs into a standard kitchen circuit despite its size
-
R290 hydrocarbon refrigerant cools with a low global-warming footprint
-
Electronic thermostat with a digital LED display
-
Automatic 6-hour defrost and self-evaporating condensate
-
304 stainless steel interior floor handles heavy loading end to end
-
Tool-free magnetic gaskets and uninstalled casters on the long cabinet
Resources & Downloads
See all from Serv-Ware
Specifications
| Storage Capacity | 18 cu. ft. |
| Temperature Range | -10°F to 10°F |
| Number of Doors | 3 |
| Number of Shelves | 3 (1 per door) |
| Shelf Material | PVC-coated wire |
| Exterior Material | Stainless steel |
| Interior Material | Painted aluminum, ABS side panels |
| Interior Floor | 304 stainless steel |
| Insulation | CFC-free foam |
| Refrigerant | R290 |
| Refrigerant Charge | 3.88 oz. |
| Cooling Capacity | 6200 BTU/H |
| Horsepower | 5/8 HP |
| Compressor Location | Bottom-mounted |
| Defrost | Automatic, every 6 hours |
| Condensate | Automatic evaporation |
| Voltage | 115 V |
| Amperage | 6 A |
| Frequency | 60 Hz |
| Phase | 1 |
| Plug Type | NEMA 5-15P |
| Overall Dimensions (W x D x H) | 71.5" W x 29.9" D x 35.5" H |
| Shipping Weight | 355 lbs. |
Manufacturer's Warranty
-
3 Year
Labor
-
3 Year
Parts
-
5 Year
Compressor
Certifications & Approvals
-
ETL US & Canada
-
ETL Sanitation
