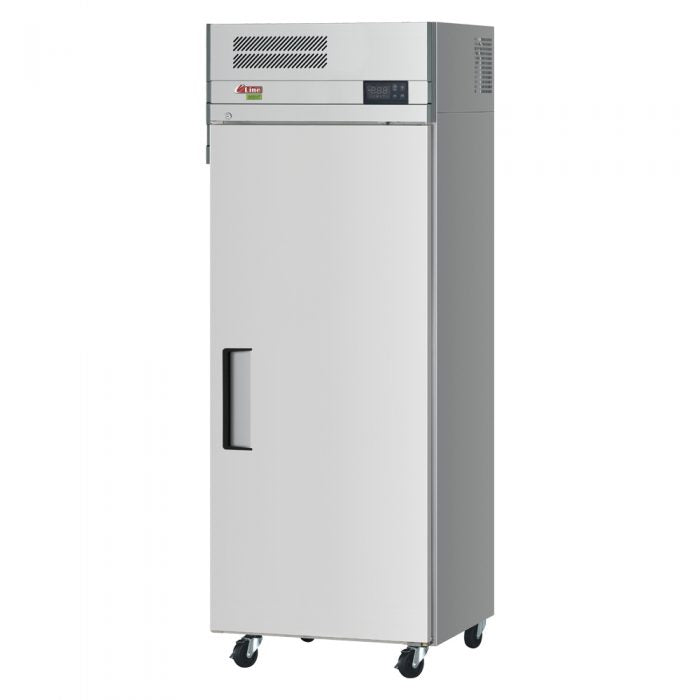

The Turbo Air ER24-1-N-V Reach-In Refrigerator
Digital temperature control & monitor system
• Keep food products safe by maintaining constant temperatures.
• Alarms that sound when doors are not sealed shut; protect against food spoilage that originates from cold air leaks.
• Early warning alarm program detects issues before malfunction occurs.
• Digital display allows for easy monitoring.
• Programs interpret the condition of refrigeration systems by self-diagnosis.
• Rapid cool-down function (Turbo Cooling).
• Automatic evaporator fan motor delays.
Hydrocarbon refrigerants (R-600a)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).
Hot gas condensate system
Through Turbo Air’s creative innovation, the condensate system surfaces have been specially treated to resist corrosion. This not only increases efficiency without the risk of refrigerant leakage from corrosion, but also prevents the overflow of condensate water.
Cabinet construction
E-Line series model boasts a stainless steel exterior (door) with AL exterior sides (galvanized steel top, bottom, and back). Interior has a stainless steel bottom with AL interior (walls, door liners, and top duct).
LED interior lighting
Adjustable, heavy duty, PE (polyethylene) coated wire shelves
High-density polyurethane insulation
The entire cabinet structure and solid doors are foamed-in-place using high density, CFC free polyurethane insulation.
Self-contained system
Standard 4” dia. swivel casters with locks on the front set
Door locks standard
Solid and sturdy grille design
Top mount compressor
Anti-corrosion coated evaporator standard feature
Refrigerator holds 33°F ~ 38°F for the best in food preservation
Standard Features
• Self-contained system
• Standard 4” dia. swivel casters with locks on the front set
• Door locks standard
• Magnetic door gaskets
• Solid and sturdy grille design
Product Features
-
reach-in
-
one section
-
21.9 cu.ft. capacity
-
28-3/4″W x 30-3/4″D x 78″H
-
top mount self-contained refrigeration (1) stainless steel solid door with lock
-
(3) adjustable PE coated wire shelves
-
digital temperature control & monitor system
-
33°F – 38°F temperature range
-
LED interior lighting
-
stainless steel & aluminum interior
-
stainless steel exterior door
-
aluminum exterior sides (galvanized steel top
-
back & bottom)
-
R-600a Hydrocarbon refrigerant
-
1/8 HP
-
115v/60/1-ph
-
1.5 amps
-
cord with NEMA 5-15P
-
cETLus
-
ETL-Sanitation
-
ENERGY STAR®
Free Shipping
Usually ships in 2 Business Days
reach-in
one section
21.9 cu.ft. capacity
28-3/4″W x 30-3/4″D x 78″H
top mount self-contained refrigeration (1) stainless steel solid door with lock
Product Resources
See all from Turbo Air
Specifications
| Voltage | 115/60/1 |
| Plug Type | NEMA 5-15P |
| Full Load Amperes | 1.5 |
| Compressor HP | 1/8 |
| Feed Wires with Ground | 3 |
| Cord Length (ft.) | 9 |
| Refrigerant | R-600a |
| Number of Doors | 1 |
| Number of Racks Accepted | 1 |
| Cubic Feet | 21.9 |
| Exterior Length Overall (in.) | 28 3/4 (730mm) |
| Exterior Depth Overall (in.) * | 30 3/4 (780mm) |
| Exterior Height Overall (in.) | 78 (1980mm) |
| Interior Length Overall (in.) | 24 3/4 (630mm) |
| Interior Depth Overall (in.) | 24 3/4 (630mm) |
| Interior Height Overall (in.) | 53 7/8 (1368mm) |
| Number of Shelves | 3 |
| Shelf Size (L x D) (in.) | 23 3/8 x 23 |
| Net Weight (lbs.) | 20623 1/4 (1607mm) |
| Gross Weight (lbs.) | 222 |
