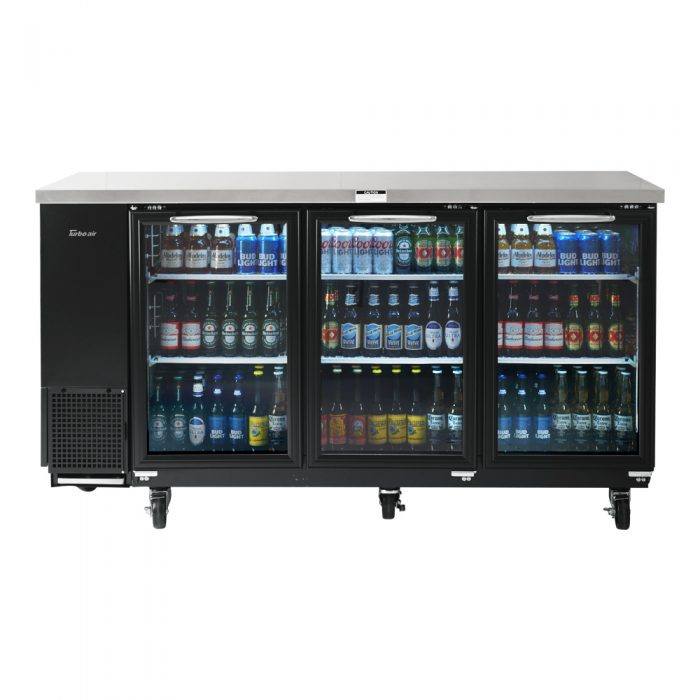

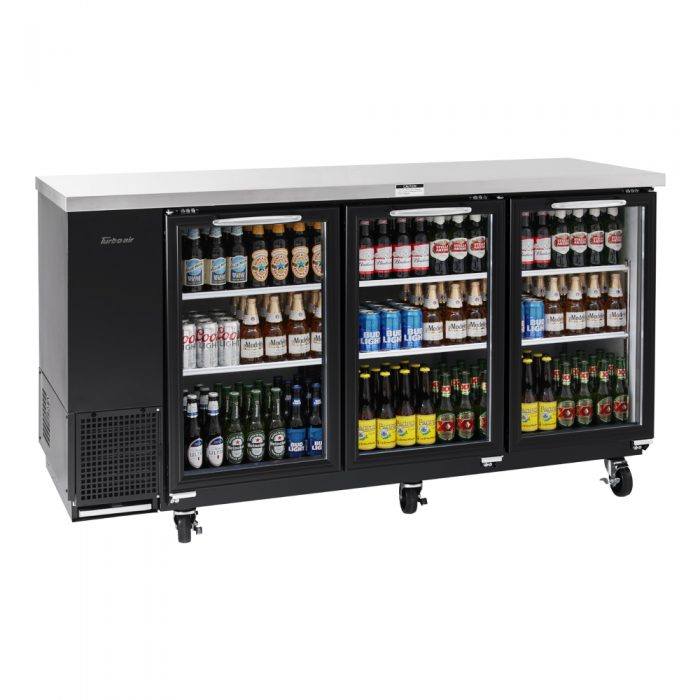

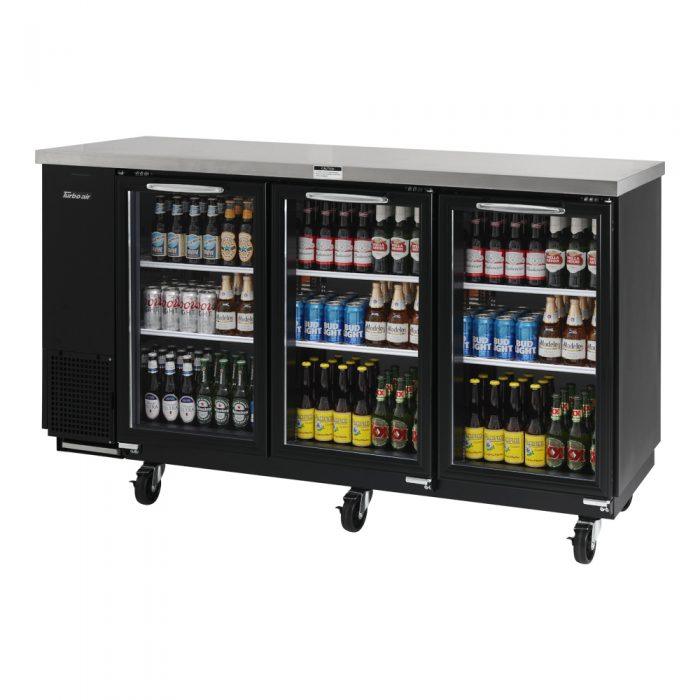

The Turbo Air TBB-24-72SG-N Narrow Back Bar Cooler

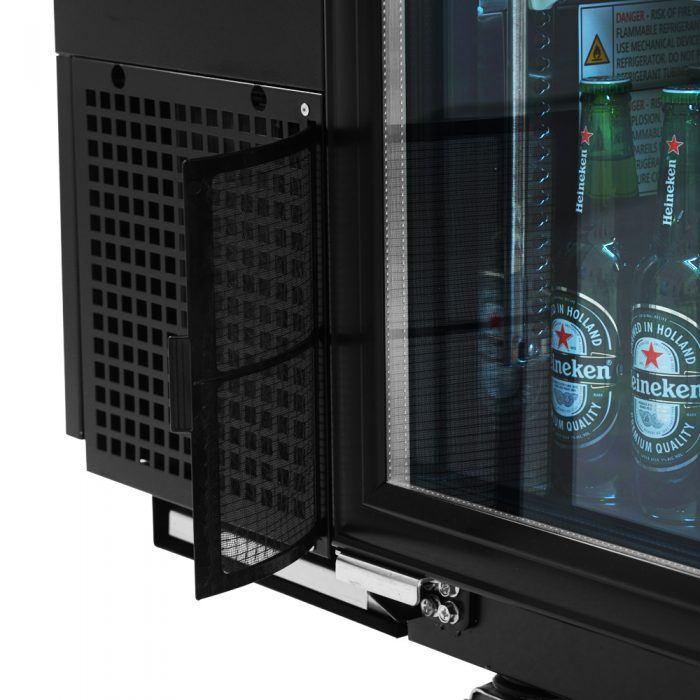

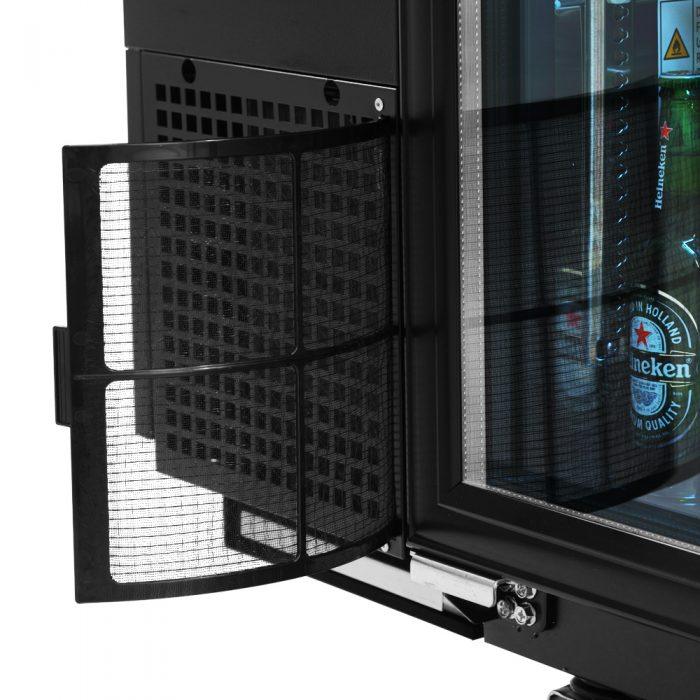

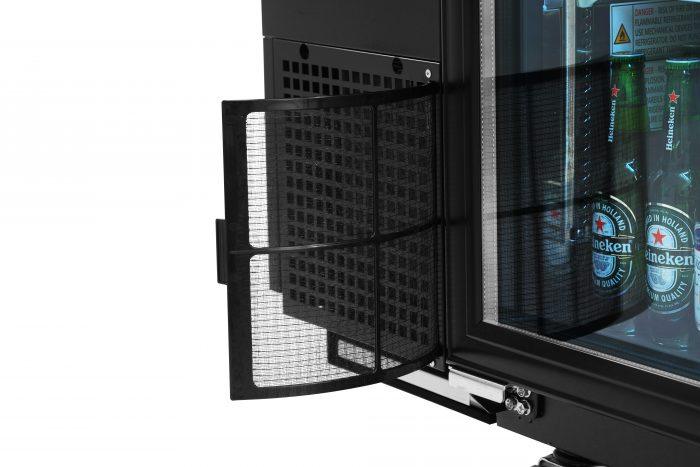

Equipped with easy-to-clean Air Filter
The accumulation of dust in the condenser causes failures and/or breakdowns in refrigeration. Refrigeration operate normally until they accumulate a certain amount of dust. When they reach over their limit, performance will drop rapidly, resulting in damages and possible disposal of stored goods. This is why all refrigeration manufacturers require the condenser to be cleaned at least once a month for warranty to remain valid. Fortunately for Turbo Air, this process is simplified due to the frontal access air filter device. Users only need to pull out the filter and vacuum lightly to remove the dust. Simply place it back into position when complete.
Hydrocarbon Refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).
Forced air cooling system
Fast cooling and balanced temperature throughout the cabinet.
Stainless steel countertop and interior
The exterior of cabinet is constructed with heavy gauge reinforced stainless steel countertop and wear-resistant black vinyl coated galvanized steel. Interior is stainless steel except galvanized steel top. Turbo Air Back Bar model guarantees utmost in cleanliness and long product life. It can also add a touch of style to the most refined setting.
Ergonomically designed doors
Customers’ fatigue fades away with easy grip handles and doors that open effortlessly. These features along with self-closing doors make this the ultimate choice in customer convenience.
High-density polyurethane insulation
The entire cabinet structure is foamed-in-place using high density, HCFC free polyurethane insulation.

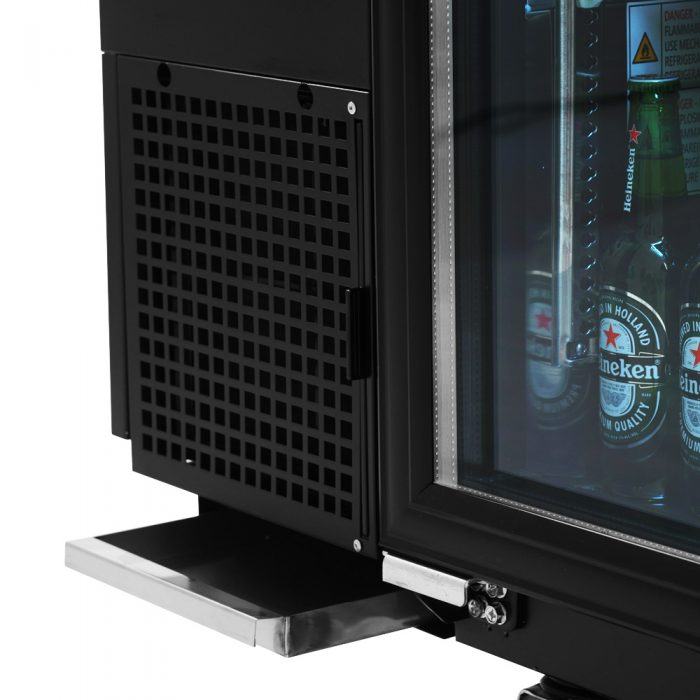

Side mount compressor unit
With compressors positioned on the side of the unit, our refrigerators can now be serviced without being moved. Our innovative, front breathing feature also allows this model to be highly efficient in narrow spaces.
LED interior lighting
Double pane glass doors with Low-E glass

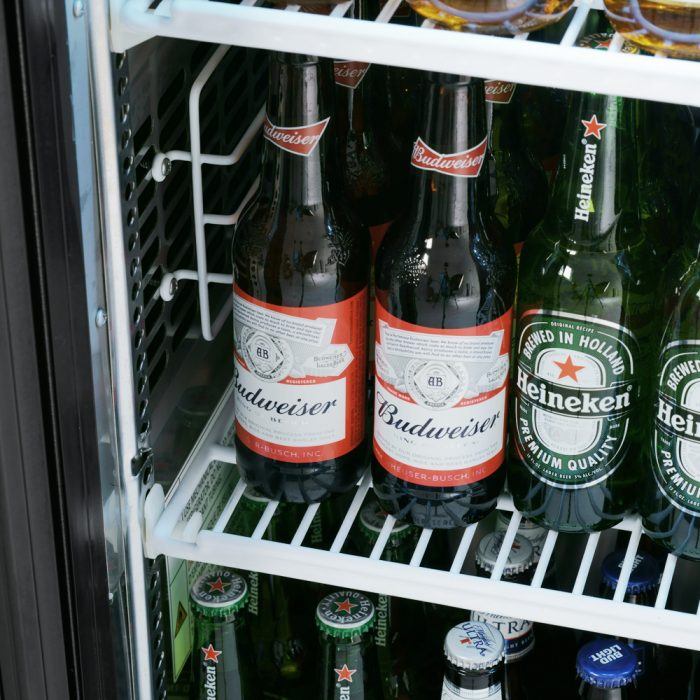

Adjustable, heavy duty, PE (polyethylene) coated wire shelves
Refrigerator holds 33°F ~ 38°F for the best in beverage preservation
STANDARD FEATURES
• Anti-corrosion coated evaporator
• Self-contained system
• 4” dia. swivel casters standard
• Door locks standard
Product Features
-
Two-section
-
Glass Doors
-
73.13″ W x 24.5″ D x 35.38″ H
-
20.62 cu.ft.
-
Self-contained
-
Side mount
-
Front breathing
-
Easy-to-clean Air-filter equipped
-
(6) PE coated adjustable shelves
-
LED interior light
-
Black laminated exterior & stainless steel countertop
-
Stainless steel interior floor
-
White powder coated galvanized steel interior top & walls
-
(2) glass doors-double pane
-
4″ swivel casters (standard)
-
1/3 HP
-
115v/60/1
-
2.9 Amps
-
Cord with NEMA 5-15P
-
ETL-Sanitation
-
cETLus
Free Shipping
Usually ships in 2 Business Days
Two-section
Glass Doors
73.13″ W x 24.5″ D x 35.38″ H
20.62 cu.ft.
Self-contained
Product Resources
See all from Turbo Air
Specifications
| Voltage | 115/60/1 |
| Plug Type | NEMA 5-15P |
| Full Load Amperes | 2.9 (SG) / 2.0 (SB) |
| Compressor HP | 1/3(SG) 1/5(SB) |
| Refrigerant | R-290(SG) R-600a(SB) |
| Cord Length (ft.) | 8.5 |
| Lamp (W) | 9 |
| Cubic Feet | 20.62 |
| Exterior Length Overall (in.) | 73 1/8 (1858mm) |
| Exterior Depth Overall (in.)* | 24 1/2 (623mm) |
| Exterior Height Overall (in.) | 35 3/8 (900mm) |
| Number of Swing Doors | 3 |
| Number of Shelves | 6 |
| Shelf size (L x D) (in.) | 18 1/2 x 18 (L/R) |
| 20 1/4 x 18 (M) | |
| Number of Casters | 6EA |
| Net Weight (lbs.) | 295(SG) / 276(SB) |
| Gross Weight (lbs.) | 339(SG) / 333(SB) |
Warranty
Labor
Parts
Compressor
