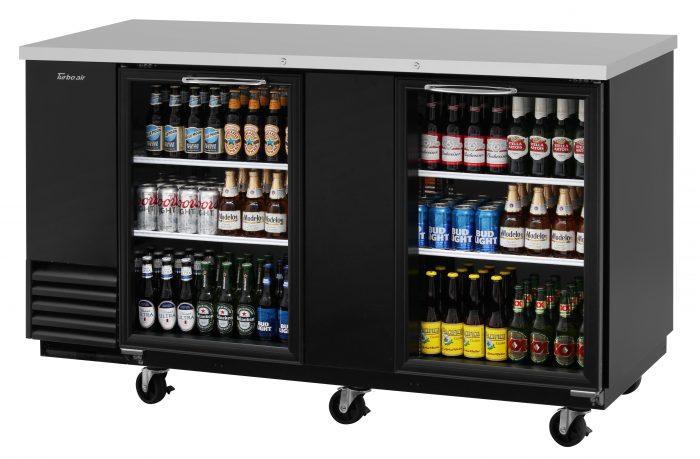

The Turbo Air TBB-3SG-N Back Bar Cooler
Self-Cleaning Condenser
The accumulation of dust in the condenser can cause the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products inside. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.
Hydrocarbon Refrigerants (R-290 / R-600a)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).
Forced air cooling system
Fast cooling and balanced temperature throughout the cabinet.
Stainless steel countertop and interior
The exterior of cabinet is constructed with heavy gauge reinforced stainless steel countertop and wear-resistant black vinyl coated galvanized steel. Interior is stainless steel except galvanized steel top. Turbo Air Back Bar model guarantees utmost in cleanliness and long product life. It also can add a touch of style to the most refined setting.
Ergonomically designed doors
Customers’ fatigue fades away with easy grip handles and doors that open effortlessly. These features along with self-closing doors make this the ultimate choice in customer convenience.
High-density polyurethane insulation
The entire cabinet structure is foamed-in-place using high density, HCFC free polyurethane insulation.
Side mount compressor unit
With compressors positioned on the side of the unit, our refrigerators can now be serviced without being moved. Our innovative, front breathing feature also allows this model to be highly efficient in narrow spaces.
LED interior lighting
Double pane glass doors with Low-E glass (SG models)
Adjustable, heavy duty, PE (polyethylene) coated wire shelves
Refrigerator holds 33°F ~ 38°F for the best in beverage preservation
STANDARD FEATURES
• Anti-corrosion coated evaporator
• Self-contained system
• 4” dia. swivel casters standard
• Door locks standard
Product Features
-
Self-cleaning condenser equipped
-
Black vinyl exterior and stainless steel countertop
-
Painted galvanized steel interior with reinforced stainless steel floor
-
(2) double pane glass door with Low-E glass
-
LED interior lighting
-
(4) adjustable
-
heavy-duty PE coated shelves with (2) sub shelves
-
Self-contained system
-
Forced air cooling system
-
Door lock standard
-
Anti-corrosion coated evaporator
-
4″ dia. swivel casters
-
23 cu.ft.
-
115v/60/1
-
NEMA 5-15P
-
2.8 Amps
-
1/3 HP
-
ETL-Sanitation
-
cETLus
Free Shipping
Usually ships in 2 Business Days
Self-cleaning condenser equipped
Black vinyl exterior and stainless steel countertop
Painted galvanized steel interior with reinforced stainless steel floor
(2) double pane glass door with Low-E glass
LED interior lighting
Product Resources
See all from Turbo Air
Specifications
| Voltage | 115/60/1 |
| Plug Type | NEMA 5-15P |
| Full Load Amperes | 2.8 (SG) / 1.9 (SB) |
| Compressor HP | 1/3(SG) / 1/5(SB) |
| Refrigerant | R-290 (SG) / R-600a (SB) |
| Cord Length (ft.) | 8.5 |
| Lamp (W) | 16.5 |
| Cubic Feet | 23 |
| Exterior Length Overall (in.) | 69 (1753mm) |
| Exterior Depth Overall (in.)* | 27 1/4 (692mm) |
| Exterior Height Overall (in.) | 37 1/8 (945mm) |
| Number of Swing Doors | 2 |
| Number of Shelves (Number of Sub Shelves) | 4 (2) |
| Shelf size (L x D) (in.) | (R)25 x 19 3/8, (L)29 1/4 x 19 3/8 |
| 10 | |
| Number of Casters | 6EA |
| Net Weight (lbs.) | 298(SG) / 308(SB) |
| Gross Weight (lbs.) | 385(SG) / 369(SB) |
Warranty
Labor
Parts
Compressor
