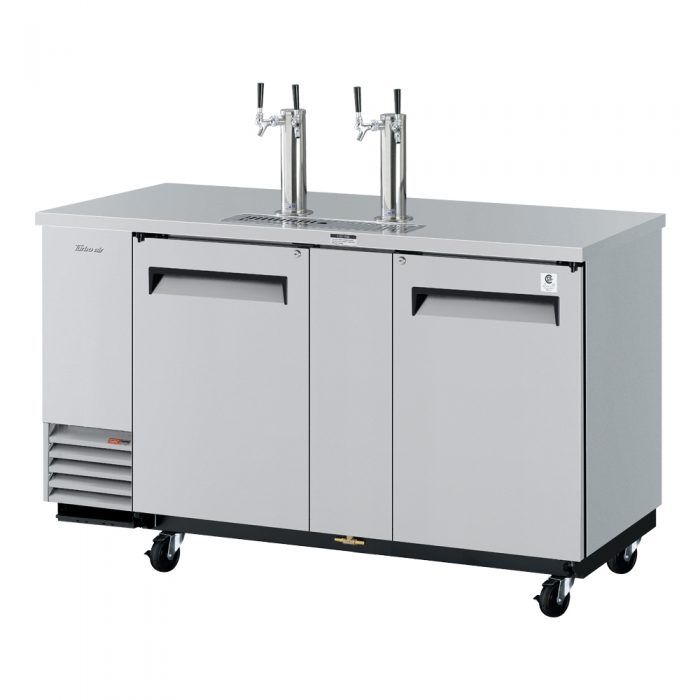

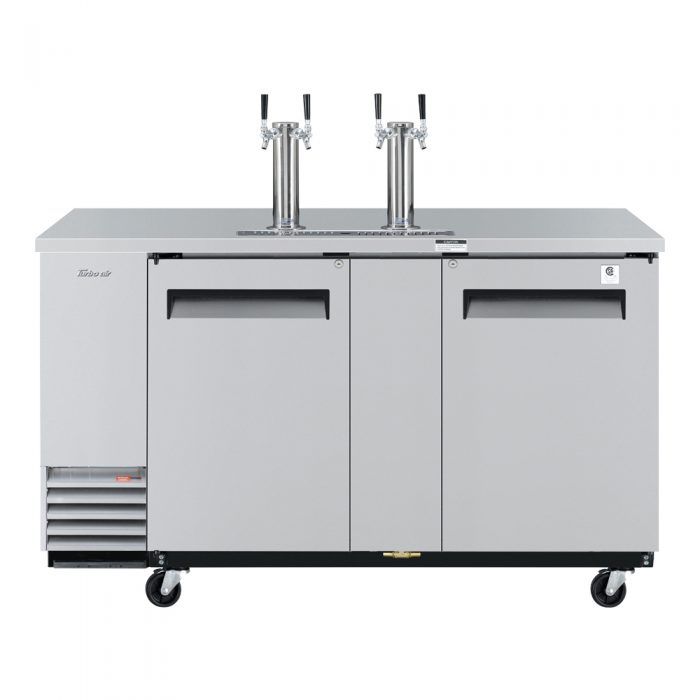

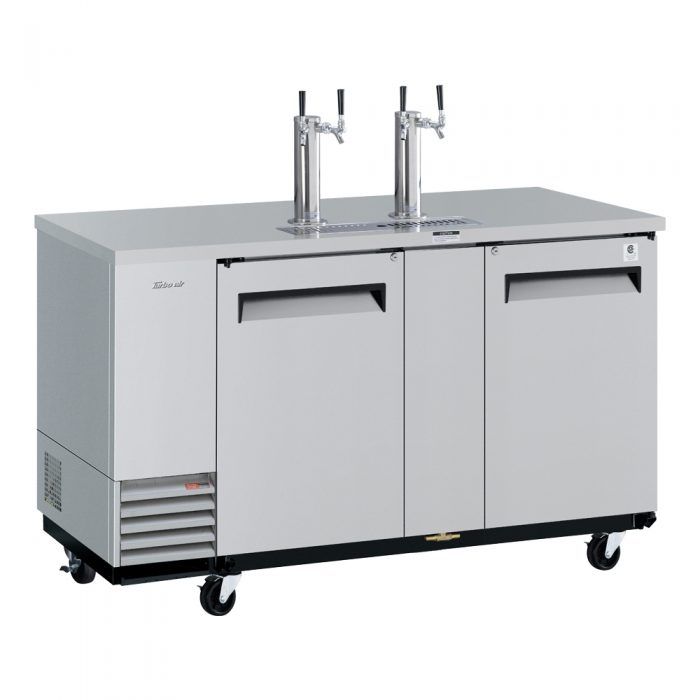

The Turbo Air TBD-3SD-N Beer Dispenser
Self-Cleaning Condenser
The accumulation of dust in the condenser can cause the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products inside. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.
Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).
Stainless steel cabinet construction
Super Deluxe (SD) models boast a stainless steel exterior (except galvanized steel back and bottom). SB models have an attractive wear-resistant black vinyl exterior. Heavy gauge stainless steel countertop is perfect for sanitation and durability. Interior is stainless steel except galvanized steel top. Spacious inside construction with 32″ inner height accomodates various sizes of beer kegs. Turbo Air Beer Dispenser model guarantees the utmost in cleanliness and long product life. It also adds a touch of style to the most refined setting.
Forced air cooling system
Fast cooling and balanced temperature throughout the cabinet.
High-density polyurethane insulation
The entire cabinet structure is foamed-in-place using high density, HCFC free polyurethane insulation.
Ergonomically designed doors
Customers’ fatigue fades away with easy grip handles and doors that open effortlessly. These features along with self-closing doors make this the ultimate choice in customer convenience.

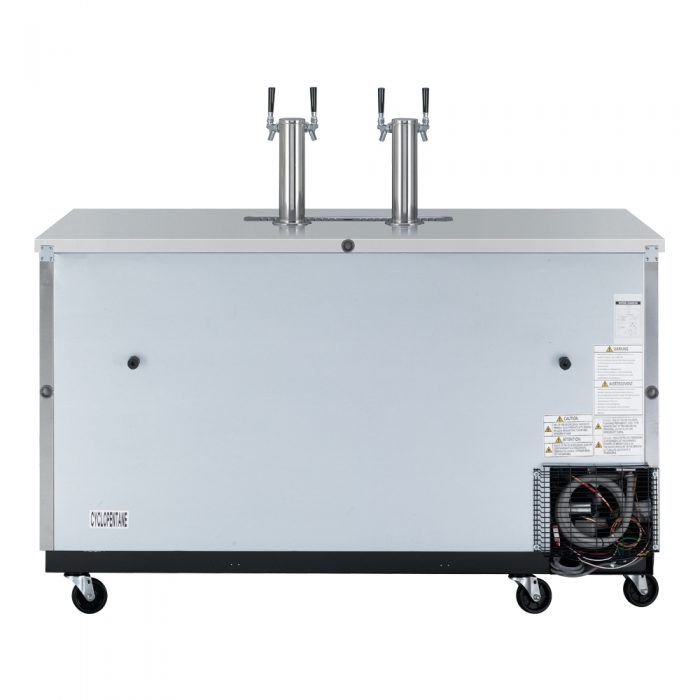

Side mount compressor unit
With compressors positioned on the side of the unit, our refrigerators can now be serviced without being moved. Our innovative, front breathing feature also allows this model to be highly efficient in narrow spaces.
3″ diameter stainless steel insulated beer tower
Comes standard with a four-way tapper manifold
Beer dispenser holds 33°F ~ 38°F for the best in beverage preservation
STANDARD FEATURES
• Anti-corrosion coated evaporator
• Double faucet beer tower standard
• Door locks standard
• Self-contained system
• 4” dia. swivel casters standard
Product Features
-
Self-cleaning condenser equipped
-
Stainless steel exterior and interior except galvanized steel top
-
(2) swing door
-
Four-way tapper manifold
-
3″ dia. stainless steel insulated beer tower
-
Self-contained system
-
Forced air cooling system
-
Door lock standard
-
Anti-corrosion coated evaporator
-
4″ dia. swivel casters
-
(3) 1/2 barrels capacity
-
115v/60/1
-
NEMA 5-15P
-
2.5 Amps
-
1/3 HP
-
ETL-Sanitation
-
cETLus
Free Shipping
Usually ships in 2 Business Days
Self-cleaning condenser equipped
Stainless steel exterior and interior except galvanized steel top
(2) swing door
Four-way tapper manifold
3″ dia. stainless steel insulated beer tower
Product Resources
See all from Turbo Air
Specifications
| Voltage | 115/60/1 |
| Plug Type | NEMA 5-15P |
| Full Load Amperes | 2.5 |
| Compressor HP | 1/3 |
| Refrigerant | R-290 |
| Cord Length (ft.) | 8.5 |
| Lamp (w) | 25W |
| Net Capacity (cu.ft.) | 25.4 |
| Exterior Length Overall (in.) | 69 1/8 (1758mm) |
| Exterior Depth Overall (in.)* | 27 1/8 (691mm) |
| Exterior Height Overall (in.) | 37 (940mm) |
| Number of Swing Doors | 2 |
| Number of Casters | 6EA |
| Net Weight (lbs.) | 298 |
| Gross Weight (lbs.) | 320 |
Warranty
Labor
Parts
Compressor
