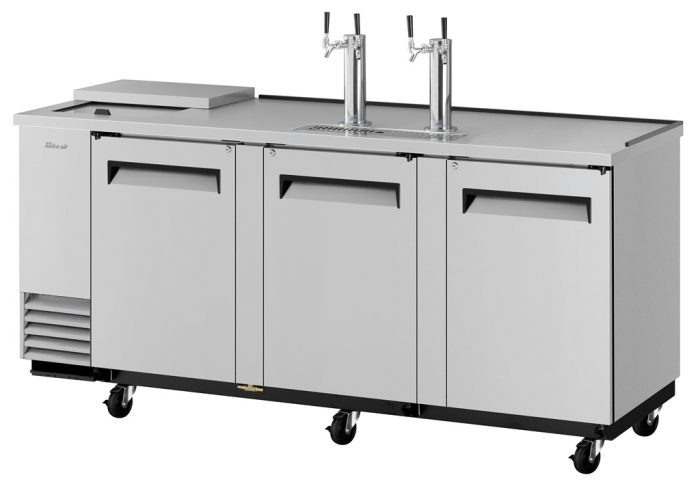

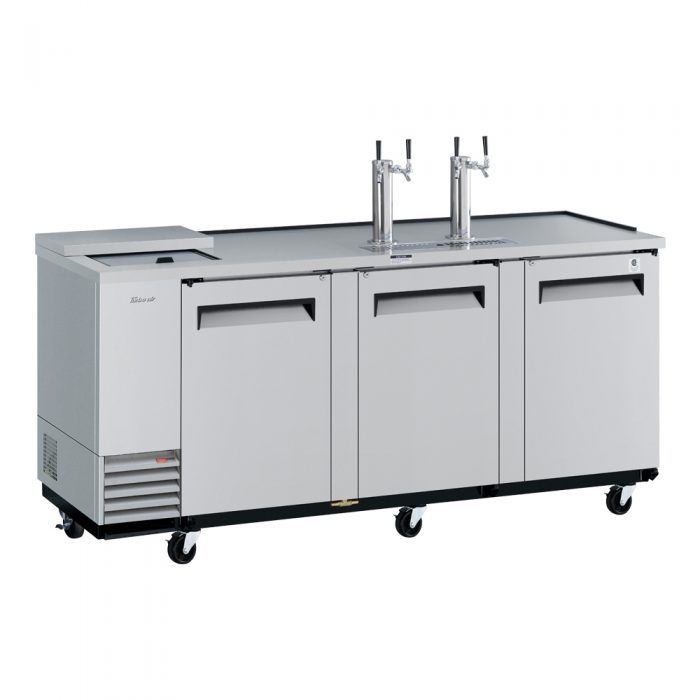

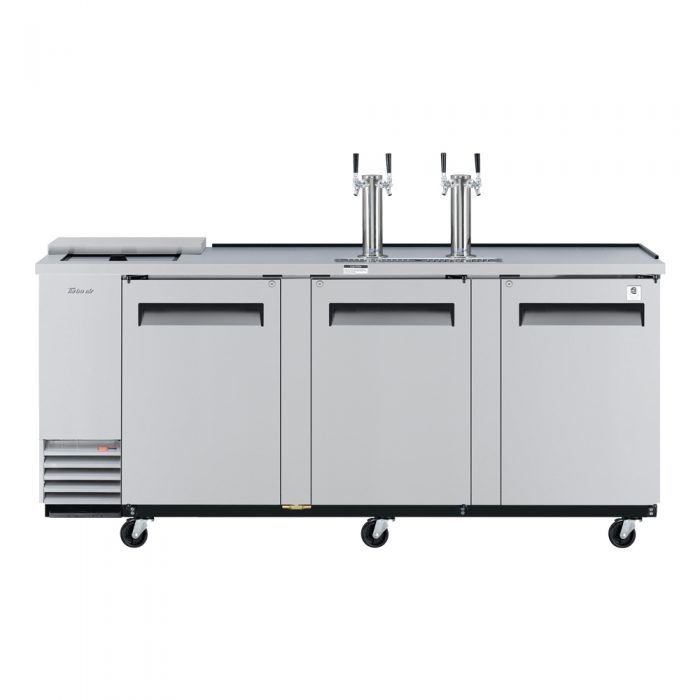

The Turbo Air TCB-4SD-N Beer Dispenser

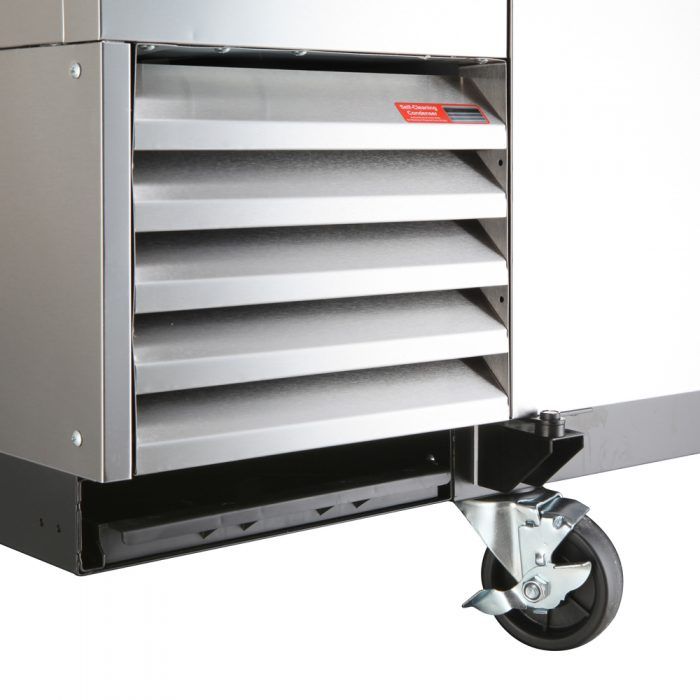

Self-Cleaning Condenser
The accumulation of dust in the condenser can cause the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products in refrigerators. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.
Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).
Forced air cooling system
Fast cooling and balanced temperature throughout the cabinet.
Stainless steel cabinet construction
Super Deluxe (SD) models boast a stainless steel exterior (except galvanized steel bottom and back). SB models have an attractive wear-resistant black vinyl exterior. Heavy gauge stainless steel countertop and club top lids are perfect for sanitation and durability. Interior is stainless steel except galvanized steel top. Spacious inside construction with 32″ inner height accommodates various sizes of beer kegs. Turbo Air Club Top model guarantees the utmost in cleanliness and long product life. It also adds a touch of style to the most refined setting.
High-density polyurethane insulation
The entire cabinet structure is foamed-in-place using high density, HCFC free polyurethane insulation.
Club top (TCB) models provide easy access to the interior area
Club Top is a combined functional cabinet of direct draw cold beer dispenser and glass chiller. This convenient model provides easy access to interior storage area of the refrigerator for chilled beer glasses.

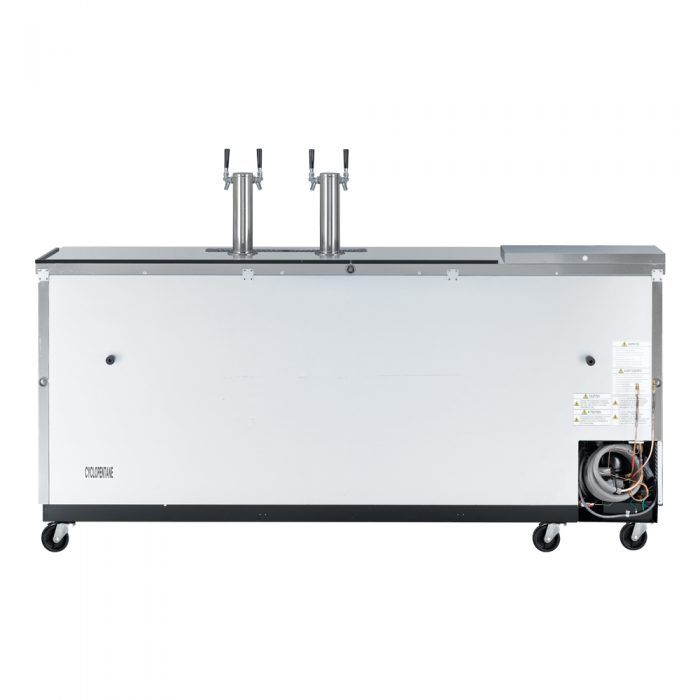

Side mount compressor unit
With compressors positioned on the side of the unit, our refrigerators can now be serviced without being moved. Our innovative, front breathing feature also allows this model to be highly efficient in narrow spaces.

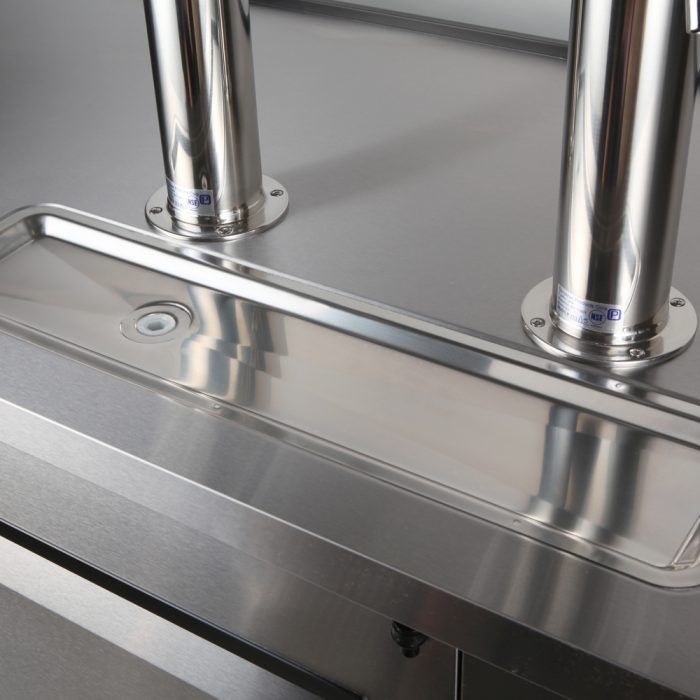

3″ diameter stainless steel insulated beer towers
Comes standard with a four-way tapper manifold

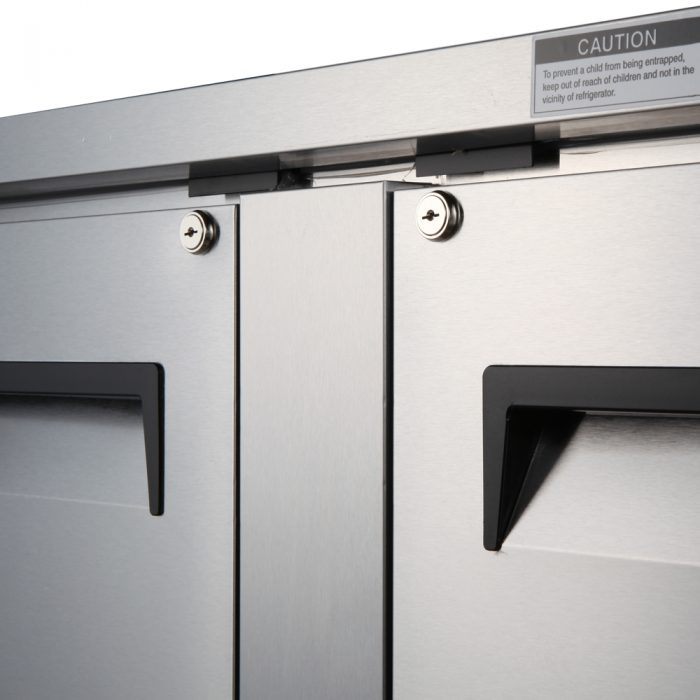

Ergonomically designed doors
Easy to glide stainless steel club top lids
Club top beer dispenser holds 33°F ~ 38°F for the best in beverage preservation
STANDARD FEATURES
• Anti-corrosion coated evaporator

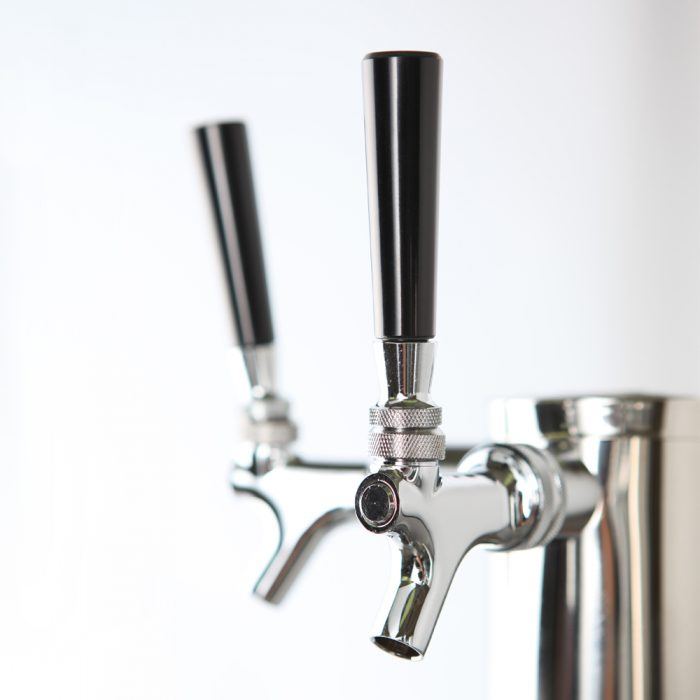

• Double faucet beer tower standard
• Door locks standard
• Self-contained system
• 4” dia. swivel casters standard
Product Features
-
Self-cleaning condenser equipped
-
Stainless steel exterior and interior except galvanized steel top
-
(3) swing door
-
Stainless steel club top lid
-
Four-way tapper manifold
-
3″ dia. stainless steel insulated beer tower
-
Self-contained system
-
Forced air cooling system
-
Door lock standard
-
Anti-corrosion coated evaporator
-
4″ dia. swivel casters
-
(4) 1/2 barrels capacity
-
115v/60/1
-
NEMA 5-15P
-
2.6 Amps
-
1/3 HP
-
ETL-Sanitation
-
cETLus
Free Shipping
Usually ships in 2 Business Days
Self-cleaning condenser equipped
Stainless steel exterior and interior except galvanized steel top
(3) swing door
Stainless steel club top lid
Four-way tapper manifold
Product Resources
See all from Turbo Air
Specifications
| Voltage | 115/60/1 |
| Plug Type | NEMA 5-15P |
| Full Load Amperes | 2.6 |
| Compressor HP 1/3 | 23 (584mm) |
| Refrigerant | R-290 |
| Cord Length (ft.) | 8.5 |
| Net Capacity (cu.ft.) | 36.47 |
| Ext. Length Overall (in.) | 90 3/8 (2296mm) |
| # of Swing Doors | 3 |
| # of Casters | 6EA |
| Net Weight (lbs.) | 425 |
| Gross Weight (lbs.) 445 | 22 |
