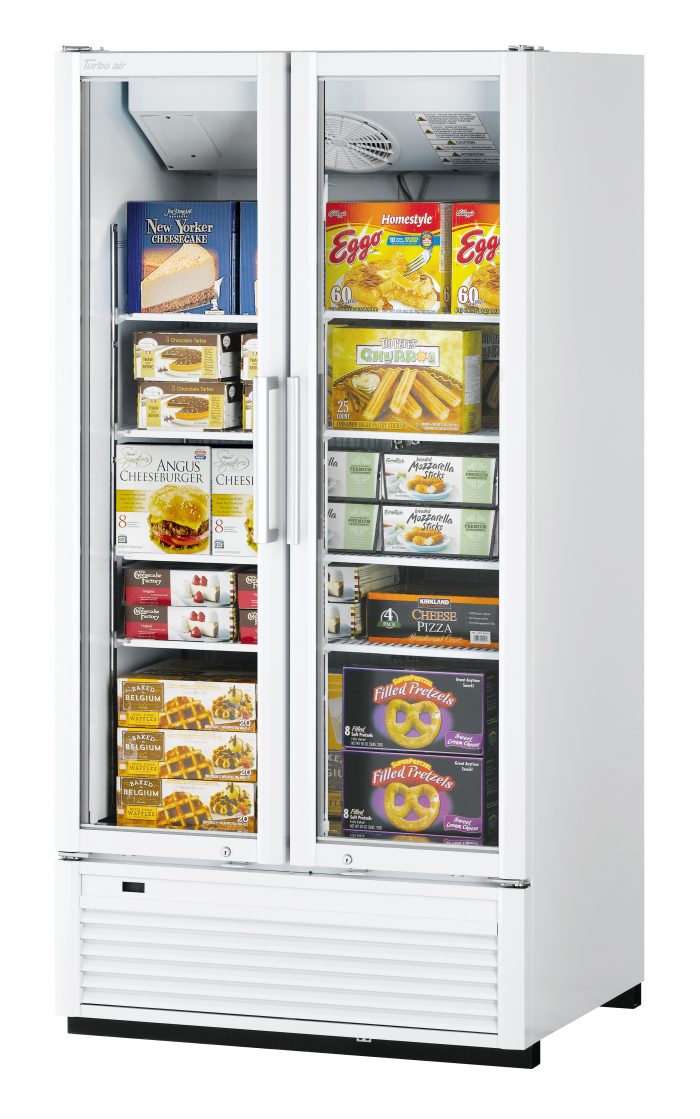

The Turbo Air TGF-35SDH-N Merchandiser Freezer
Self-Cleaning Condenser
The accumulation of dust in the condenser can cause the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products in refrigerators. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.
Hydrocarbon Refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet the new standards of the EPA and DOE in 2017. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).
Energy conserving fan control
Utilizing algorithmic air circulation for optimal temperature levels, our innovative fan control system conserves energy by at least 15% and increases compressor life by up to 30%.
Digital temperature control & monitor system
• Keep food products safe by maintaining constant temperatures.
• Alarms that sound when doors are not sealed shut; protect against food spoilage that originate from cold air leaks.
• Early Warning Alarm program detect issues before malfunction occurs.
• Digital display allows for easy monitoring.
• Programs interpret the condition of refrigeration systems by self-diagnosis.
• Rapid cool-down function (Turbo freeze).
• Smart defrost system will defrost as needed.
• Automatic evaporator fan motor delays.
No electrical cabinet heater is needed
Turbo Air is the first in the industry to replace a frame heater with a method of using compressor-produced heat. This eliminates any unnecessary energy consumption while providing efficient freezing performance.
Triple pane heated glass doors
Equipped with unique triple-pane heated glass doors which enhance energy efficiency by preventing heat transfers and minimizing condensation. Lightweight door construction reduces door maintenance, bushing wear, and facilitates smooth door opening.
High-density polyurethane insulation
The entire cabinet structure is foamed-in-place using high density, HCFC free polyurethane insulation.
LED interior lighting
Freezer holds -10°F ~ 5°F for the best in frozen food preservation
STANDARD FEATURES
• Anti-corrosion coated evaporator
• Adjustable PE (polyethylene) coated wire shelves
• Door locks standard

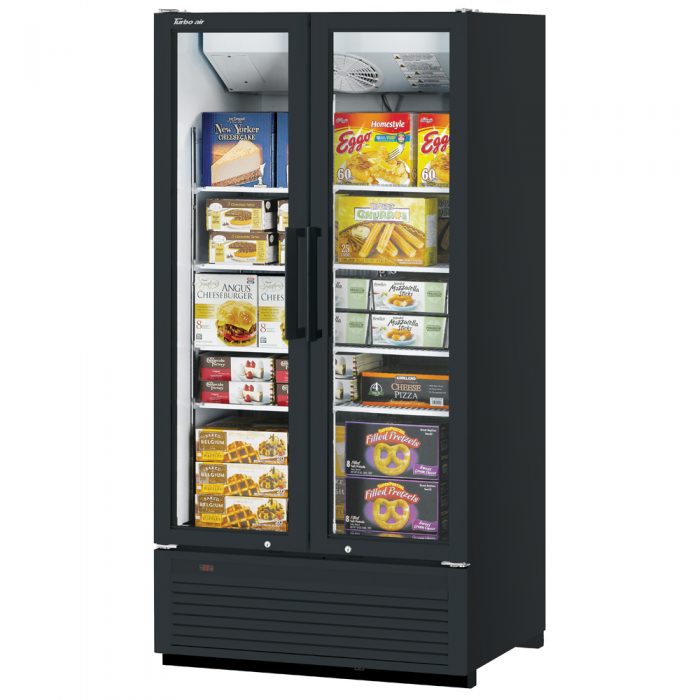

• Two color options available (standard): white cabinet (W), black cabinet with black color trim (B).
Product Features
-
Two-section
-
Self-Cleaning Condenser
-
LED interior lighting
-
(2) triple pane heated glass door
-
(8) adjustable
-
heavy-duty PE coated shelves
-
Shadow free LED AD panel
-
Anti-corrosion coated evaporator
-
Door lock standard
-
Two color option-white(W)
-
black(B)
-
30.94 cu.ft.
-
115v/60/1
-
NEMA 5-20P
-
6.8Amps
-
3/4 HP
-
ETL-Sanitation
-
cETLus
Free Shipping
Usually ships in 2 Business Days
Two-section
Self-Cleaning Condenser
LED interior lighting
(2) triple pane heated glass door
(8) adjustable
Product Resources
See all from Turbo Air
Specifications
| Voltage | 115/60/1 |
| Plug Type | NEMA 5-20P |
| Full Load Amperes | 6.8 |
| Compressor HP | 2/3 |
| Cord Length (ft.) | 7 |
| Refrigerant | R-290 |
| Number of Doors | 2 |
| Cubic Feet | 30.9 |
| Exterior Length Overall (in.) | 39 1/2 (1004mm) |
| Exterior Depth Overall (in.)* | 31 7/8 (809mm) |
| Exterior Height Overall (in.) | 77 (1956mm) |
| Interior Length Overall (in.) | 35 5/8 (904mm) |
| Interior Depth Overall (in.) | 27 1/2 (699mm) |
| Interior Height Overall (in.) | 52 3/8 (1331mm) |
| Number of Shelves | 8 |
| Shelf Size (L x D) (in.) | 17 x 22 1/2 |
| Net Weight (lbs.) | 454 |
| Gross Weight (lbs.) | 519 |
Warranty
Labor
Parts
Compressor
