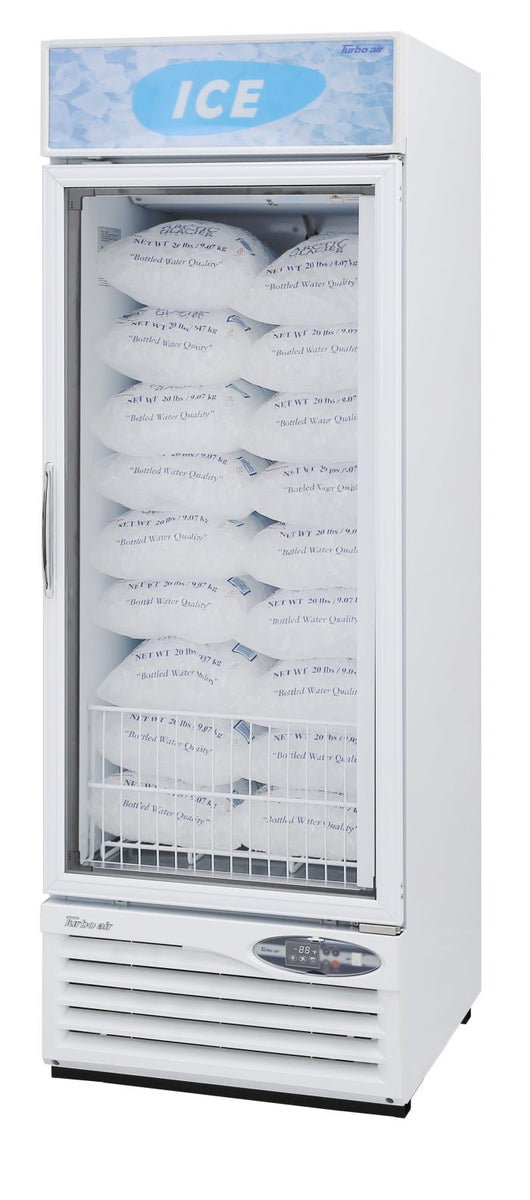

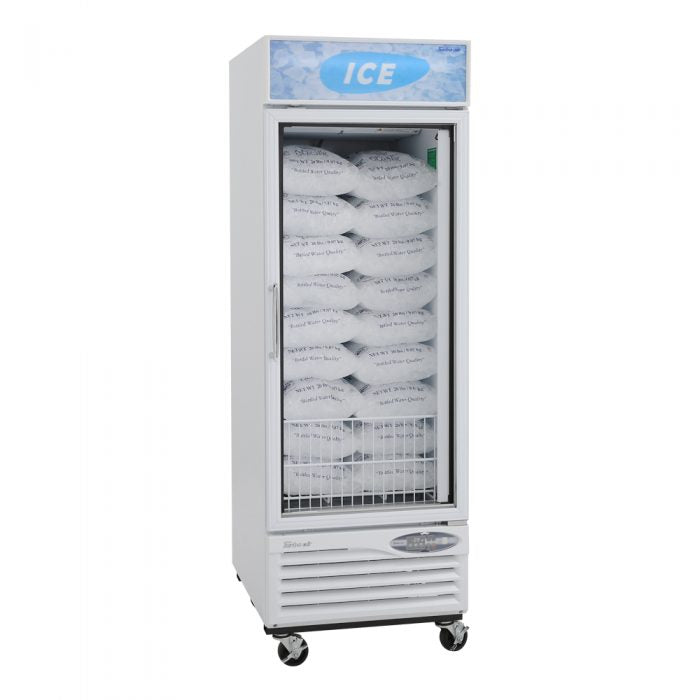

The Turbo Air TGIM-23W-N Ice Merchandiser

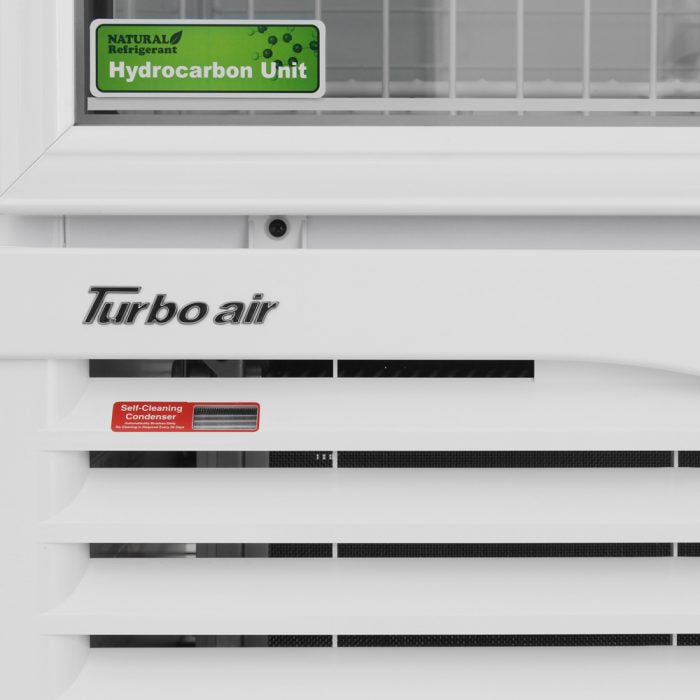

Self-Cleaning Condenser
The accumulation of dust in the condenser causes failures and/or breakdowns in refrigeration. Refrigerators operate normally until they accumulate a certain amount of dust. When they reach over their limit, performance drops rapidly, resulting in damage to and possible disposal of stored goods. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.
Hydrocarbon Refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).

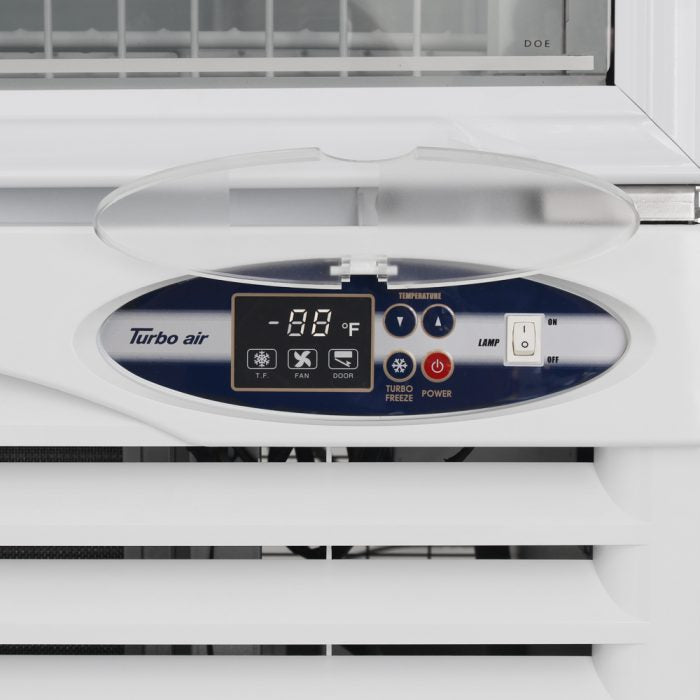

Digital temperature control & monitor system
• Keep food products safe by maintaining constant temperatures.
• Alarms that sound when doors are not sealed shut; protect against food spoilage that originate from cold air leaks.
• Digital display allows for easy monitoring.
• Programs interpret the condition of refrigeration systems by self-diagnosis.
• Rapid cool-down function (Turbo freeze)
• Smart defrost system will defrost as needed to allow maximum energy savings.
• Automatic evaporator fan motor delays.
Ice stays frozen even in hot climates
Turbo Air ice merchandisers are based on a freezer system that is adjusted to the ideal temperature range for bagged ice storage, whereas our competitors use refrigerator based systems. This system maintains an avg. temperature of 12°F or lower, which eliminates the problem of ice melting during hot weather conditions.
Triple pane heated glass doors
Equipped with unique triple-pane heated glass doors which enhance energy efficiency by preventing heat transfers and minimizing condensation. Lightweight door construction reduces door maintenance, bushing wear, and facilitates smooth door opening.

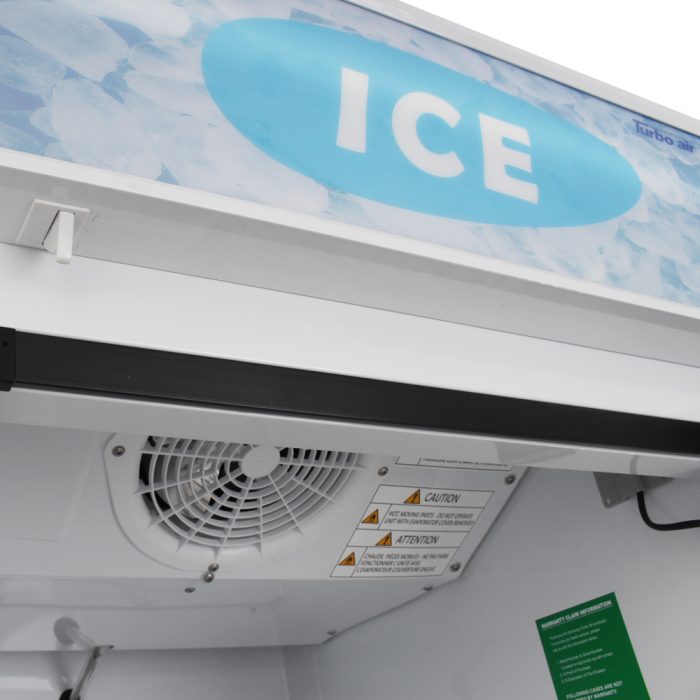

LED advertising panel
LED lighting offers 5 times longer lasting life than fluorescents and conserves energy as well.
No electrical cabinet heater is needed
Electrical heaters in freezers operate 24/7 in order to prevent water flow to the cabinet surface. This causes unnecessary energy consumption, and sometimes is the reason behind overheating. Instead of frame heaters, Turbo Air freezers harness the heat produced by the compressor during its condensing stage, eliminating any unnecessary energy consumption as well as providing the most efficient freezer performance available.
High-density polyurethane insulation
The entire cabinet structure is foamed-in-place using high density, HCFC free polyurethane insulation.

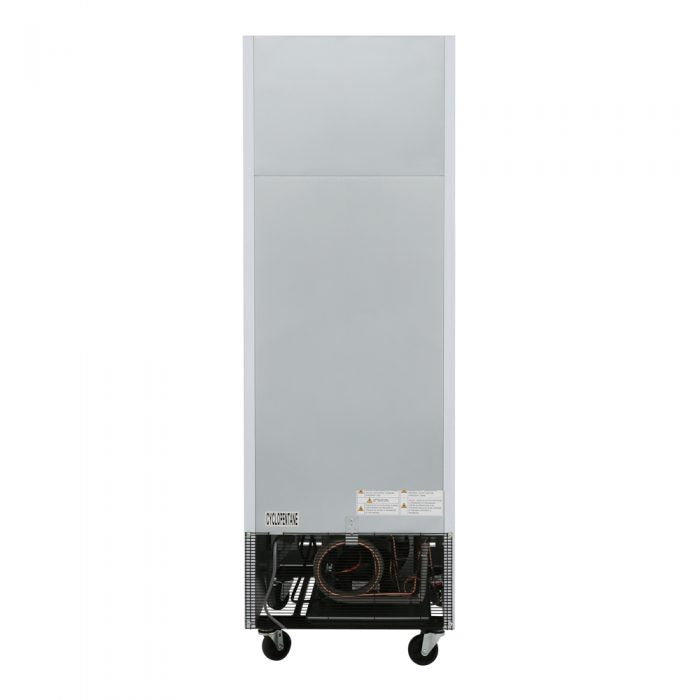

Bottom mount compressor units
Turbo Air’s bottom mount compressor allows easier access for service and extra storage space above. In addition, the lower area provides a cooler and less greasy operating environment which results in reduced compressor running time.
LED interior lighting
Freezer holds 10°F ~ 15°F for the best in bagged ice storage
STANDARD FEATURES
• Anti-corrosion coated evaporator
• Magnetic door gaskets
Product Features
- One-section
- LED interior lighting
- (1) triple pane heated glass door
- LED advertising panel
- Anti-corrosion coated evaporator
- White cabinet
- 17.7 cu.ft.
- 115v/60/1
- NEMA 5-15P
- 5.2 Amps
- 1/2 HP
- ETL-Sanitation
- cETLus
Free Shipping
Usually ships in 2 Business Days
Product Resources
See all from Turbo Air
Specifications
Voltage | 115/60/1 |
Plug Type | NEMA 5-15P |
Full Load Amperes | 5.2 |
Compressor HP | 1/2 |
Cord Length (ft.) | 7 |
Refrigerant | R-290 |
Number of Doors | 1 |
Cubic Feet | 17.7 |
Exterior Length Overall (in.) | 27 (686mm) |
Exterior Depth Overall (in.) * | 29 3/4 (756mm) |
Exterior Height Overall (in.) | 78 1/4 (1987mm) |
Interior Length Overall (in.) | 23 (584mm) |
Interior Depth Overall (in.) | 24 1/8 (614mm) |
Interior Height Overall (in.) | 60 3/8 (1535mm) |

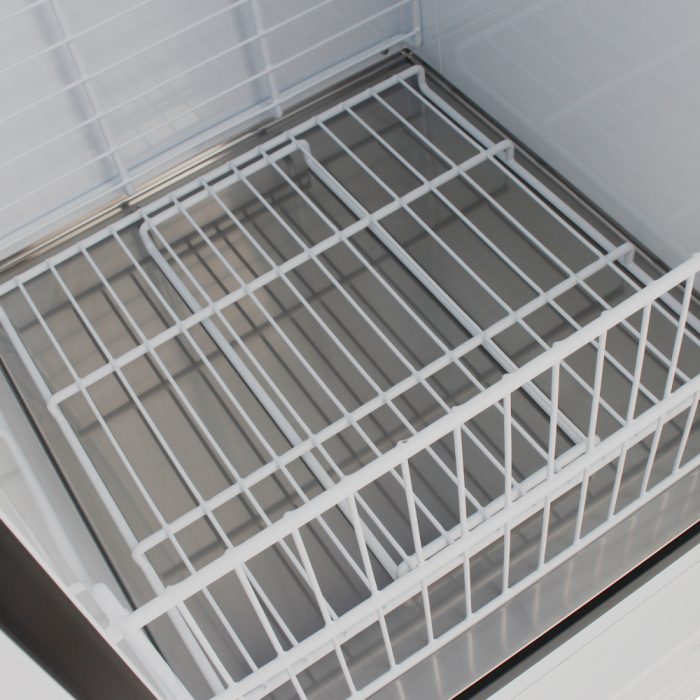

Number of Rack Shelves | 2 |
Number of Bottom Shelves | 1 |
Net Weight (lbs.) | 334 |
Gross Weight (lbs.) | 356 |
Warranty
Labor
Parts
Compressor
