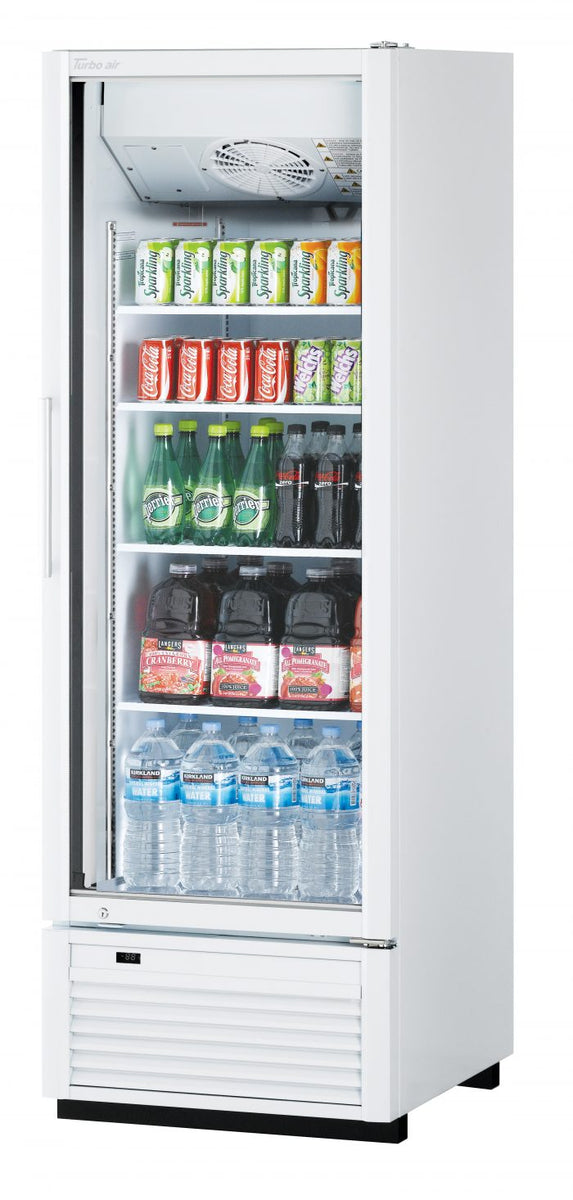

Turbo Air TGM-23SDH-N6 1 Door Swing Style Glass Merchandiser Refrigerator, Full Height, 19.0 Cu. Ft.

SKUTGM-23SDH-N6 BrandTurbo Air

The Turbo Air TGM-23SDH-N6 Merchandiser Refrigerator

Self-Cleaning Condenser
The accumulation of dust in the condenser can cause the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products in refrigerators. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.

Hydrocarbon Refrigerants (R-600a)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).

Energy conserving fan control
Utilizing algorithmic air circulation for optimal temperature levels, our innovative fan control system conserves energy by at least 15% and increases compressor life by up to 30%.

Digital temperature control & monitor system
• Keep food products safe by maintaining constant temperatures.
• Alarms that sound when doors are not sealed shut; protect against food spoilage that originate from cold air leaks.
• Early Warning Alarm program detect issues before malfunction occurs.
• Digital display allows for easy monitoring.
• Programs interpret the condition of refrigeration systems by self-diagnosis.
• Rapid cool-down function (Turbo cooling).
• Automatic evaporator fan motor delays.

Double pane glass doors with Low-E glass
Energy saving double pane glass doors are equipped with Low-emissivity glass, which reduce outer heat gain and decrease energy consumption. It enhances energy efficiency and minimizes condensation. Lightweight door construction also reduce door maintenance and bushing wear, which in turn facilitates smoother door openings.

Hot gas condensate system
Through Turbo Air’s creative innovation, the condensate system surfaces have been specially treated to resist corrosion. This not only increases
efficiency without the risk of refrigerant leaking from corrosion, but also prevents the overflow of condensate water.

High-density polyurethane insulation
The entire cabinet structure is foamed-in-place using high density, HCFC free polyurethane insulation.

LED interior lighting

Refrigerator holds 33°F ~ 38°F for the best in food preservation

STANDARD FEATURES
• Anti-corrosion coated evaporator
• Door locks standard
• Two color options available (standard): white cabinet (W), black cabinet with black color trim (B).

Product Features

  1. One-section
  2. Self-Cleaning Condenser
  3. Digital temperature control & monitor system
  4. LED interior lighting
  5. (1) double pane glass door with Low-E glass
  6. (4) adjustable
  7. heavy-duty PE coated shelves
  8. Shadow free LED AD panel
  9. Anti-corrosion coated evaporator
  10. Door lock standard
  11. Two color option-white(W)
  12. black(B)
  13. 19.02 cu.ft.
  14. 115v/60/1
  15. NEMA 5-15P
  16. 2.2Amps
  17. 1/5 HP
  18. ETL-Sanitation
  19. cETLus

Free Shipping

Usually ships in 2 Business Days

$3,815.30  /  each
  • One-section
  • Self-Cleaning Condenser
  • Digital temperature control & monitor system
  • LED interior lighting
  • (1) double pane glass door with Low-E glass
  • See full feature list

    See all from Turbo Air

    Specifications

    ELECTRICAL DATA27 (685mm)
    Voltage115/60/1
    Plug TypeNEMA 5-15P
    Full Load Amperes2.2
    Compressor HP1/5
    Cord Length (ft.)7
    RefrigerantR-600a
    Number of Doors1
    Cubic Feet19.0
    Exterior Length Overall (in.)27 (685mm)
    Exterior Depth Overall (in.)*30 1/4 (771mm)
    Exterior Height Overall (in.)77 (1957mm)
    Interior Length Overall (in.)23 (585mm)
    Interior Depth Overall (in.)24 3/8 (620mm)
    Interior Height Overall (in.)52 1/4 (1328mm)
    Number of Shelves4
    Shelf Size (L x D) (in.)21 1/2 x 22 1/2
    Bottle Capacity (12oz.)405 (486 w/add.shelf)
    Net Weight (lbs.)304
    Gross Weight (lbs.)325

    Warranty

      3 year

      Labor

      3 year

      Parts

      7 year

      Compressor
