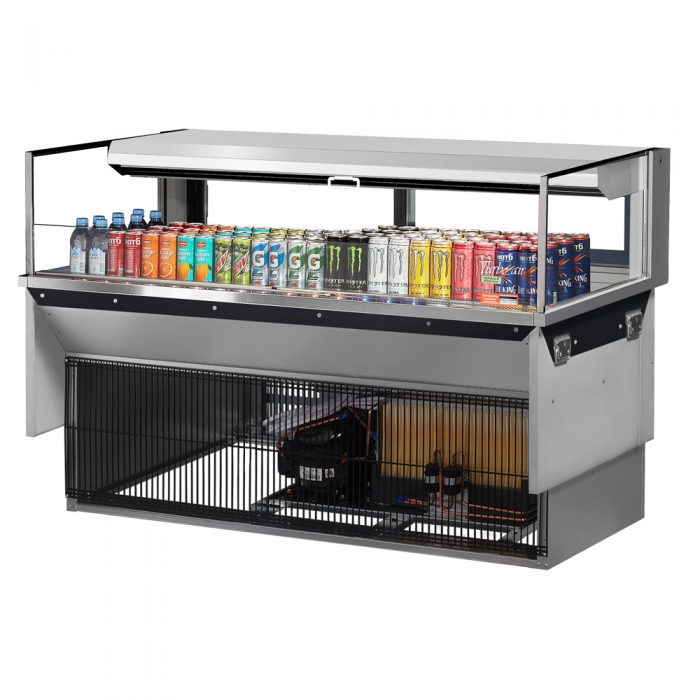

The Turbo Air TOM-60L-UFD-S-1SI-N Horizontal Open Display Merchandiser
Self-Cleaning Condenser
The accumulation of dust in the condenser can cause the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products in refrigerators. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.
Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).
Modern design
By integrating great contours with durable structures, our modern style product designs are user-friendly while maintaining the highest product visibility and aesthetics. Safety reinforced tempered glass front shield optimizes the merchandiser’s display effects of fresh salads, sandwiches, desserts and beverages. Its elegant contemporary euro design will enhance any store application.
Designed to enhance impulsive sales
Ideal for eye-catching displays and convenient access with fast service in high traffic area.
Standard back-guard improves airflow
Bottom stainless steel solid shelf standard
Perforated glass doors & open top for improved airflow
Foamed with polyurethane, high-density cell insulation (CFC free)
LED interior lighting
Front air intake and rear air discharge
Sliding rear door for product loading & unloading
Energy saving night curtain standard
STANDARD FEATURES
• Simple plug-in installation
• No plumbing required
• Solar powered digital thermometer
• Digital electronic thermostat with defrost control
• Bolt height adjustable up to 2-3/4”
Recommended operating conditions
TOM models are designed to operate in an environment where temperature & humidity do not exceed 80°F and 55% respectively. Units should not be installed near HVAC vents, fans or doorways that will disrupt the air curtain and compromise the function of the cabinet. Air curtain models will run most efficiently when completely loaded with product. When used as a built-in, required clearance for the rear is 4” and the top is 5”.
Product Features
-

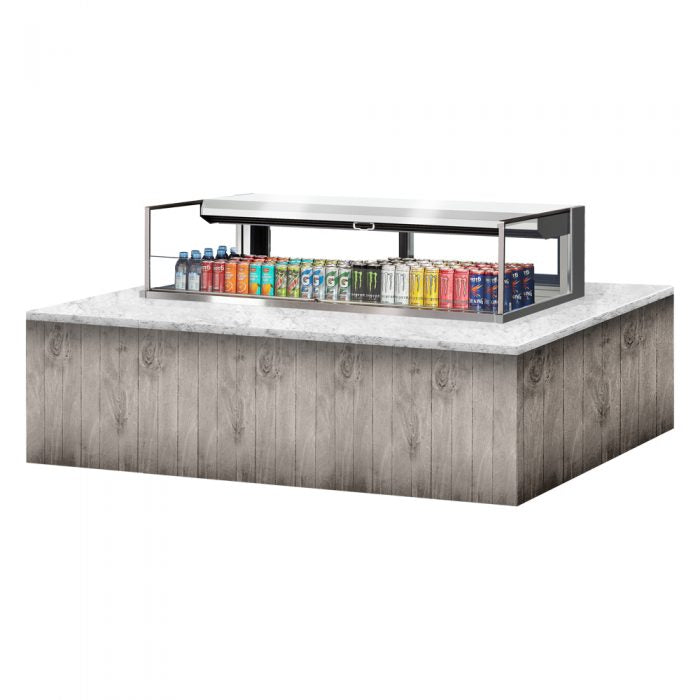

Drop in type
-
Horizontal
-
Low profile with glass side panel
-
60″ length
-
Self-Cleaning Condenser equipped
-
Hydrocarbon refrigerants (R-290)
-
Modern design to enhance impulsive sales
-
Standard back-guard improves airflow
-
Bottom stainless steel solid shelf standard
-
Perforated glass doors & open top for improved airflow
-
LED interior lighting
-
Front air intake and rear air discharge
-
Sliding rear for product loading & unloading
-
Energy saving night curtain
-
115V/60/1
-
NEMA 5-20P
-
15 Amp
-
3/4 HP x 2
-
8 cu. ft.
-
cCSAus
Free Shipping
Usually ships in 2 Business Days
Drop in type
Horizontal
Low profile with glass side panel
60″ length
Self-Cleaning Condenser equipped
Product Resources
See all from Turbo Air
Specifications
| Voltage | 115/60/1 |
| Plug Type | NEMA 5-20P |
| Full Load Amperes | 15 |
| Compressor HP | 3/4 x 2 |
| Cord Length (ft.) | 9 7/8 |
| Refrigerant | R-290 |
| Cubic Feet | 8 |
| Exterior Dimension (L x D x H* ) (in.) | 59 7/8 x 33 3/4 x 37 3/4 |
| Interior Dimension (L x D x H) (in.) | 56 3/8 x 23 1/2 x 10 1/2 |
| Number of Shelves | - |
| Shelf Size (L x D) (in.) | - |
| Net Weight (lbs.) | 467 |
| Gross Weight (lbs.) | 566 |
Warranty
Labor
Parts
Compressor
