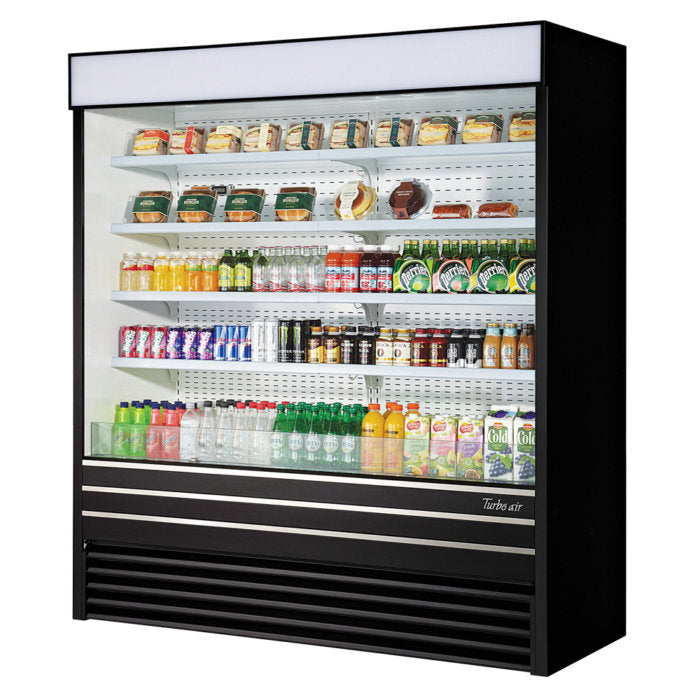

The Turbo Air TOM-72EB-N Vertical Open Display Merchandiser
Self-Cleaning Condenser
The accumulation of dust in the condenser can cause the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products in refrigerators. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.
Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).
Modern design
By hamonizing curvature and rigidness, our modern style product designs are user-friendly while maintaining the highest product visibility and aesthetics. The glass front shield optimize the merchandiser’s display effects or fresh salds, sandwiches, desserts and beverages.
Designed to enhance impulsive sales
Ideal for eye-catching displays and convenient access with fast service in high traffic area.
LED interior lighting under each shelf
White coated galvanized steel interior
White coated galvanized steel solid shelves
Energy saving night curtain standard
Standard back-guard improves airflow
Perforated interior back wall & top for improved air flow
Foamed with polyurethane, high-density cell insulation (CFC free)
Front air intake and rear air discharge
STANDARD FEATURES
• Simple plug-in installation
• Patented self-contained system, no plumbing required
• Solar powered digital thermometer
• Digital electronic thermostat with defrost control
• Standard color comes in black only
• Price tag channel: P72E0000ZK (34½”L)
• Bolt height adjustable up to 2¾”
Recommended operating conditions
TOM models are designed to operate in an environment where temperature & humidity do not exceed 75°F and 55°F respectively. Units should not be reinstalled near HVAC vents, fans, or doorways that will disrupt the air curtain and compromise the function of the cabinet. Air curtain models will run most efficiently when completely loaded with product. When used as a built-in, required clearance for the rear is 4” and the top is 5”.
Product Features
-
Self-Cleaning Condenser equipped
-
LED interior lighting
-
White coated galvinized steel interior & solid shelves
-
Solar powered digital thermometer
-
Digital electronic thermostat with defrost control
-
Anti-corrosion coated evaporator
-
Black color
-
37.1 cu.ft
-
220v/60/1
-
NEMA 6-20P
-
18 Amps
-
3/4 x 4 HP
-
CSA-Sanitation
Free Shipping
Usually ships in 2 Business Days
Product Resources
See all from Turbo Air
Specifications
Voltage | 22 0/60/1 |
Plug Type | NEMA 6-20P |
Full Load Amperes | 18 |
Compressor HP | 3/4 x 4 |
Cord Length (ft.) | 9 7/8 |
Refrigerant | R-290 |
Cubic Feet | 37.1 |
Exterior Length Overall (in.) | 72 (1829mm) |
Exterior Depth Overall (in.)* | 29 1/2 (749mm) |
Exterior Height Overall (in.) | 80 1/2 (2046mm) |
Number of Shelves | 8 |
Shelf Size (L x D) (in.) | 34 1/4 x 15 1/2 |
Net Weight (lbs.) | 723 |
Gross Weight (lbs.) | 941 |
Warranty
Labor
Parts
Compressor
