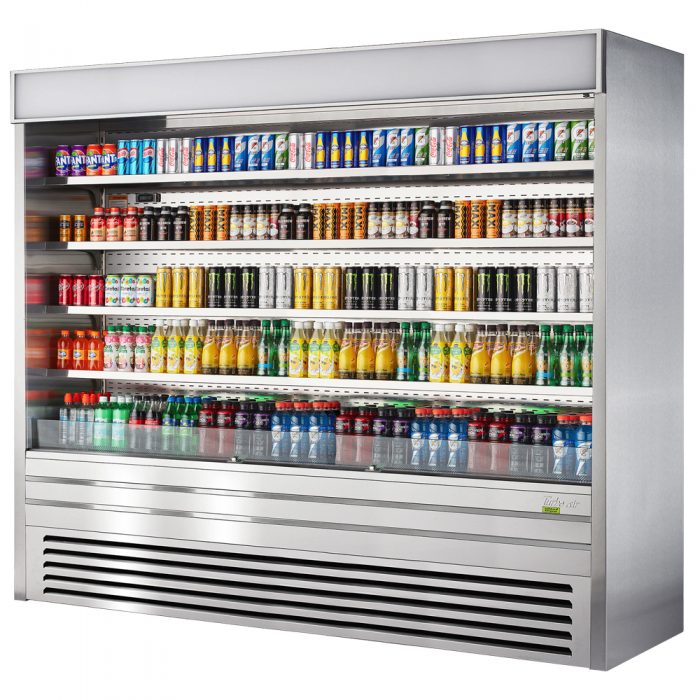

The Turbo Air TOM-96ES-N Vertical Open Display Merchandiser
Self-Cleaning Condenser
The accumulation of dust in the condenser can cause the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products in refrigerators. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.
Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).
Modern design
By harmonizing curvature and rigidness, our modern style product designs are user-friendly while maintaining the highest product visibility and aesthetics. The glass front shield optimize the merchandiser’s display effects of fresh salads, sandwiches, desserts and beverages.
Designed to enhance impulsive sales
Ideal for eye-catching displays and convenient access with fast service in high traffic area.
LED interior lighting under each shelf
Energy saving night curtain standard
Standard back-guard improves airflow
Foamed with polyurethane, high-density cell insulation (CFC free)
Perforated interior back wall & top for improved air flow
Front air intake and rear air discharge
Stainless steel exterior and interior
STANDARD FEATURES
• Simple plug-in installation
• Patented self-contained system, no plumbing required
• Solar powered digital thermometer
• Digital electronic thermostat with defrost control
• Price tag channel: P48E0000ZK (44¾”L)
• Bolt height adjustable up to 2¾”
• 8 week lead time applies
Recommended operating conditions
TOM models are designed to operate in an environment where temperature & humidity do not exceed 75°F and 55°F respectively. Units should not be reinstalled near HVAC vents, fans, or doorways that will disrupt the air curtain and compromise the function of the cabinet. Air curtain models will run most efficiently when completely loaded with product. When used as a built-in, required clearance for the rear is 4” and the top is 5”.
Product Features
-
Vertical air curtain
-
93″ length
-
Stainless steel exterior and interior
-
Self-Cleaning Condenser equipped
-
Hydrocarbon refrigerants (R-290)
-
Modern design to enhance impulsive sales
-
Energy saving night curtain standard
-
Standard back-guard improves airflow
-
High-density cell insulation (CFC free)
-
Perforated interior back wall and top for improved airflow
-
Front air intake and rear air discharge
-
220V/60/1
-
NEMA 6-20P
-
18 Amp
-
3/4 x 4 HP
-
48.3 cu. ft.
-
cCSAus
Free Shipping
Usually ships in 2 Business Days
Product Resources
See all from Turbo Air
Specifications
Voltage | 22 0/60/1 |
Plug Type | NEMA 6-20P |
Full Load Amperes | 18 |
Compressor HP | 3/4 x 4 |
Cord Length (ft.) | 9 7/8 |
Refrigerant | R-290 |
Cubic Feet | 48.3 |
Exterior Length Overall (in.) | 92 7/8 (2358mm) |
Exterior Depth Overall (in.)* | 29 1/2 (749mm) |
Exterior Height Overall (in.) | 80 1/2 (2046mm) |
Number of Shelves | 8 |
Shelf Size (L x D) (in.) | 44 3/4 x 15 1/2 |
Net Weight (lbs.) | 970 |
Gross Weight (lbs.) | 1190 |
Warranty
Labor
Parts
Compressor
