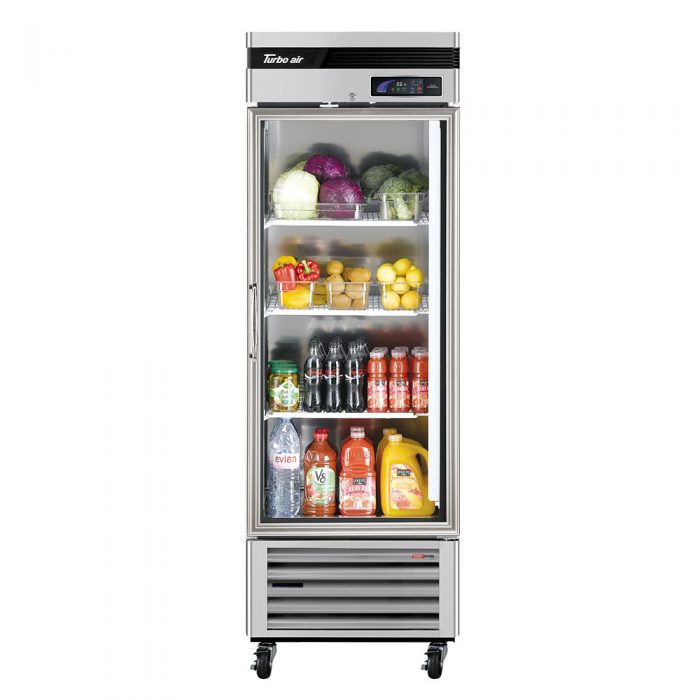

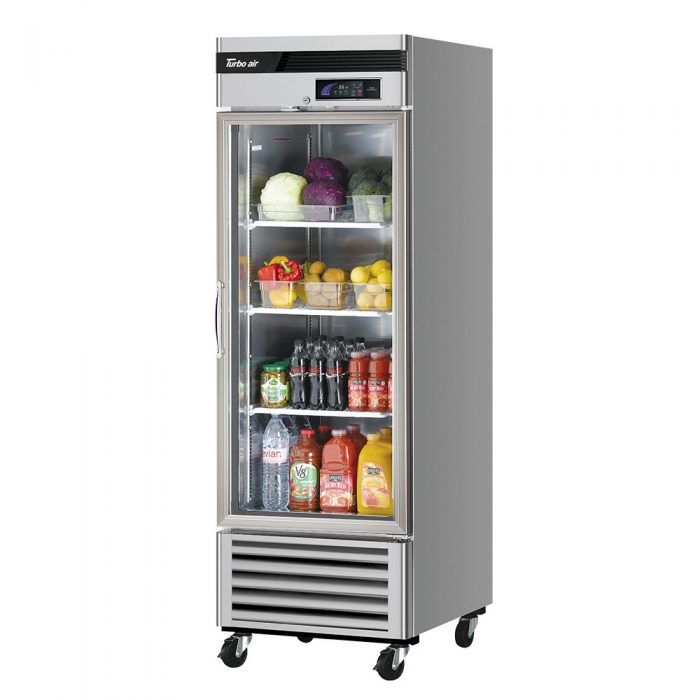

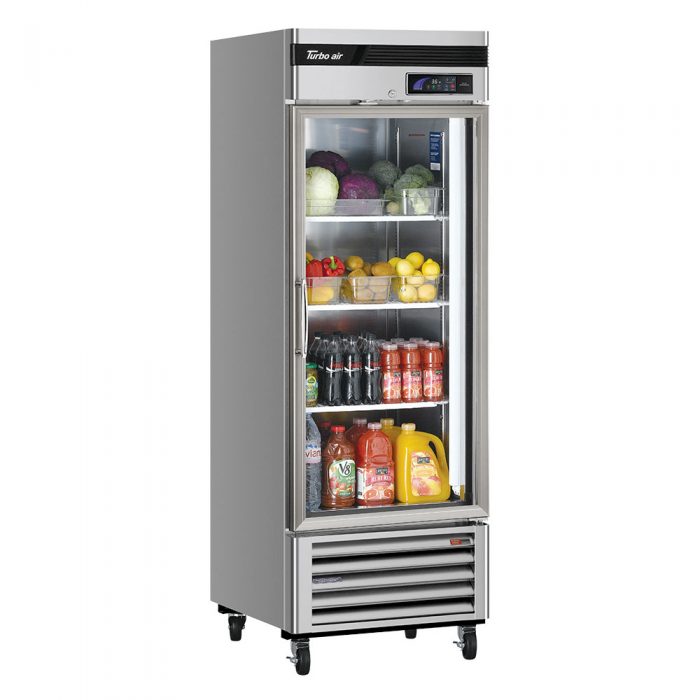

Turbo Air TSR-23GSD-N6 1 Glass Door Refrigerator, Bottom Mount, 20 Cu. Ft.

SKUTSR-23GSD-N6 BrandTurbo Air

The Turbo Air TSR-23GSD-N6 Reach-In Refrigerator

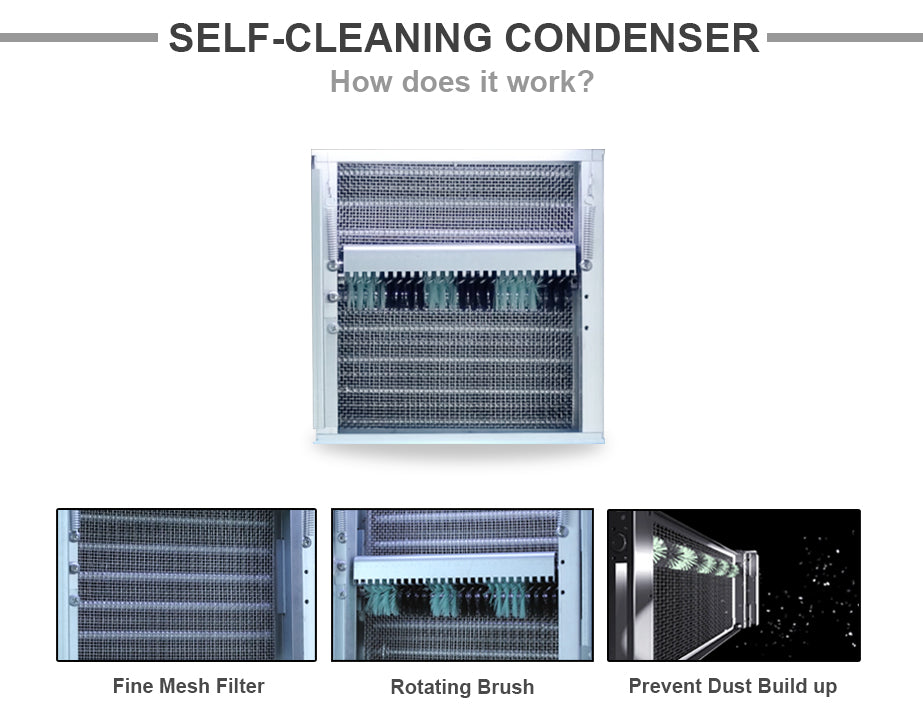

Self-Cleaning Condenser
The accumulation of dust in the condenser can cause the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to, or disposal of the stored products in refrigerators. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.

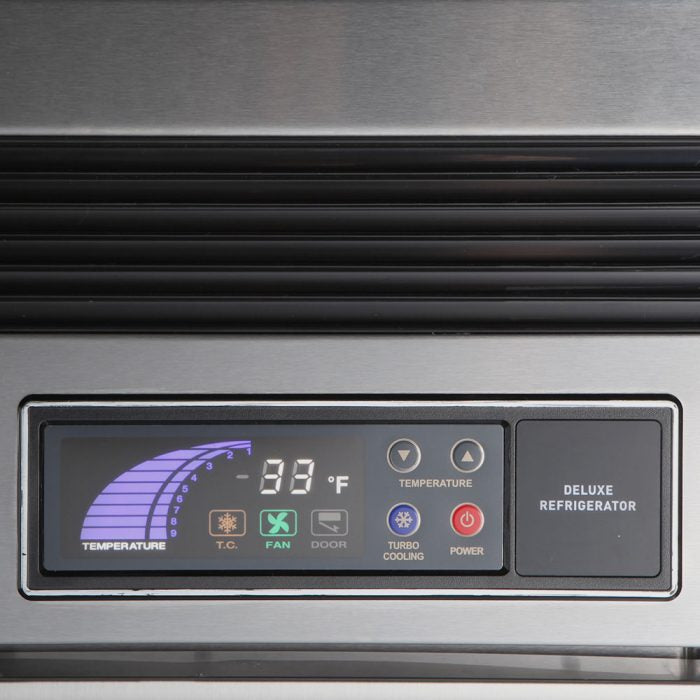

Digital temperature control & monitor system
• Keep food products safe by maintaining constant temperatures.
• Alarms that sound when doors are not sealed shut; protect against food spoilage that originate from cold air leaks.
• Early warning alarm program detects issues before malfunction occurs.
• Digital display allows for easy monitoring.
• Programs interpret the condition of refrigeration systems by self-diagnosis.
• Rapid cool-down function (Turbo cooling).
• Automatic evaporator fan motor delays.

Hydrocarbon refrigerants (R-600a)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have very low contribution to global warming (ODP-0, GWP-3).

Stainless steel interior and exterior
The Turbo Air Super Deluxe glass door model is constructed with stainless steel exterior. The door is glass with AL frame. The interior is stainless steel that guarantees the utmost in cleanliness and long product life. The Super Deluxe adds a touch of style to the most refined setting.

Double pane glass doors with Low-E glass
Energy saving double pane glass doors are equipped with Low-emissivity glass, which reduces outer heat gain and decreases energy consumption. It enhances energy efficiency and minimizes condensation. Lightweight door construction also reduces door maintenance and bushing wear, which in turn facilitates smoother door opening.

Ergonomically designed doors
Customers’ fatigue fades away with easy grip handles and doors that open effortlessly. Self-closing features make this the ultimate choice in customer convenience.

High-density polyurethane insulation
The entire cabinet structure and solid doors are foamed-in-place using high density, HCFC free polyurethane insulation.

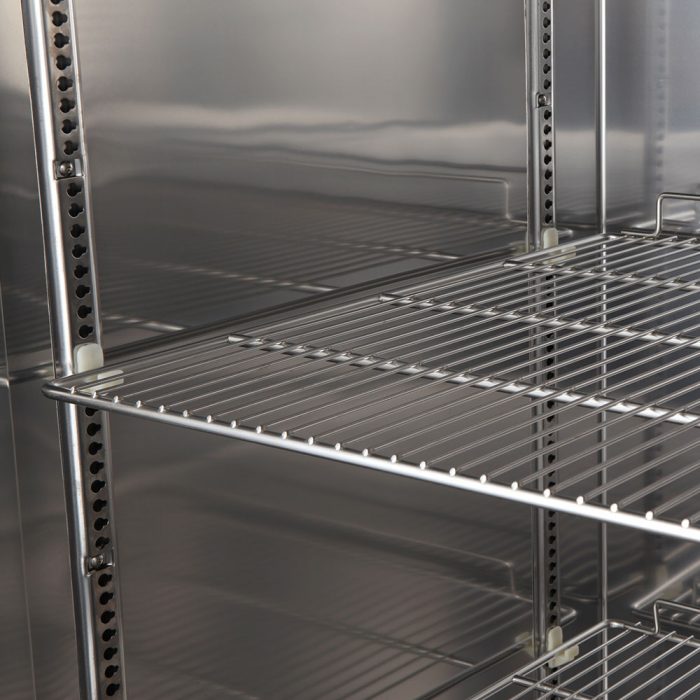

Adjustable, heavy duty PE (polyethylene) coated wire shelves

LED Interior lighting

Bottom mount compressor

Refrigerator holds 33°F ~ 38°F for the best in food preservation

STANDARD FEATURES
• Anti-corrosion coated evaporator

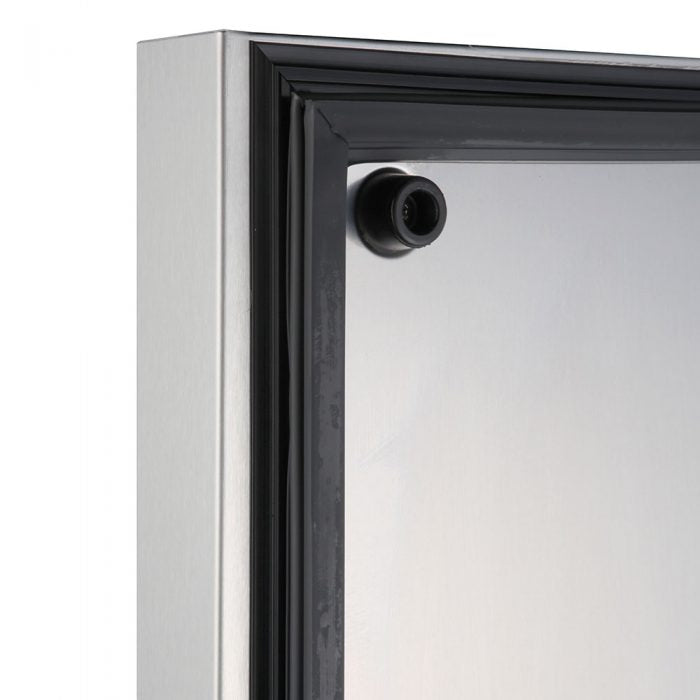

• Easy replaceable one piece magnetic door gaskets
• Self-contained system
• Solid and sturdy grille design

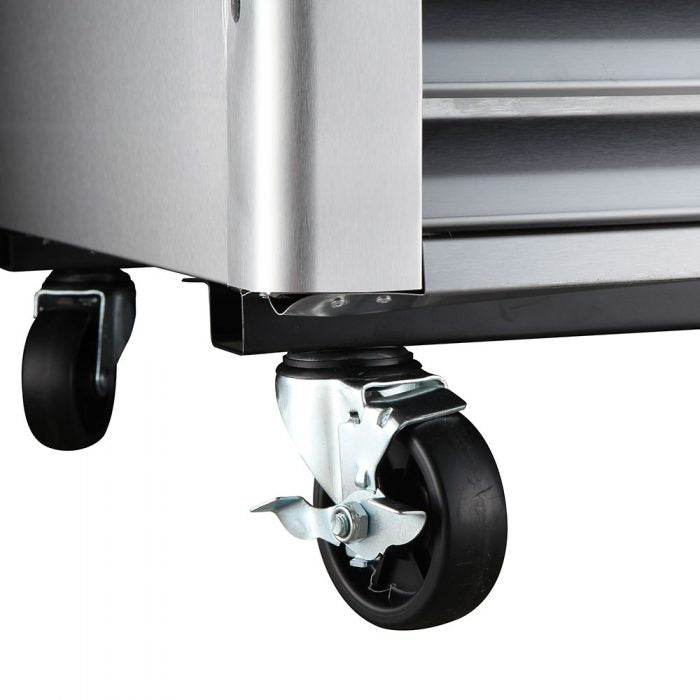

• Standard 4″ dia. swivel casters with locks on the front set

Product Features

  1. One-section
  2. Self-Cleaning Condenser equipped
  3. Self-contained
  4. Stainless steel interior and exterior with AL door frame
  5. (1) hinged glass door with recessed handle
  6. (6) adjustable PE coated wire shelves
  7. Exterior LED digital controller
  8. Self-diagnostic monitoring system
  9. Door-open alarm beeps
  10. Turbo cooling
  11. Automatic fan motor delays
  12. Door pressure release device
  13. LED interior lighting
  14. Door locks
  15. 4″ dia. swivel casters
  16. Bottom mount compressor
  17. Anti-corrosion coated evaporator
  18. 20 cu.ft.
  19. 115v/60/1
  20. NEMA 5-15P
  21. 1.6 Amps
  22. 1/5 HP
  23. ETL-Sanitation
  24. cETLus

Free Shipping

Usually ships in 2 Business Days

$4,436.43  /  each
  • One-section
  • Self-Cleaning Condenser equipped
  • Self-contained
  • Stainless steel interior and exterior with AL door frame
  • (1) hinged glass door with recessed handle
  • See full feature list

    See all from Turbo Air

    Specifications

    Voltage115/60/1
    Plug TypeNEMA-5-15P
    Full Load Amperes1.6
    Compressor HP1/5
    Feed Wires with Ground3
    Cord Length (ft.)7
    RefrigerantR-600a
    Number of Doors1
    Number of Racks Accepted1
    Cubic Feet20
    Exterior Length Overall (in.)27 (686mm)
    Exterior Depth Overall (in.)*30 3/8 (772mm)
    Exterior Height Overall (in.)78 1/4 (1986mm)
    Interior Length Overall (in.)23 (584mm)
    Interior Depth Overall (in.)26 1/4 (666mm)
    Interior Height Overall (in.)60 (1524mm)
    Number of Shelves3
    Shelf Size (L x D) (in.)22 x 23 1/2
    Gross Weight (lbs.)310

    Warranty

      3 year

      Labor

      3 year

      Parts

      7 year

      Compressor

    • CETLUS
      ETL US & Canada
