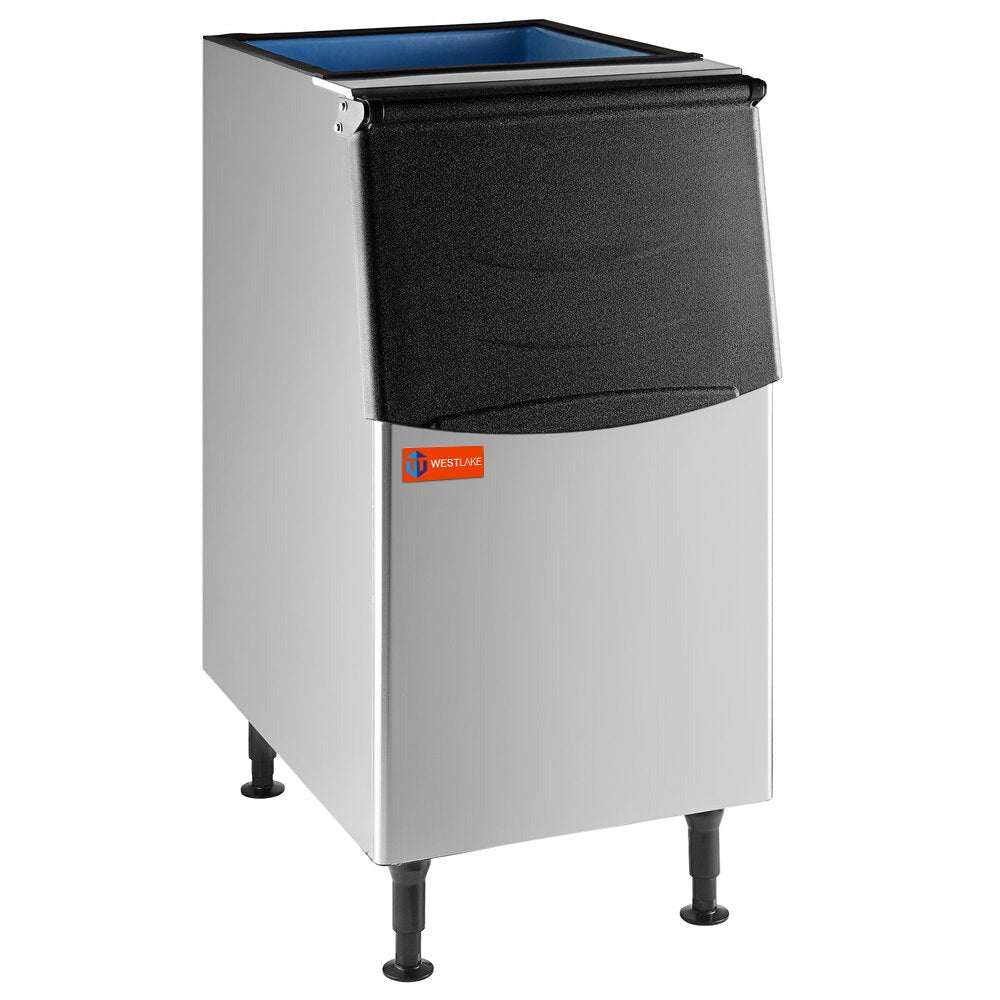

The Westlake B-275 Ice Machine Bin
The Westlake B-275 is an ice storage bin for a modular ice machine head. It stores up to 308 lb of ice and makes none itself: the head mounted on top does the producing, and this bin holds what it drops. The bin is 22 in. wide, 33.9 in. deep, and 46.5 in. tall, and it is sized for a head of matching width.
308 lb of Insulated Ice Storage
Capacity is 308 lb. A thickened foam layer in the walls holds ice for up to 24 hours, so ice made overnight is still there for your morning crew.

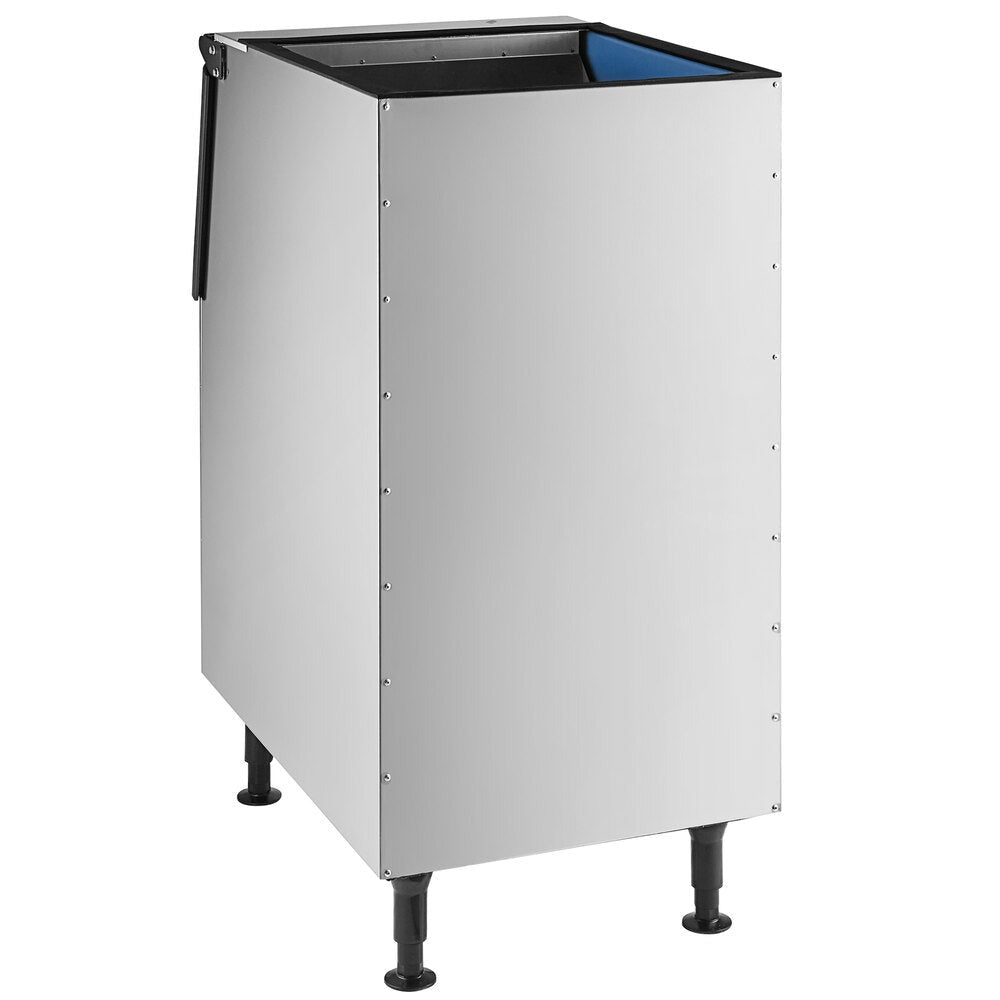

304 Stainless Steel on a Riveted, Weld-Free Frame

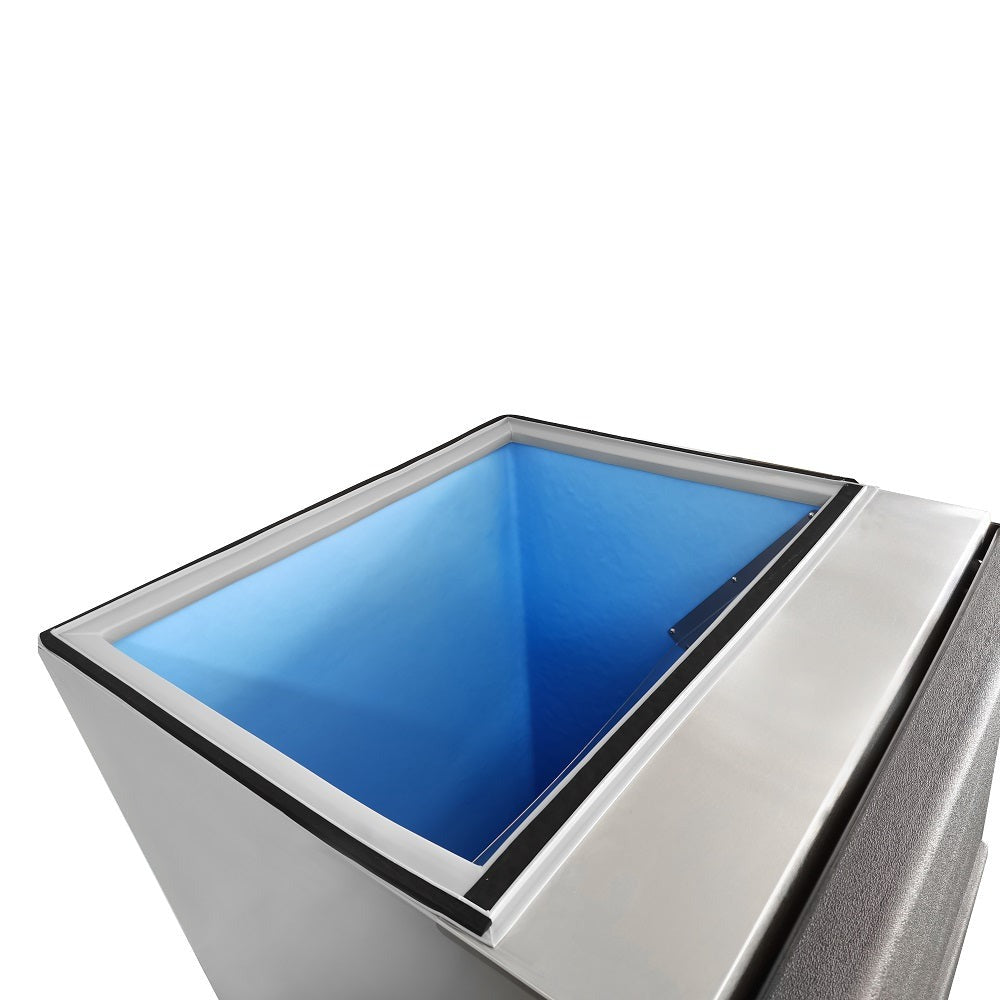

The bin is built mainly from 304 stainless steel on a riveted frame with no welds. Food grade ABS and PE are used for the materials that touch ice.
Footprint and Door Clearance

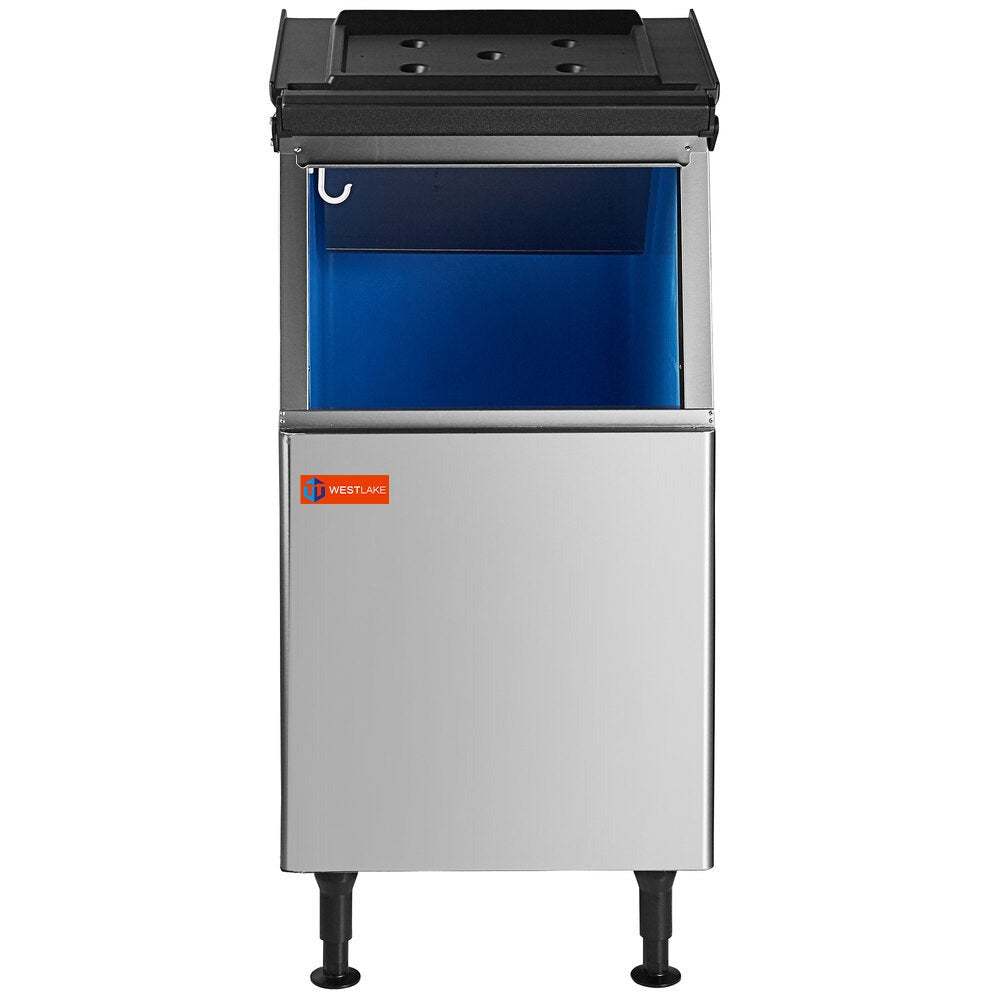

The top of the bin is 22 in. wide, so match it to a head of the same width and check the head's footprint against the bin before you buy. The front door opens outward: allow 44.8 in. of total depth with the door open, compared with 33.9 in. closed.
Features & Benefits
-
Ice storage for a modular ice machine head of matching width
-
Storage-only bin with no refrigeration system of its own
-
Thickened foam insulation that holds ice for up to 24 hours
-

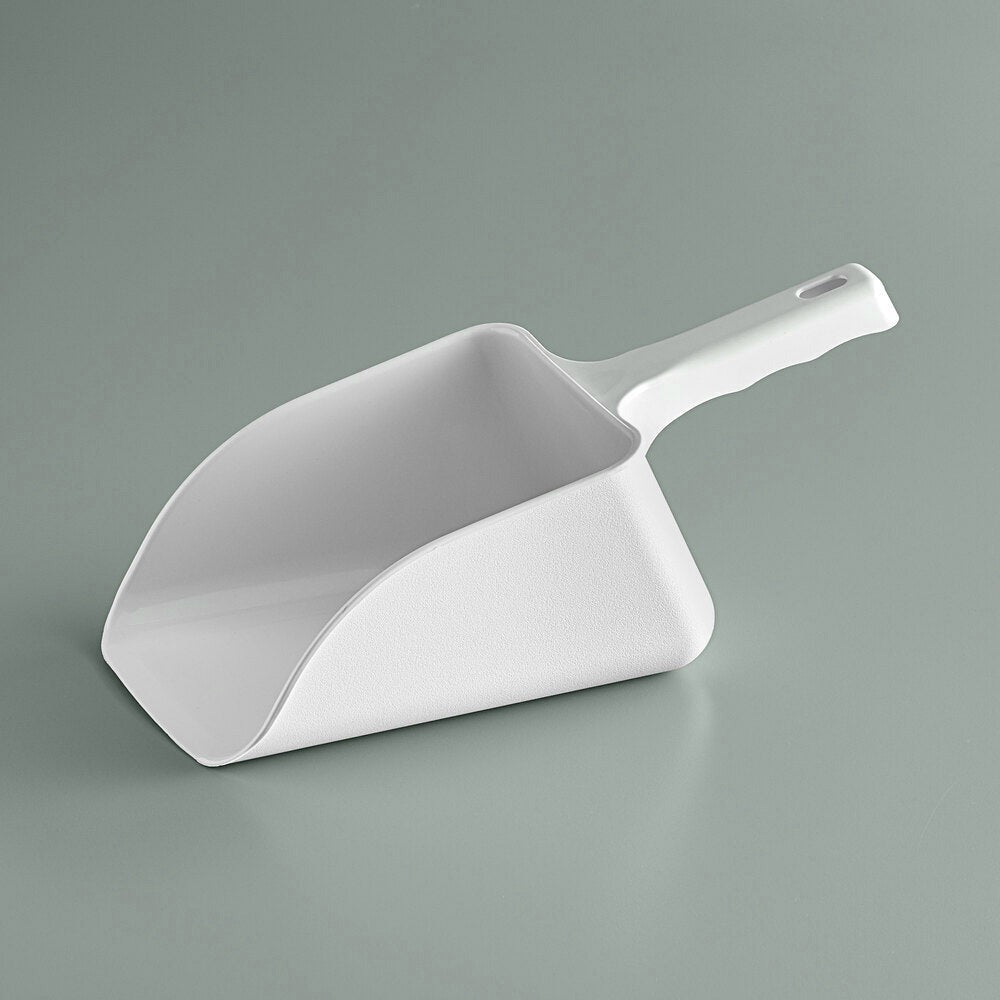

Front-opening door for scooping
-
Mainly 304 stainless steel construction
-
Riveted, weld-free sheet metal frame
-
Food grade ABS and PE materials
-

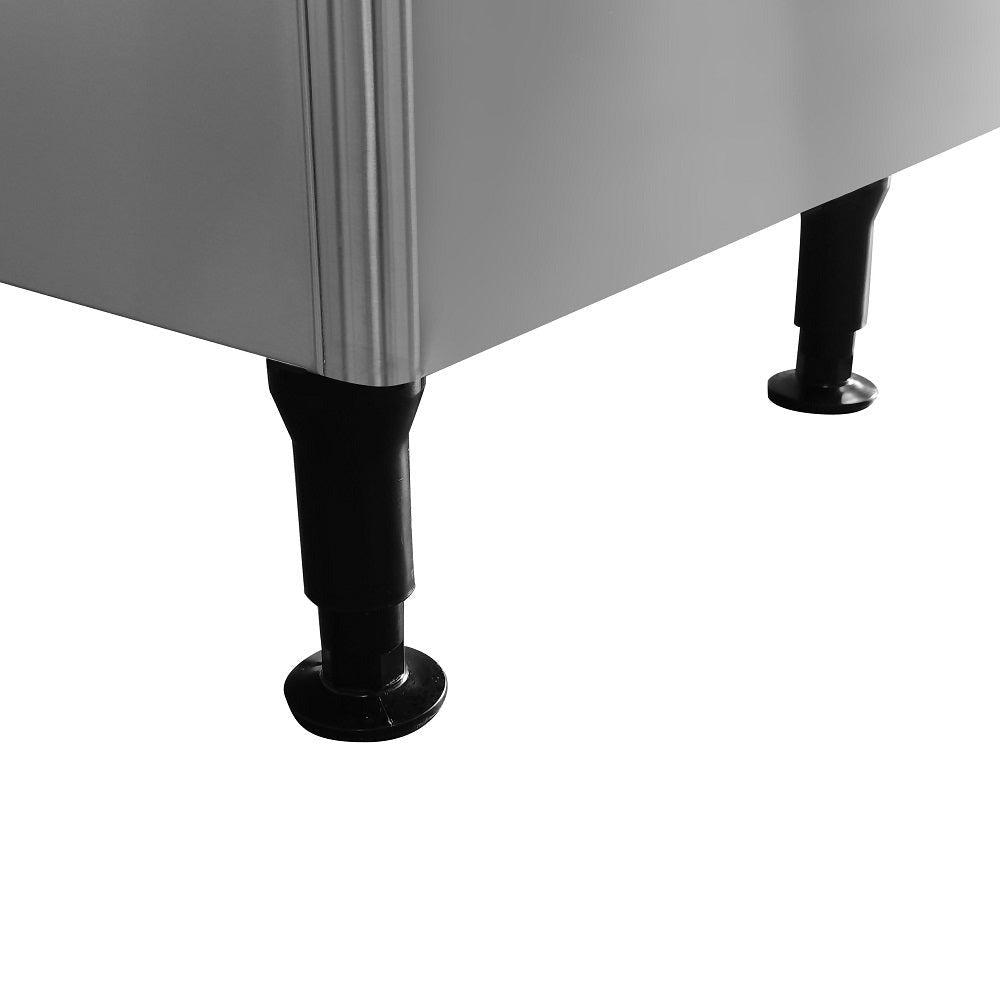

Four legs that keep the bin body off the floor
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Ice storage for a modular ice machine head of matching width
Storage-only bin with no refrigeration system of its own
Thickened foam insulation that holds ice for up to 24 hours
Front-opening door for scooping
Mainly 304 stainless steel construction
The Westlake B-275 Ice Machine Bin
The Westlake B-275 is an ice storage bin for a modular ice machine head. It stores up to 308 lb of ice and makes none itself: the head mounted on top does the producing, and this bin holds what it drops. The bin is 22 in. wide, 33.9 in. deep, and 46.5 in. tall, and it is sized for a head of matching width.
308 lb of Insulated Ice Storage
Capacity is 308 lb. A thickened foam layer in the walls holds ice for up to 24 hours, so ice made overnight is still there for your morning crew.
304 Stainless Steel on a Riveted, Weld-Free Frame
The bin is built mainly from 304 stainless steel on a riveted frame with no welds. Food grade ABS and PE are used for the materials that touch ice.
Footprint and Door Clearance
The top of the bin is 22 in. wide, so match it to a head of the same width and check the head's footprint against the bin before you buy. The front door opens outward: allow 44.8 in. of total depth with the door open, compared with 33.9 in. closed.
Features & Benefits
-
Ice storage for a modular ice machine head of matching width
-
Storage-only bin with no refrigeration system of its own
-
Thickened foam insulation that holds ice for up to 24 hours
-
Front-opening door for scooping
-
Mainly 304 stainless steel construction
-
Riveted, weld-free sheet metal frame
-
Food grade ABS and PE materials
-
Four legs that keep the bin body off the floor
Resources & Downloads
Specifications
| Ice Storage Capacity | 308 lb |
| Ice Storage Time | Up to 24 hr |
| Ice Making | None, storage only |
| Width | 22 in. |
| Depth | 33.9 in. |
| Height | 46.5 in. |
| Depth with Door Open | 44.8 in. |
| Construction | Mainly 304 stainless steel |
| Frame | Riveted, weld-free |
| Food Contact Materials | Food grade ABS and PE |
| Insulation | Thickened foam layer |
| Door | Front opening |
| Door Color | Black |
| Interior Liner Color | Blue |
| Legs | 4 |
Manufacturer's Warranty
-
2 Year
Labor
-
2 Year
Parts
Certifications & Approvals
-
ETL Sanitation
