Westlake WK-48RF 48 In. Dual Temperature Reach-In Refrigerator Freezer Combo, 2 Solid Doors, Stainless Steel, 36 Cu. Ft.

SKUWK-48RF BrandWestlake

The Westlake WK-48RF Reach-In Refrigerator Freezer Combo

The Westlake WK-48RF is a top-mounted, two-door dual temperature reach-in: one compartment runs as a refrigerator at 33 °F to 41 °F and the other as a freezer at -8 °F to 0 °F. That puts the day's dairy and prep beside your backup frozen product in one 48.4 in. footprint, so a cook grabs both from the same spot. It is rated for kitchens up to 100 °F. Each compartment is 19.9 in. wide inside, so this is a cabinet for a small kitchen, food truck commissary, or satellite station; an operation that already fills two doors of refrigeration will find one door of each tight. It rolls in on brake casters, stands 78 in. tall, and plugs into a 115 V outlet through a NEMA 5-15P plug at 5.2 amps.

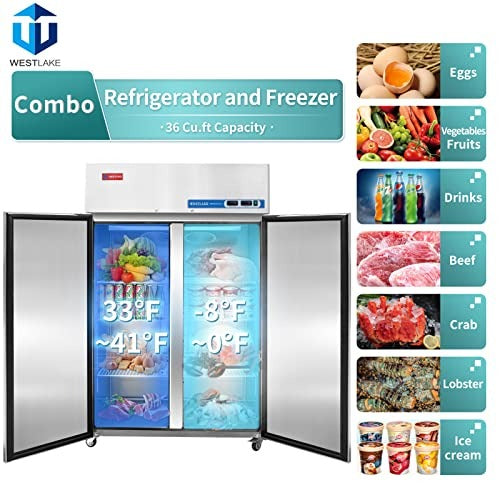

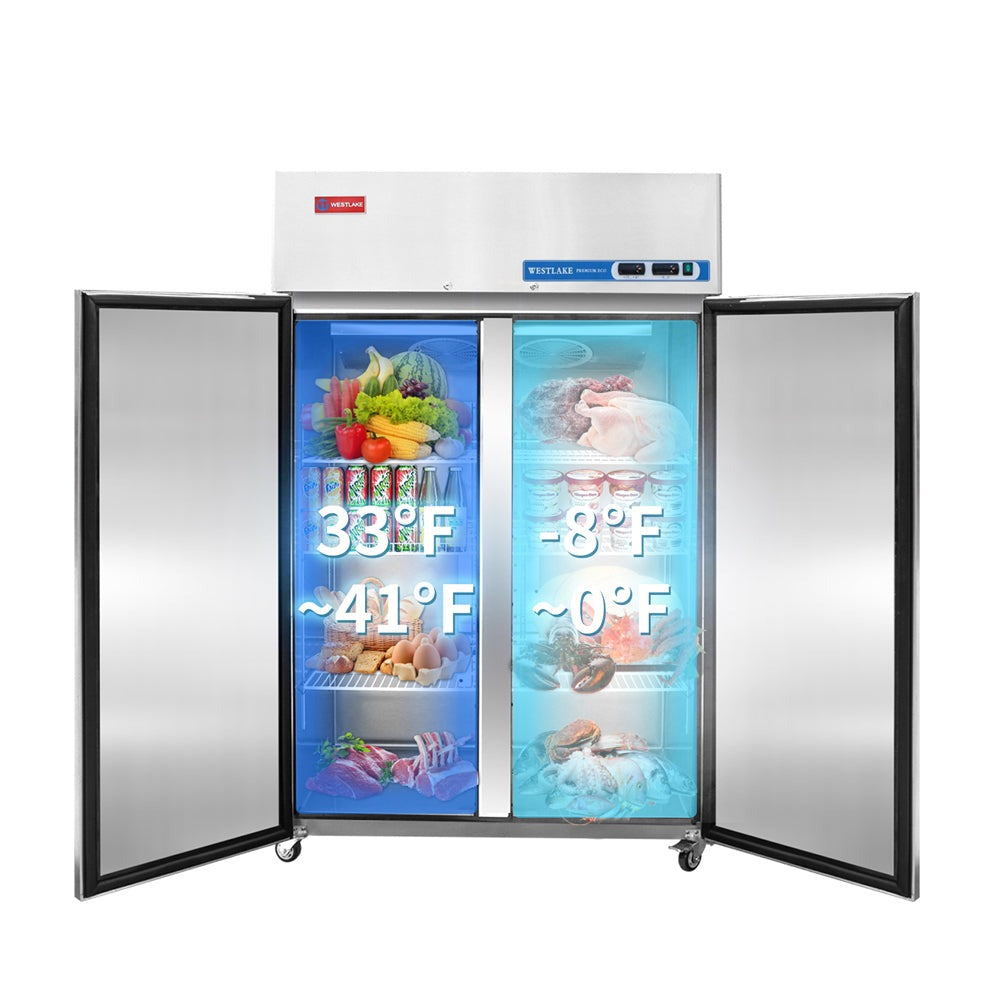

Two Temperature Zones in One Cabinet

One zone runs as a refrigerator at 33 °F to 41 °F and the other as a freezer at -8 °F to 0 °F. The cabinet is divided into two compartments, and each one measures 19.9 in. wide, 25 in. deep, and 55 in. high inside. You get both temperatures in one footprint and on one plug instead of finding wall space and an outlet for two separate machines.

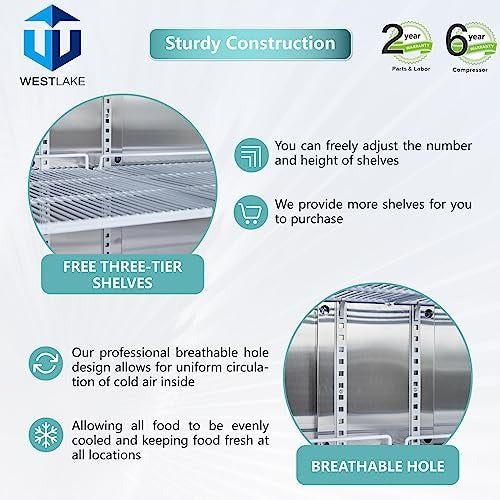

Six Epoxy Coated Wire Shelves Rated for 90 Pounds Each

Six epoxy coated steel wire shelves come with the cabinet, and each is rated for 90 lb. That rating matters when you load cases of dairy on one side and boxes of frozen product on the other instead of a few quart containers. The epoxy coating is there for cabinet air that is always cold and damp, where bare steel wire would rust, and open wire lets moving air pass through the load.

Ventilated Refrigeration with a Coated Copper Evaporator

A precision ventilated refrigeration system moves cold air through the cabinet instead of letting it settle, which keeps the top shelf and the bottom shelf close to the same temperature. The system is rated at 1/4 HP plus 1/2 HP and for rooms up to 100 °F, so it keeps up beside a hot line. The copper coil evaporator carries an anti-corrosion coating that protects the copper in a space that is always damp.

Electronic Control with Automatic Defrost

The electronic control lets you adjust the temperature set point and the defrost frequency, with no unmarked dial to guess at. It defrosts automatically every 4 hours, so frost does not build thick enough on the coil to choke airflow. Nobody on your crew has to schedule it or remember it.

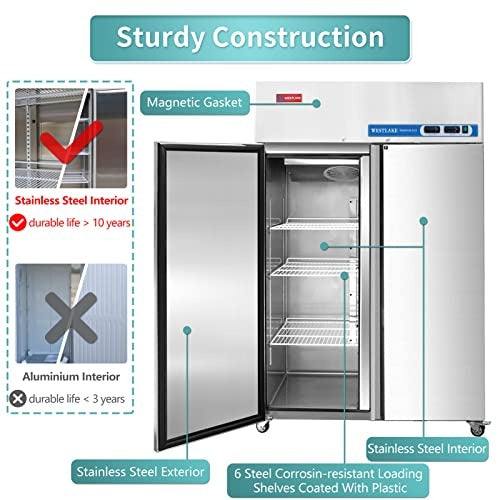

Stainless Steel Inside and Out with Self-Closing, Locking Doors

Exterior and interior are both stainless steel, so spills wipe off and the cabinet takes the knocks of a busy kitchen. The two solid doors swing shut on their own when a cook walks away with full hands, and they stay open at 90° while you load a delivery. Each door locks, and keys are included, which is useful overnight or in a shared kitchen. A top LED light comes on when a door opens and goes off when it closes.

Condenser Access Board and R290 Hydrocarbon Refrigerant

The refrigeration system sits on top of the cabinet, above the flour dust and mop water at floor level. A top installation board gives access to the condenser coil for cleaning and service, so brushing the coil is a short job, not a teardown. The refrigerant is R290, a hydrocarbon with zero ozone depletion potential and a global warming potential of 3.

Brake Casters and a NEMA 5-15P Plug

Heavy-duty casters with brakes come preinstalled. Roll the cabinet into place, lock the brakes, and release them when it is time to clean behind it. It measures 48.4 in. wide, 31.5 in. deep, and 78 in. high. Plan on about 53 in. front to back with a door swung open. Power is 115 V, single phase, 60 Hz at 5.2 amps. Net weight is 308 lb.

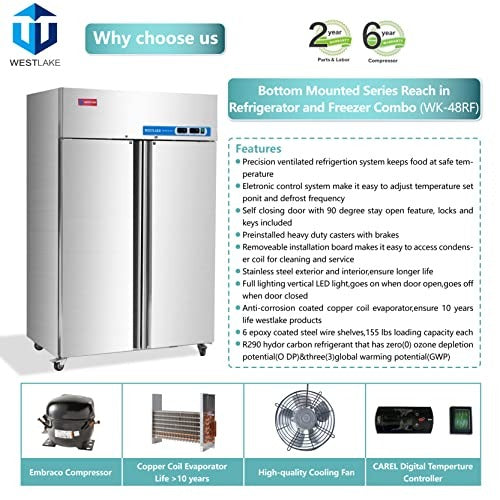

Features & Benefits

  1. Refrigerated and frozen storage side by side for kitchens short on floor space
  2. Separate refrigerator and freezer compartments in a single cabinet
  3. Precision ventilated refrigeration that keeps food at safe temperature
  4. Electronic control for adjusting temperature set point and defrost frequency
  5. Automatic defrost that runs every four hours without staff attention
  6. Self-closing solid doors with a 90° stay-open position for loading
  7. Door locks with keys included
  8. Stainless steel exterior and interior
  9. Top LED light that switches on when a door opens and off when it closes
  10. Epoxy coated steel wire shelves that let air move through the load
  11. Anti-corrosion coated copper coil evaporator
  12. Top installation board for easy condenser coil cleaning and service
  13. Preinstalled heavy-duty casters with brakes
  14. R290 hydrocarbon refrigerant with zero ozone depletion potential and a global warming potential of 3

Free Shipping ? 48 Contiguous states & DC only.

In Stock: Ships in 1-2 Business Days

$3,388.75
  • Refrigerated and frozen storage side by side for kitchens short on floor space
  • Separate refrigerator and freezer compartments in a single cabinet
  • Precision ventilated refrigeration that keeps food at safe temperature
  • Electronic control for adjusting temperature set point and defrost frequency
  • Automatic defrost that runs every four hours without staff attention
  • See full feature list

    The Westlake WK-48RF Reach-In Refrigerator Freezer Combo

    The Westlake WK-48RF is a top-mounted, two-door dual temperature reach-in: one compartment runs as a refrigerator at 33 °F to 41 °F and the other as a freezer at -8 °F to 0 °F. That puts the day's dairy and prep beside your backup frozen product in one 48.4 in. footprint, so a cook grabs both from the same spot. It is rated for kitchens up to 100 °F. Each compartment is 19.9 in. wide inside, so this is a cabinet for a small kitchen, food truck commissary, or satellite station; an operation that already fills two doors of refrigeration will find one door of each tight. It rolls in on brake casters, stands 78 in. tall, and plugs into a 115 V outlet through a NEMA 5-15P plug at 5.2 amps.

    Two Temperature Zones in One Cabinet

    One zone runs as a refrigerator at 33 °F to 41 °F and the other as a freezer at -8 °F to 0 °F. The cabinet is divided into two compartments, and each one measures 19.9 in. wide, 25 in. deep, and 55 in. high inside. You get both temperatures in one footprint and on one plug instead of finding wall space and an outlet for two separate machines.

    Six Epoxy Coated Wire Shelves Rated for 90 Pounds Each

    Six epoxy coated steel wire shelves come with the cabinet, and each is rated for 90 lb. That rating matters when you load cases of dairy on one side and boxes of frozen product on the other instead of a few quart containers. The epoxy coating is there for cabinet air that is always cold and damp, where bare steel wire would rust, and open wire lets moving air pass through the load.

    Ventilated Refrigeration with a Coated Copper Evaporator

    A precision ventilated refrigeration system moves cold air through the cabinet instead of letting it settle, which keeps the top shelf and the bottom shelf close to the same temperature. The system is rated at 1/4 HP plus 1/2 HP and for rooms up to 100 °F, so it keeps up beside a hot line. The copper coil evaporator carries an anti-corrosion coating that protects the copper in a space that is always damp.

    Electronic Control with Automatic Defrost

    The electronic control lets you adjust the temperature set point and the defrost frequency, with no unmarked dial to guess at. It defrosts automatically every 4 hours, so frost does not build thick enough on the coil to choke airflow. Nobody on your crew has to schedule it or remember it.

    Stainless Steel Inside and Out with Self-Closing, Locking Doors

    Exterior and interior are both stainless steel, so spills wipe off and the cabinet takes the knocks of a busy kitchen. The two solid doors swing shut on their own when a cook walks away with full hands, and they stay open at 90° while you load a delivery. Each door locks, and keys are included, which is useful overnight or in a shared kitchen. A top LED light comes on when a door opens and goes off when it closes.

    Condenser Access Board and R290 Hydrocarbon Refrigerant

    The refrigeration system sits on top of the cabinet, above the flour dust and mop water at floor level. A top installation board gives access to the condenser coil for cleaning and service, so brushing the coil is a short job, not a teardown. The refrigerant is R290, a hydrocarbon with zero ozone depletion potential and a global warming potential of 3.

    Brake Casters and a NEMA 5-15P Plug

    Heavy-duty casters with brakes come preinstalled. Roll the cabinet into place, lock the brakes, and release them when it is time to clean behind it. It measures 48.4 in. wide, 31.5 in. deep, and 78 in. high. Plan on about 53 in. front to back with a door swung open. Power is 115 V, single phase, 60 Hz at 5.2 amps. Net weight is 308 lb.

    Features & Benefits

    1. Refrigerated and frozen storage side by side for kitchens short on floor space
    2. Separate refrigerator and freezer compartments in a single cabinet
    3. Precision ventilated refrigeration that keeps food at safe temperature
    4. Electronic control for adjusting temperature set point and defrost frequency
    5. Automatic defrost that runs every four hours without staff attention
    6. Self-closing solid doors with a 90° stay-open position for loading
    7. Door locks with keys included
    8. Stainless steel exterior and interior
    9. Top LED light that switches on when a door opens and off when it closes
    10. Epoxy coated steel wire shelves that let air move through the load
    11. Anti-corrosion coated copper coil evaporator
    12. Top installation board for easy condenser coil cleaning and service
    13. Preinstalled heavy-duty casters with brakes
    14. R290 hydrocarbon refrigerant with zero ozone depletion potential and a global warming potential of 3

    Resources & Downloads

    Specifications

    Capacity36 cu. ft.
    Refrigerator Temperature Range33 °F to 41 °F
    Freezer Temperature Range-8 °F to 0 °F
    Sections2
    Doors2 solid, hinged, self-closing
    Door Stay-Open Position90°
    Door LocksYes, keys included
    Shelves6 epoxy coated steel wire
    Shelf Capacity90 lb each

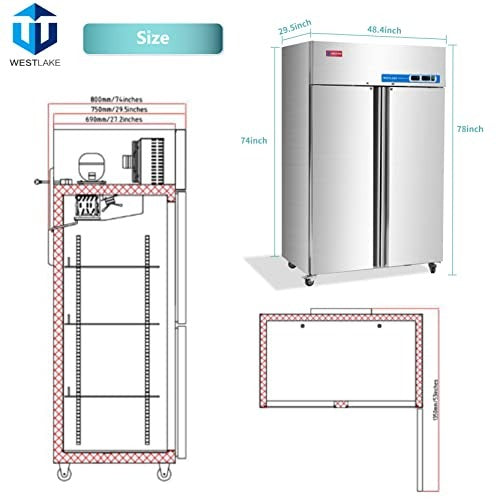

    Exterior Width48.4 in.
    Exterior Depth31.5 in.
    Exterior Height78 in.
    Interior Dimensions, Each Compartment (W x D x H)19.9 x 25 x 55 in.
    Depth with Door Open53 in.
    Net Weight308 lb
    Gross Weight388 lb
    Packing Dimensions (W x D x H)50 x 32.3 x 79.1 in.
    Voltage115 V
    Phase1
    Frequency60 Hz
    Amps5.2 A

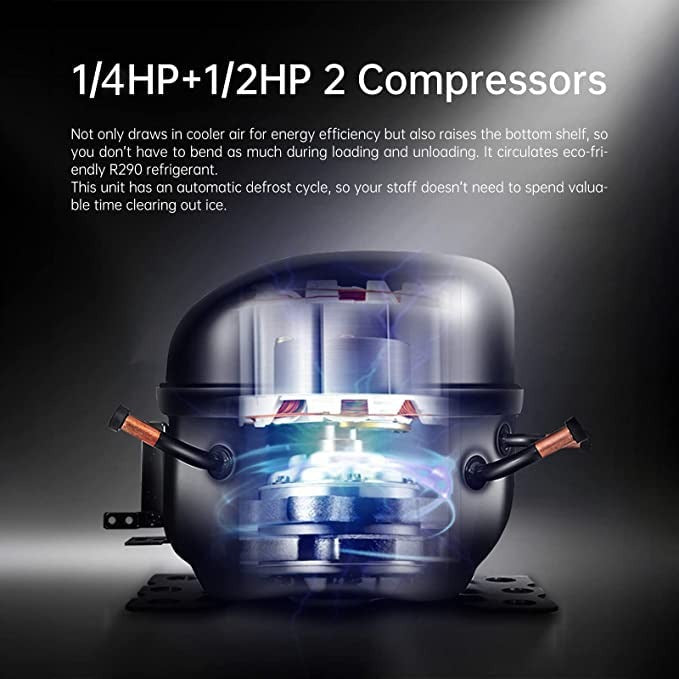

    Horsepower1/4 HP + 1/2 HP
    PlugNEMA 5-15P
    Cord Length70.8 in.
    RefrigerantR290
    Refrigeration SystemTop mounted, precision ventilated
    DefrostAutomatic, every 4 hours
    Max Ambient Temperature100 °F
    ControlElectronic
    EvaporatorAnti-corrosion coated copper coil
    Interior LightingLED, door activated
    Exterior FinishStainless steel
    Interior FinishStainless steel
    CastersHeavy duty with brakes, preinstalled

    Manufacturer's Warranty

    • 6 Year

      Compressor

    • 2 Year

      Labor

    • 2 Year

      Parts

    Certifications & Approvals

    • CETLUS
      ETL US & Canada
    • ETLSAN
      ETL Sanitation

    The Chef Store is your go-to online destination for commercial food service equipment. We are committed to making your shopping experience seamless and ensuring you have the resources needed to make informed purchasing decisions. We continuously invest in product information development so that you have the knowledge and tools to choose the right equipment for your business. Whether you need help understanding product specifications or recommendations for your specific use case, our experienced team is here to help. We receive ongoing product training from the manufacturers we represent to ensure you are always well-informed and up to date. We pride ourselves on our core expertise: providing answers to your questions, guiding you through the decision-making process, and ultimately helping you make the best equipment purchasing decisions for your business.

    We're here to help. To us, that means no job is too big or too small. Whether you’re a national food chain or a small mom-and-pop shop, our commitment remains the same: ensuring every project is completed to your satisfaction. From the moment you place your order to delivery, we are dedicated to ensuring a seamless, hassle-free process. We continually evaluate and refine our operations, incorporating innovative technology to enhance efficiency and streamline communication with both customers and vendors. Our goal is to minimize delays and ensure your order reaches you as quickly and smoothly as possible.

    We carry a wide range of trusted restaurant equipment brands, and our catalog is always growing. If there's a particular item or brand you don't see on our website, please reach out to us; we’d be happy to help you find it. Not to mention, we leverage manufacturer and buying group relationships to offer our customers great prices and savings. Through these partnerships, freight programs, rebate programs, and more, we are able to purchase equipment at significant discounts and pass along the savings to our customers.







    We're excited to serve you next!

    The Westlake WK-48RF Reach-In Refrigerator Freezer Combo

    About Reach-In Refrigerator/Freezer Combos

    A commercial reach-in refrigerator freezer combo puts both cold and frozen storage in one upright cabinet. This saves floor space and cuts down on the number of units you need to manage. Restaurants, delis, catering kitchens, and smaller operations use them when there just isn't room for separate reach-ins. You get both functions in one unit, so you keep your equipment footprint small without losing storage.

    Most commercial refrigerator freezer combos are side-by-side units. The refrigerator is on one side, the freezer on the other. Each section has its own door and its own temperature controls, so you keep both sides at the right temperature no matter how often you open the doors. Some models put the refrigerator on top and the freezer below, which can work better if you need a narrower footprint.

    You can get commercial reach-in refrigerator freezer combos in different sizes to fit your kitchen. A 48 inch combo is a solid pick for mid-size operations. Smaller units work if you have tight spaces or lower volume. Pick your size based on how much storage you need, your available floor space, and how your staff needs to access product during service.

    Common Types and Configurations

    • Side-by-Side Commercial Refrigerator Freezer Combo: The standard setup. Refrigerator and freezer sections are next to each other in one cabinet, each with its own door and temperature controls. You get equal access to both during service.
    • Top and Bottom Combo Unit: Refrigerator on top, freezer below, or the other way around. Use this if a side-by-side unit is too wide for your space.
    • 48 Inch Combo Unit: A mid-size unit that balances storage and footprint. Good for most full-service restaurants and delis that need both cold and frozen storage in one cabinet.
    • Small Commercial Refrigerator Freezer Combo: Compact units for low-volume kitchens or tight spaces. You still get both cold and frozen storage, just in a smaller footprint.
    • Glass Door Combo Unit: Glass doors on one or both sections let you see what's inside without opening the unit. Handy for self-serve or busy service areas.

    What to Look at Before You Buy

    • Cabinet Configuration: Pick side-by-side or top-and-bottom based on your floor space and how your staff needs to access product. Side-by-side units are wider but let you reach both sections at the same height.
    • Independent Temperature Controls: Each section should have its own thermostat and run independently. That way, your refrigerator stays between 33°F and 41°F, and your freezer holds at 0°F or below, with no crossover.
    • Storage Capacity: Figure out how much cold and frozen storage you really need at the line or station. If you need a lot more of one than the other, a dedicated reach-in might be a better fit than a combo.
    • Unit Width: Side-by-side combos are wider than single-section reach-ins. Measure your floor space and make sure the unit fits before you order.
    • Compressor Location: Most combos have either a top-mount or bottom-mount compressor. Top-mount works better in hot kitchens. Check the location and make sure you have enough clearance for airflow.
    • Door Configuration: Solid doors insulate better and hold temperature. Glass doors let you see inside and speed up workflow. Pick what fits your staff's needs during service.

    Frequently Asked Questions

    What is a commercial reach-in refrigerator freezer combo?

    A commercial reach-in refrigerator freezer combo is one upright cabinet with both a refrigerator and a freezer section. Each runs on its own temperature controls, so the refrigerator holds 33°F to 41°F and the freezer stays at 0°F or below. These units are for restaurants, delis, and other foodservice operations that need both cold and frozen storage but want to keep their equipment footprint small.

    What is the difference between a side-by-side and a split-door combo unit?

    A side-by-side combo puts the refrigerator and freezer next to each other in one wide cabinet, each with its own door. A split-door unit stacks them vertically in a narrower cabinet, with one door on top and one on the bottom. Side-by-side units let you reach both sections at a comfortable height. Split-door units save floor space but mean you have to crouch to get to the lower section.

    When does it make sense to use a combo unit instead of separate refrigerator and freezer units?

    A combo unit is a good choice when you need both cold and frozen storage but don't have space for two separate reach-ins. They're a fit for smaller restaurants, delis, food trucks, and catering kitchens with moderate volume. If you use a lot more of one type of storage, or need high capacity for both, go with dedicated units instead.
