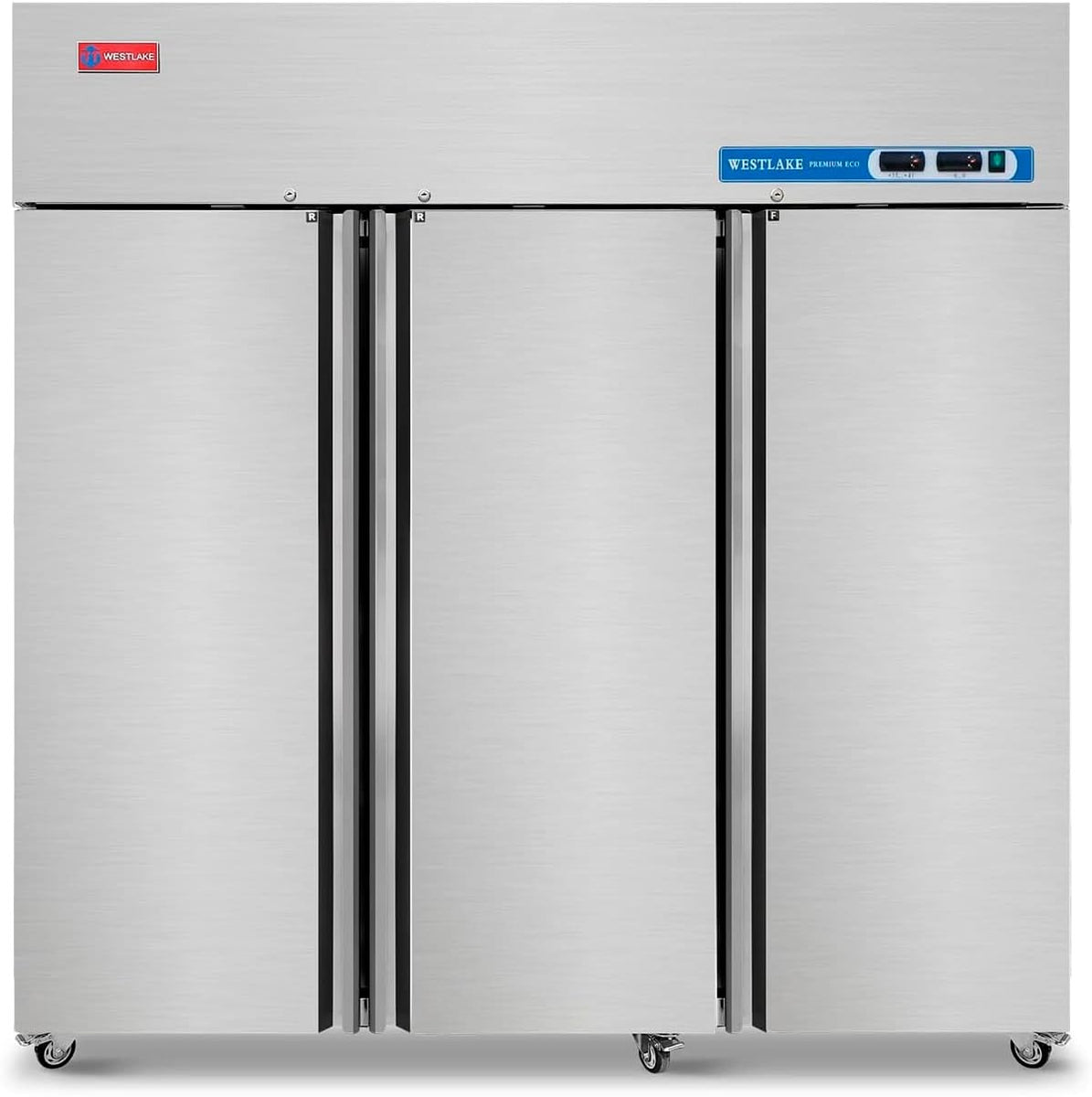

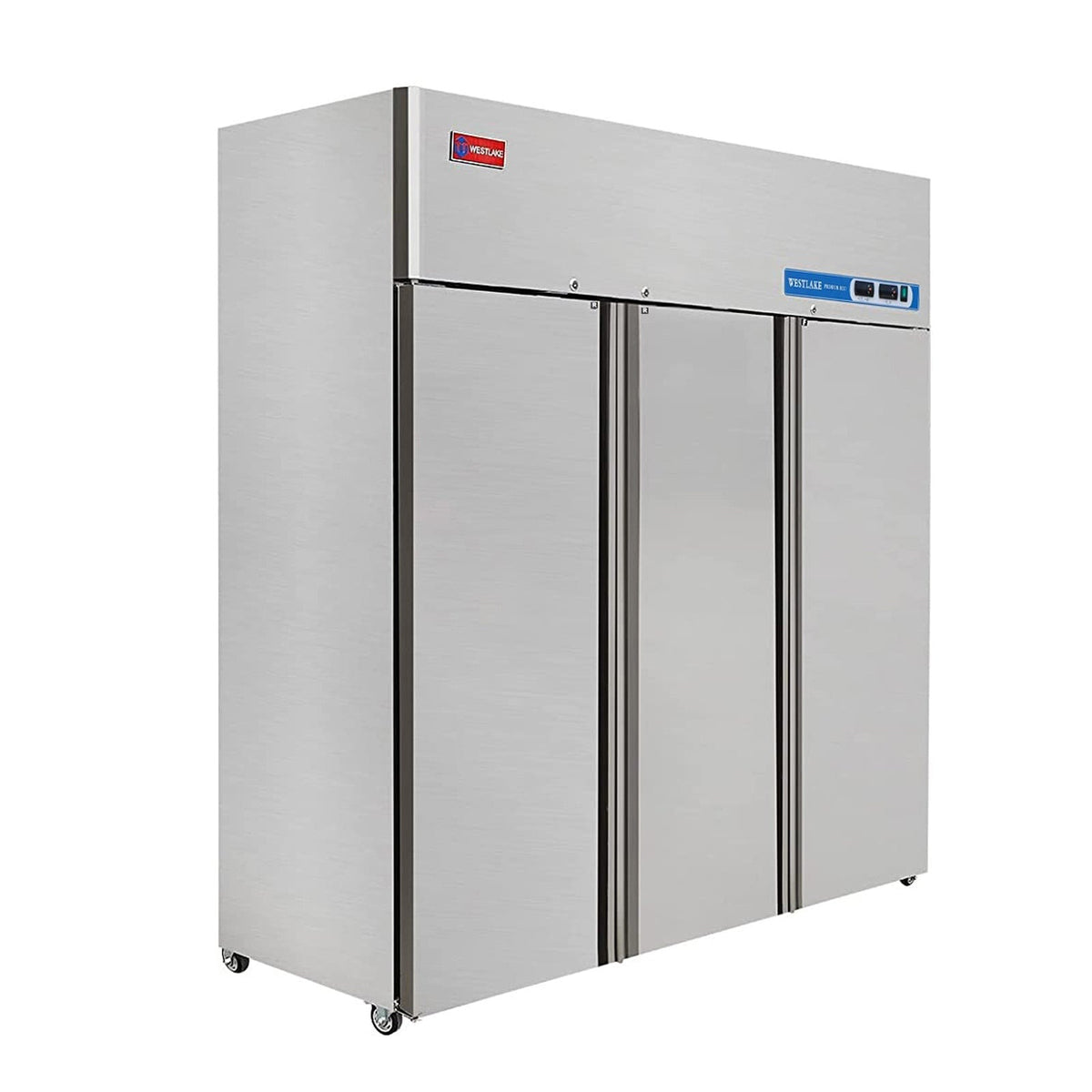

The Westlake WK-72RF Reach-In Refrigerator Freezer Combo

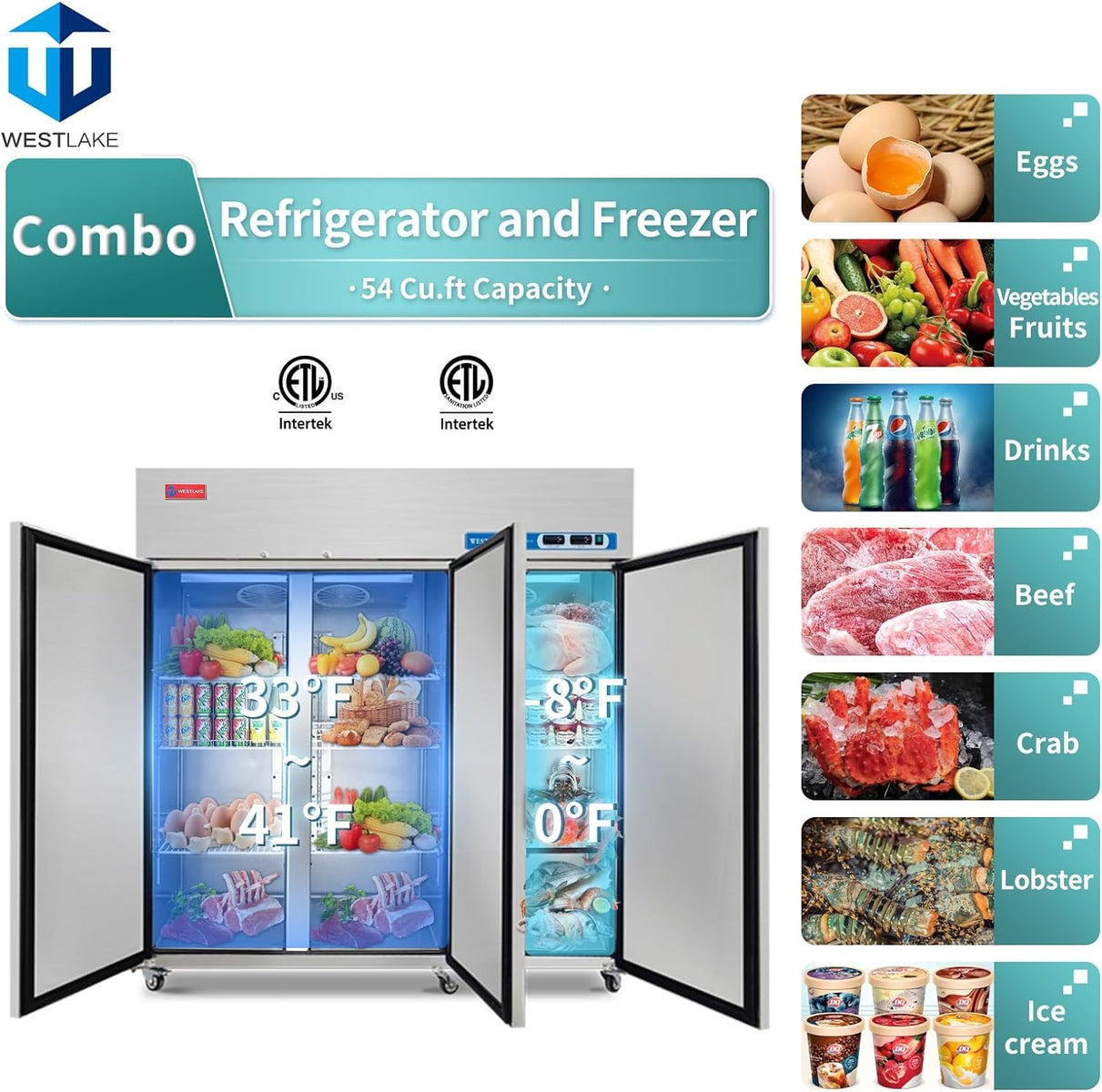

The Westlake WK-72RF is a three-door dual temperature reach-in that keeps refrigerated product at 33 °F to 41 °F and frozen product at -8 °F to 0 °F in a single stainless steel cabinet. The interior is split into a 45.3 in. wide compartment and a 21.3 in. wide compartment, so prepped ingredients and frozen backup stock sit side by side and a line cook does not walk to two machines. It is rated for kitchens up to 100 °F. At 72.8 in. wide it needs just over six feet of wall, and the uneven split suits a kitchen that leans heavily toward one temperature; if you need equal space for both, measure your stock against each compartment first. It arrives on brake casters, stands 78 in. tall, and runs on 115 V at 7 amps through a NEMA 5-15P plug.
Two Temperature Zones in One Cabinet
One zone runs as a refrigerator at 33 °F to 41 °F and the other as a freezer at -8 °F to 0 °F. The cabinet is divided into two compartments: one measures 45.3 in. wide and the other 21.3 in. wide, and both are 23.2 in. deep and 56.3 in. high inside. You get both temperatures in one footprint and on one plug instead of finding wall space and an outlet for two separate machines.
Nine Epoxy Coated Wire Shelves Rated for 90 Pounds Each
Nine epoxy coated steel wire shelves come with the cabinet, and each is rated for 90 lb. That rating matters when you load cases of dairy on one side and boxes of frozen product on the other instead of a few quart containers. The epoxy coating is there for cabinet air that is always cold and damp, where bare steel wire would rust, and open wire lets moving air pass through the load.
Ventilated Refrigeration with a Coated Copper Evaporator
A precision ventilated refrigeration system moves cold air through the cabinet instead of letting it settle, which keeps the top shelf and the bottom shelf close to the same temperature. The system is rated at 1/6 HP plus 1/4 HP and for rooms up to 100 °F, so it keeps up beside a hot line. The copper coil evaporator carries an anti-corrosion coating that protects the copper in a space that is always damp.
Electronic Control with Automatic Defrost
The electronic control lets you adjust the temperature set point and the defrost frequency, with no unmarked dial to guess at. Defrost is automatic, so frost does not build thick enough on the coil to choke airflow. Nobody on your crew has to schedule it or remember it.

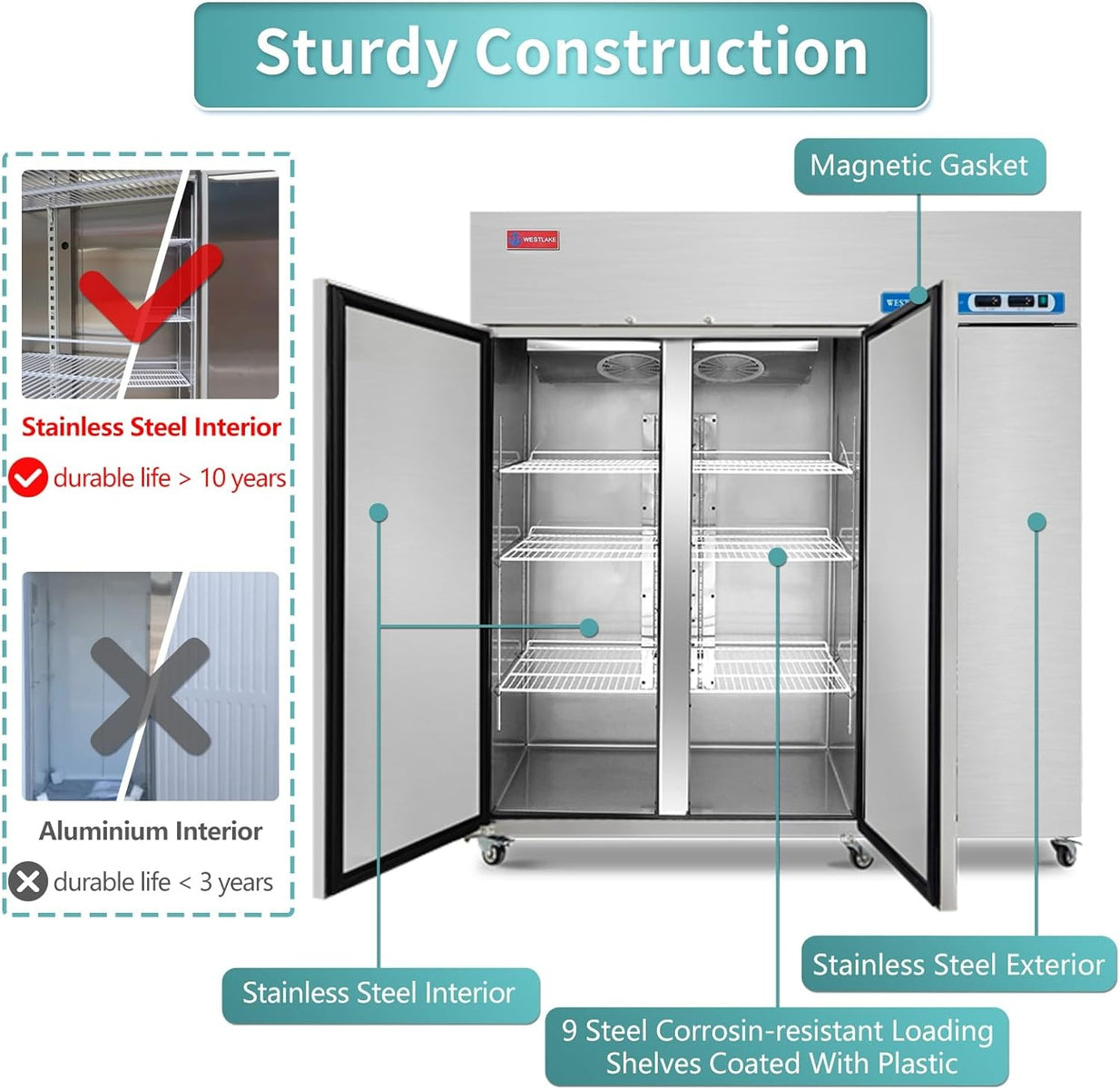

Stainless Steel Inside and Out with Self-Closing, Locking Doors
Exterior and interior are both stainless steel, so spills wipe off and the cabinet takes the knocks of a busy kitchen. The three solid doors swing shut on their own when a cook walks away with full hands, and they stay open at 90° while you load a delivery. Each door locks, and keys are included, which is useful overnight or in a shared kitchen. A top mounted LED light comes on when a door opens and goes off when it closes.
Condenser Access Board and R290 Hydrocarbon Refrigerant
A removable installation board gives access to the condenser coil for cleaning and service, so brushing the coil is a short job, not a teardown. A clean coil sheds heat easily; a clogged one makes the system run longer for the same result. The refrigerant is R290, a hydrocarbon with zero ozone depletion potential and a global warming potential of 3.
Brake Casters and a NEMA 5-15P Plug

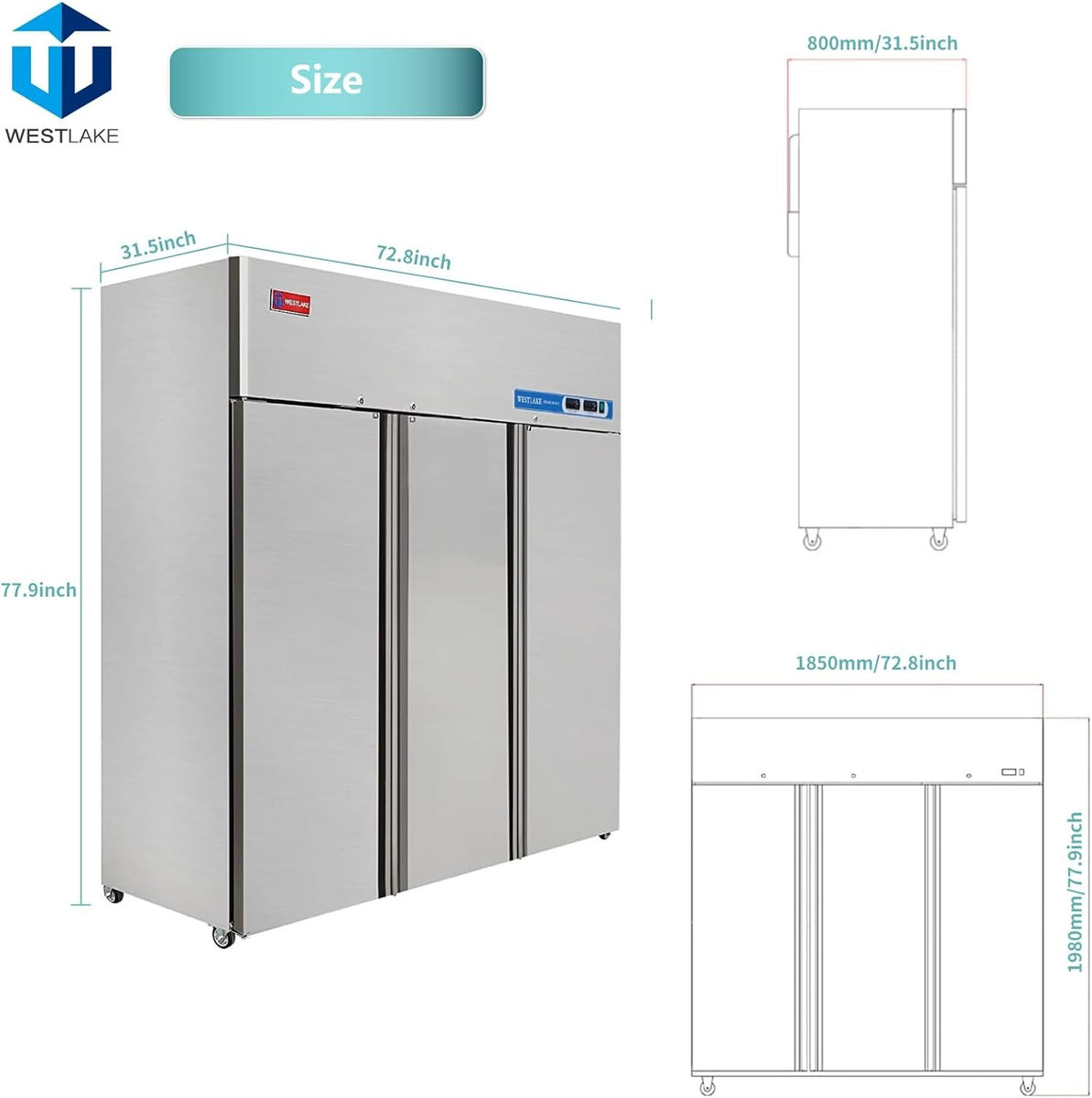

Heavy-duty casters with brakes come preinstalled. Roll the cabinet into place, lock the brakes, and release them when it is time to clean behind it. It measures 72.8 in. wide, 31.5 in. deep, and 78 in. high. Power is 115 V, single phase, 60 Hz at 7 amps. Net weight is 437 lb.
Features & Benefits
-
Refrigerated and frozen storage side by side for kitchens short on floor space
-
Separate refrigerator and freezer compartments in a single cabinet
-
Precision ventilated refrigeration that keeps food at safe temperature
-
Electronic control for adjusting temperature set point and defrost frequency
-
Automatic defrost that runs without staff attention
-
Self-closing solid doors with a 90° stay-open position for loading
-
Door locks with keys included
-
Stainless steel exterior and interior
-
Top mounted LED light that switches on when a door opens and off when it closes
-
Epoxy coated steel wire shelves that let air move through the load
-
Anti-corrosion coated copper coil evaporator
-
Removable installation board for easy condenser coil cleaning and service
-
Preinstalled heavy-duty casters with brakes
-
R290 hydrocarbon refrigerant with zero ozone depletion potential and a global warming potential of 3
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
The Westlake WK-72RF Reach-In Refrigerator Freezer Combo
The Westlake WK-72RF is a three-door dual temperature reach-in that keeps refrigerated product at 33 °F to 41 °F and frozen product at -8 °F to 0 °F in a single stainless steel cabinet. The interior is split into a 45.3 in. wide compartment and a 21.3 in. wide compartment, so prepped ingredients and frozen backup stock sit side by side and a line cook does not walk to two machines. It is rated for kitchens up to 100 °F. At 72.8 in. wide it needs just over six feet of wall, and the uneven split suits a kitchen that leans heavily toward one temperature; if you need equal space for both, measure your stock against each compartment first. It arrives on brake casters, stands 78 in. tall, and runs on 115 V at 7 amps through a NEMA 5-15P plug.
Two Temperature Zones in One Cabinet
One zone runs as a refrigerator at 33 °F to 41 °F and the other as a freezer at -8 °F to 0 °F. The cabinet is divided into two compartments: one measures 45.3 in. wide and the other 21.3 in. wide, and both are 23.2 in. deep and 56.3 in. high inside. You get both temperatures in one footprint and on one plug instead of finding wall space and an outlet for two separate machines.
Nine Epoxy Coated Wire Shelves Rated for 90 Pounds Each
Nine epoxy coated steel wire shelves come with the cabinet, and each is rated for 90 lb. That rating matters when you load cases of dairy on one side and boxes of frozen product on the other instead of a few quart containers. The epoxy coating is there for cabinet air that is always cold and damp, where bare steel wire would rust, and open wire lets moving air pass through the load.
Ventilated Refrigeration with a Coated Copper Evaporator
A precision ventilated refrigeration system moves cold air through the cabinet instead of letting it settle, which keeps the top shelf and the bottom shelf close to the same temperature. The system is rated at 1/6 HP plus 1/4 HP and for rooms up to 100 °F, so it keeps up beside a hot line. The copper coil evaporator carries an anti-corrosion coating that protects the copper in a space that is always damp.
Electronic Control with Automatic Defrost
The electronic control lets you adjust the temperature set point and the defrost frequency, with no unmarked dial to guess at. Defrost is automatic, so frost does not build thick enough on the coil to choke airflow. Nobody on your crew has to schedule it or remember it.
Stainless Steel Inside and Out with Self-Closing, Locking Doors
Exterior and interior are both stainless steel, so spills wipe off and the cabinet takes the knocks of a busy kitchen. The three solid doors swing shut on their own when a cook walks away with full hands, and they stay open at 90° while you load a delivery. Each door locks, and keys are included, which is useful overnight or in a shared kitchen. A top mounted LED light comes on when a door opens and goes off when it closes.
Condenser Access Board and R290 Hydrocarbon Refrigerant
A removable installation board gives access to the condenser coil for cleaning and service, so brushing the coil is a short job, not a teardown. A clean coil sheds heat easily; a clogged one makes the system run longer for the same result. The refrigerant is R290, a hydrocarbon with zero ozone depletion potential and a global warming potential of 3.
Brake Casters and a NEMA 5-15P Plug
Heavy-duty casters with brakes come preinstalled. Roll the cabinet into place, lock the brakes, and release them when it is time to clean behind it. It measures 72.8 in. wide, 31.5 in. deep, and 78 in. high. Power is 115 V, single phase, 60 Hz at 7 amps. Net weight is 437 lb.
Features & Benefits
-
Refrigerated and frozen storage side by side for kitchens short on floor space
-
Separate refrigerator and freezer compartments in a single cabinet
-
Precision ventilated refrigeration that keeps food at safe temperature
-
Electronic control for adjusting temperature set point and defrost frequency
-
Automatic defrost that runs without staff attention
-
Self-closing solid doors with a 90° stay-open position for loading
-
Door locks with keys included
-
Stainless steel exterior and interior
-
Top mounted LED light that switches on when a door opens and off when it closes
-
Epoxy coated steel wire shelves that let air move through the load
-
Anti-corrosion coated copper coil evaporator
-
Removable installation board for easy condenser coil cleaning and service
-
Preinstalled heavy-duty casters with brakes
-
R290 hydrocarbon refrigerant with zero ozone depletion potential and a global warming potential of 3
Resources & Downloads
Specifications
| Capacity | 54 cu. ft. |
| Refrigerator Temperature Range | 33 °F to 41 °F |
| Freezer Temperature Range | -8 °F to 0 °F |
| Sections | 3 |
| Doors | 3 solid, hinged, self-closing |
| Door Stay-Open Position | 90° |
| Door Locks | Yes, keys included |
| Shelves | 9 epoxy coated steel wire |
| Shelf Capacity | 90 lb each |
| Exterior Width | 72.8 in. |
| Exterior Depth | 31.5 in. |
| Exterior Height | 78 in. |
| Interior Dimensions, Compartment 1 (W x D x H) | 45.3 x 23.2 x 56.3 in. |
| Interior Dimensions, Compartment 2 (W x D x H) | 21.3 x 23.2 x 56.3 in. |
| Net Weight | 437 lb |
| Gross Weight | 521 lb |
| Packing Dimensions (W x D x H) | 76 x 34 x 82 in. |
| Voltage | 115 V |
| Phase | 1 |
| Frequency | 60 Hz |
| Amps | 7 A |
| Horsepower | 1/6 HP + 1/4 HP |
| Plug | NEMA 5-15P |
| Cord Length | 70.8 in. |
| Refrigerant | R290 |
| Refrigeration System | Precision ventilated |
| Defrost | Automatic |
| Max Ambient Temperature | 100 °F |
| Control | Electronic |
| Evaporator | Anti-corrosion coated copper coil |
| Interior Lighting | LED, door activated |
| Exterior Finish | Stainless steel |
| Interior Finish | Stainless steel |
| Casters | Heavy duty with brakes, preinstalled |
Manufacturer's Warranty
-
6 Year
Compressor
-
2 Year
Labor
-
2 Year
Parts
Certifications & Approvals
-
ETL US & Canada
-
ETL Sanitation
