Westlake WK-BD600 20.4 Cu. Ft. Chest Freezer, 2 Solid Hinged Lids, Lock, LED Light

SKUWK-BD600 BrandWestlake
Westlake WK-BD600 20.4 Cu. Ft. Chest Freezer, 2 Solid Hinged Lids, Lock, LED Light

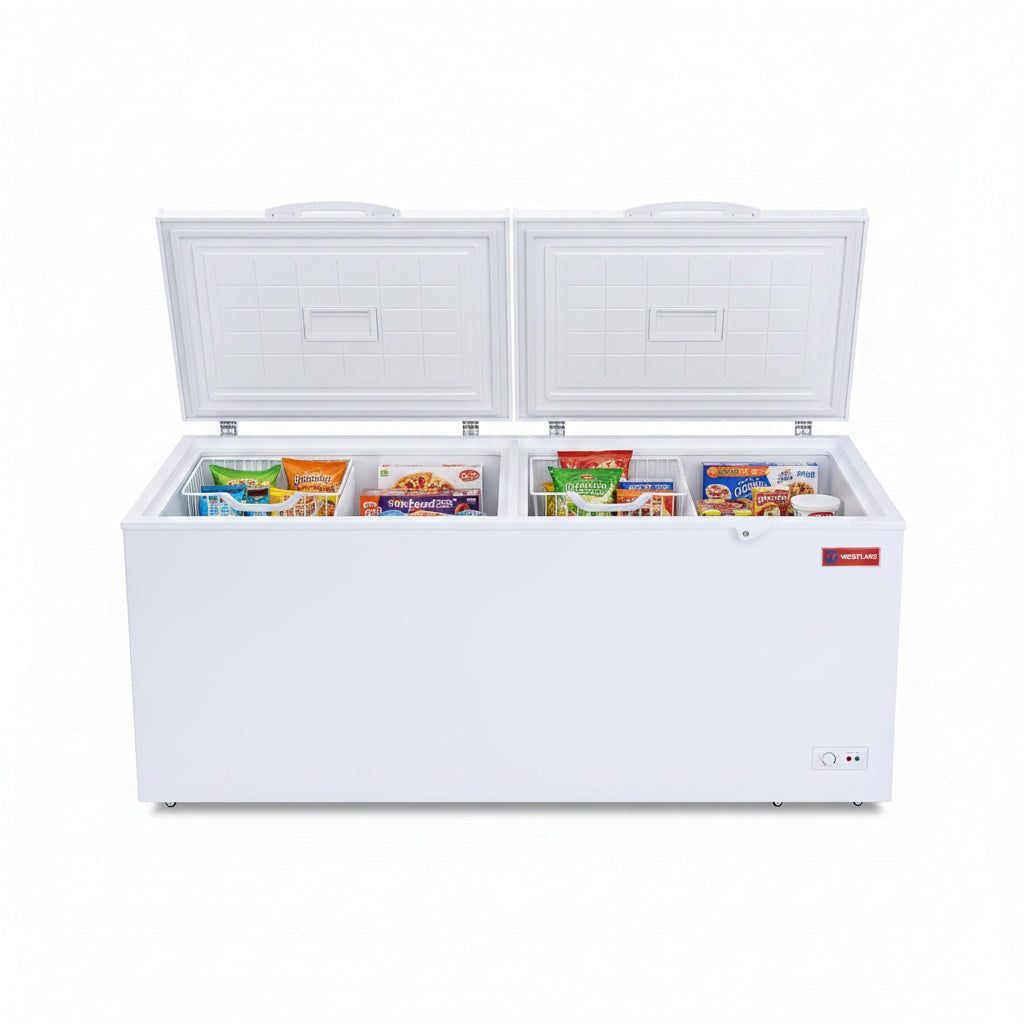

The Westlake WK-BD600 Chest Freezer

The Westlake WK-BD600 is a 20.4 cu. ft. manual defrost chest freezer with two solid hinged lids, an aluminum interior, and a painted steel exterior. Two lids cover the 20.4 cu. ft. well, so a cook grabbing fries from the left side does not uncover the proteins on the right. Foamed-in-place polyurethane insulation is built to keep performing in 100 °F ambient, such as a hot storeroom or a garage in August. At 26.3 in. front to back it sits shallow against a wall, but it needs more than six feet of run. It is back-of-house bulk storage for a busy kitchen or a caterer, and it is more freezer than a low-volume snack bar will keep full. It plugs into a 115 V outlet with a NEMA 5-15P cord, covers a 75.9 in. by 26.3 in. footprint, and needs 58.6 in. of height with the lid raised.

20.4 Cu. Ft. Aluminum-Lined Storage Well

The well holds 20.4 cu. ft. inside an aluminum liner. One epoxy-coated steel basket rated for 33 lb comes with the cabinet. Keep the small, fast-moving items there, like portion bags or a box of ice cream bars, so nobody digs to the bottom during a rush. Everything else stacks in the well. Plan your layers: slow movers low, tonight's product on top.

Thermostat Range for Freezing or Refrigeration

The temperature range covers two bands: 6 °F down to -11 °F for freezing, and 32 °F to 46 °F for refrigeration. Run it at the cold end of the freezing band for long-hold proteins and ice cream, or set it in the refrigeration band when you need a chest of cold drinks or a place to hold product for a catering weekend. The control is a front-mounted thermostat dial with two indicator lights, so keep a thermometer in the basket for your temperature log.

Direct Cooling with R290 Refrigerant

Cooling is direct. Unlike an upright, where cold air pours out the moment the door swings, a chest keeps its cold in the well when you lift the lid, because cold air sinks and has nowhere to go. The trade is manual defrost. Frost builds up over time and has to be cleared manually. The system runs on R290, a hydrocarbon refrigerant with zero ozone depletion potential and a global warming potential of 3, and it is rated at 294 W.

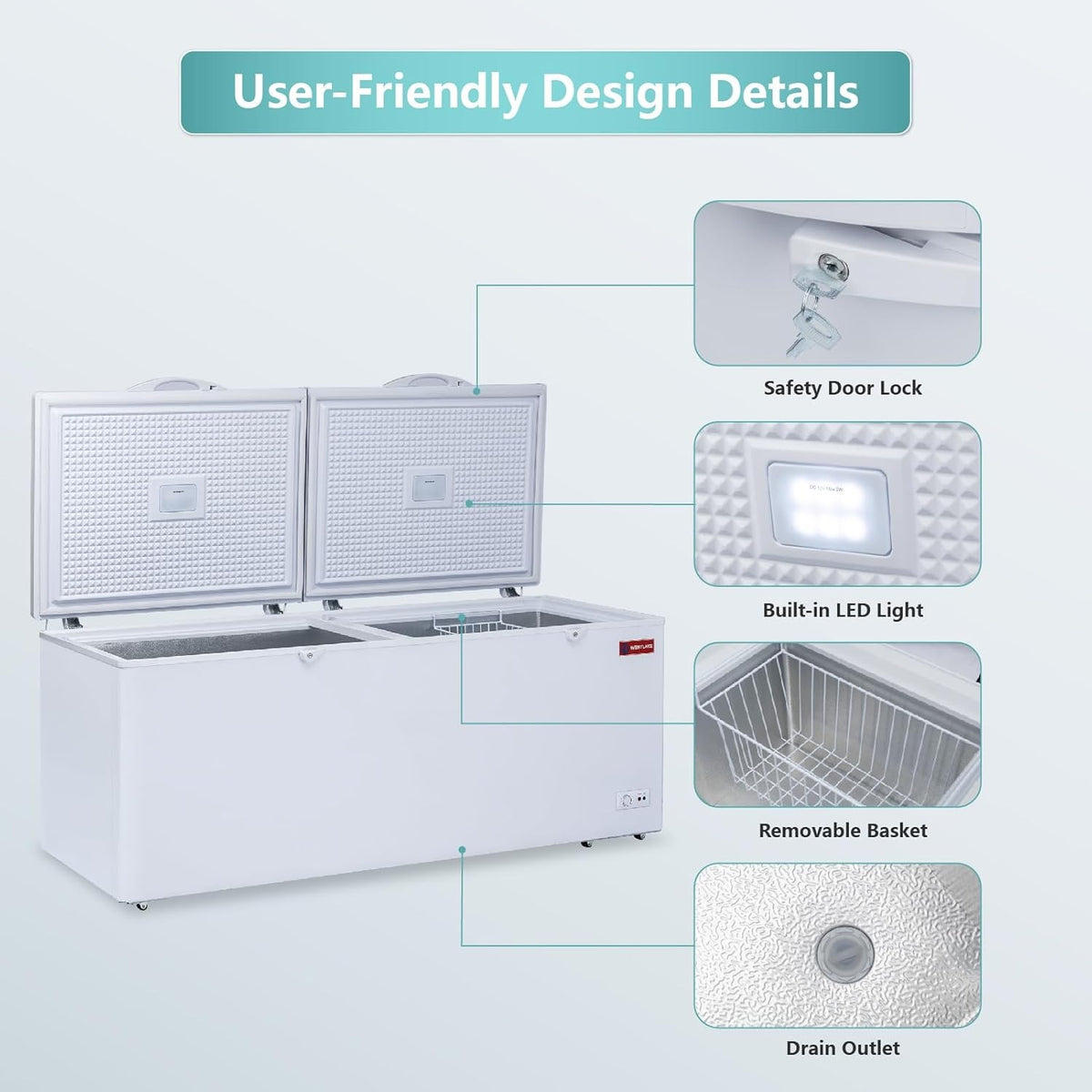

Damping Hinges, LED Lid Light, and Key Lock

Each of the two lids rides on a damping hinge that holds at any angle between 45° and 75°. You can raise it with one hand, load a case with both, and it will not drop on your arms. An LED light built into the lid lights the well, which matters in a dim storeroom at 5 a.m. The lock keeps high-cost proteins secured after close or in a shared space.

Foamed-in-Place Insulation for 100 °F Rooms

Polyurethane insulation is foamed in place between the aluminum liner and the painted steel shell. That is what lets the cabinet maintain performance in 100 °F ambient, and why it is rated garage ready as well as for commercial use. The cabinet measures 75.9 in. wide, 26.3 in. deep, and 32.4 in. high and weighs 165 lb empty. Check your doorways and the wall space before it arrives.

Features & Benefits

  1. Bulk frozen storage for kitchens, concession stands, and commissaries that buy by the case
  2. Thermostat range that covers both freezing and refrigeration temperatures
  3. Direct cooling with manual defrost
  4. R290 hydrocarbon refrigerant with zero ozone depletion potential
  5. Foamed-in-place polyurethane insulation that maintains performance in hot rooms
  6. Aluminum interior liner that will not rust
  7. Painted steel cabinet shell
  8. Two solid lids on damping hinges that hold open between 45° and 75°
  9. LED light built into the lid
  10. Lock to secure contents after hours
  11. Epoxy-coated steel storage basket included
  12. Front-mounted thermostat dial with indicator lights
  13. Rated for commercial use and garage ready
  14. Standard NEMA 5-15P cord for a common wall outlet

Free Shipping ? 48 Contiguous states & DC only.

In Stock: Ships in 1-2 Business Days

$1,234.05
  • Bulk frozen storage for kitchens, concession stands, and commissaries that buy by the case
  • Thermostat range that covers both freezing and refrigeration temperatures
  • Direct cooling with manual defrost
  • R290 hydrocarbon refrigerant with zero ozone depletion potential
  • Foamed-in-place polyurethane insulation that maintains performance in hot rooms
    • See full feature list

    The Westlake WK-BD600 Chest Freezer

    The Westlake WK-BD600 is a 20.4 cu. ft. manual defrost chest freezer with two solid hinged lids, an aluminum interior, and a painted steel exterior. Two lids cover the 20.4 cu. ft. well, so a cook grabbing fries from the left side does not uncover the proteins on the right. Foamed-in-place polyurethane insulation is built to keep performing in 100 °F ambient, such as a hot storeroom or a garage in August. At 26.3 in. front to back it sits shallow against a wall, but it needs more than six feet of run. It is back-of-house bulk storage for a busy kitchen or a caterer, and it is more freezer than a low-volume snack bar will keep full. It plugs into a 115 V outlet with a NEMA 5-15P cord, covers a 75.9 in. by 26.3 in. footprint, and needs 58.6 in. of height with the lid raised.

    20.4 Cu. Ft. Aluminum-Lined Storage Well

    The well holds 20.4 cu. ft. inside an aluminum liner. One epoxy-coated steel basket rated for 33 lb comes with the cabinet. Keep the small, fast-moving items there, like portion bags or a box of ice cream bars, so nobody digs to the bottom during a rush. Everything else stacks in the well. Plan your layers: slow movers low, tonight's product on top.

    Thermostat Range for Freezing or Refrigeration

    The temperature range covers two bands: 6 °F down to -11 °F for freezing, and 32 °F to 46 °F for refrigeration. Run it at the cold end of the freezing band for long-hold proteins and ice cream, or set it in the refrigeration band when you need a chest of cold drinks or a place to hold product for a catering weekend. The control is a front-mounted thermostat dial with two indicator lights, so keep a thermometer in the basket for your temperature log.

    Direct Cooling with R290 Refrigerant

    Cooling is direct. Unlike an upright, where cold air pours out the moment the door swings, a chest keeps its cold in the well when you lift the lid, because cold air sinks and has nowhere to go. The trade is manual defrost. Frost builds up over time and has to be cleared manually. The system runs on R290, a hydrocarbon refrigerant with zero ozone depletion potential and a global warming potential of 3, and it is rated at 294 W.

    Damping Hinges, LED Lid Light, and Key Lock

    Each of the two lids rides on a damping hinge that holds at any angle between 45° and 75°. You can raise it with one hand, load a case with both, and it will not drop on your arms. An LED light built into the lid lights the well, which matters in a dim storeroom at 5 a.m. The lock keeps high-cost proteins secured after close or in a shared space.

    Foamed-in-Place Insulation for 100 °F Rooms

    Polyurethane insulation is foamed in place between the aluminum liner and the painted steel shell. That is what lets the cabinet maintain performance in 100 °F ambient, and why it is rated garage ready as well as for commercial use. The cabinet measures 75.9 in. wide, 26.3 in. deep, and 32.4 in. high and weighs 165 lb empty. Check your doorways and the wall space before it arrives.

    Features & Benefits

    1. Bulk frozen storage for kitchens, concession stands, and commissaries that buy by the case
    2. Thermostat range that covers both freezing and refrigeration temperatures
    3. Direct cooling with manual defrost
    4. R290 hydrocarbon refrigerant with zero ozone depletion potential
    5. Foamed-in-place polyurethane insulation that maintains performance in hot rooms
    6. Aluminum interior liner that will not rust
    7. Painted steel cabinet shell
    8. Two solid lids on damping hinges that hold open between 45° and 75°
    9. LED light built into the lid
    10. Lock to secure contents after hours
    11. Epoxy-coated steel storage basket included
    12. Front-mounted thermostat dial with indicator lights
    13. Rated for commercial use and garage ready
    14. Standard NEMA 5-15P cord for a common wall outlet

    Resources & Downloads

    Specifications

    Capacity20.4 cu. ft.
    Freezing Temperature Range6 °F to -11 °F
    Refrigeration Temperature Range32 °F to 46 °F
    Cooling MethodDirect cooling
    DefrostManual
    RefrigerantR290
    Power294 W
    Voltage115 V
    Frequency60 Hz
    PlugNEMA 5-15P

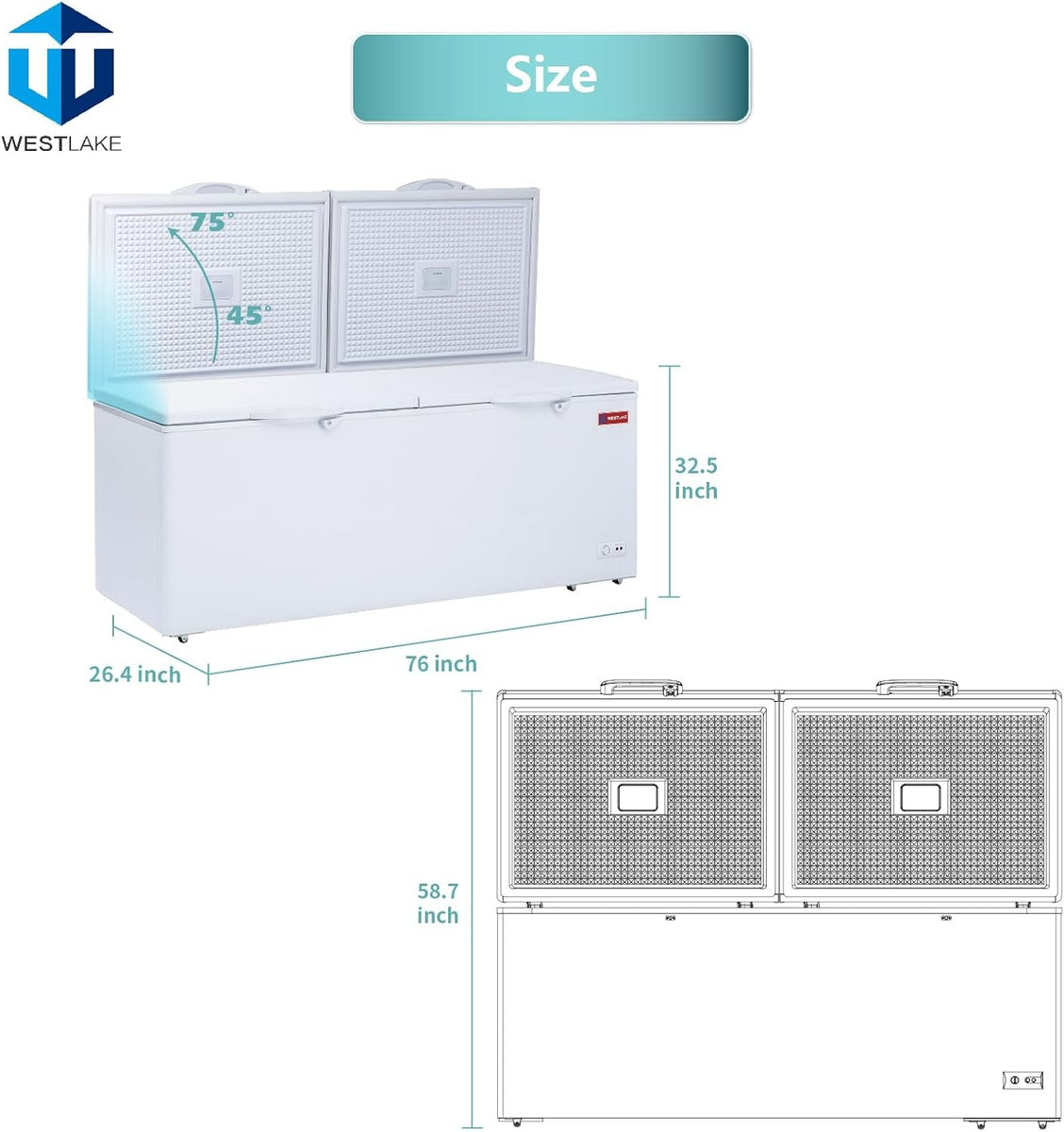

    Exterior Width75.9 in.
    Exterior Depth26.3 in.
    Exterior Height32.4 in.
    Height with Lid Open58.6 in.
    Net Weight165 lb
    Gross Weight209 lb
    Packed Dimensions (W x D x H)77.7 x 30.3 x 34.2 in.
    Number of Lids2
    Lid TypeSolid, hinged
    Lid HingeDamping, holds at 45° to 75°
    LockYes
    Interior LightLED, in lid
    Interior FinishAluminum
    Exterior FinishPainted steel
    InsulationFoamed-in-place polyurethane
    Baskets1, epoxy-coated steel
    Basket Weight Capacity33 lb
    Rated Ambient Temperature100 °F
    Temperature ControlThermostat dial

    Manufacturer's Warranty

    • 6 Year

      Compressor

    • 2 Year

      Labor

    • 2 Year

      Parts

    Certifications & Approvals

    • CETLUS
      ETL US & Canada
    • ETLSAN
      ETL Sanitation
