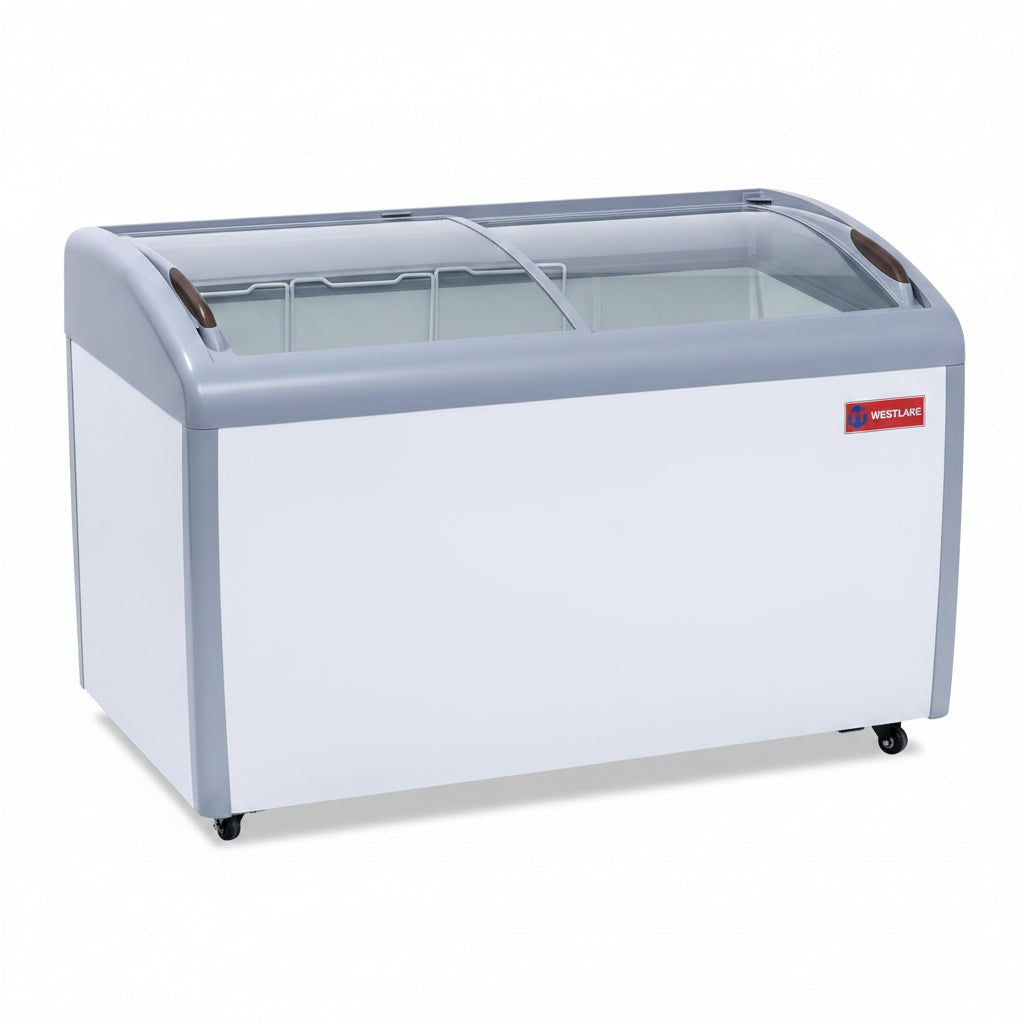

Westlake WK-SD360JY 50 In. Ice Cream Display Chest Freezer, Curved Glass Sliding Lids, 3 Baskets, Casters

The Westlake WK-SD360JY is a 49.6 in. wide ice cream display chest freezer with Low-E curved glass sliding lids, an angle top, and 3 epoxy-coated steel baskets. Customers see ice cream bars, pints, and novelties through the glass and slide a lid to serve themselves, while a freezing range of 6 °F to -14 °F keeps hard-frozen product hard. Foamed-in-place insulation maintains performance in 100 °F ambient, which covers a storefront with the door propped open in July. It is a packaged-product merchandiser: it comes with baskets, not tub holders for scooping. At 49.6 in. wide with three baskets, it gives a convenience store or concession area a real novelty selection in about four feet of floor. It is more case than a single-register kiosk needs. It rolls into place on casters and plugs into a 115 V outlet with a NEMA 5-15P cord, on a footprint of 49.6 in. by 27.7 in.

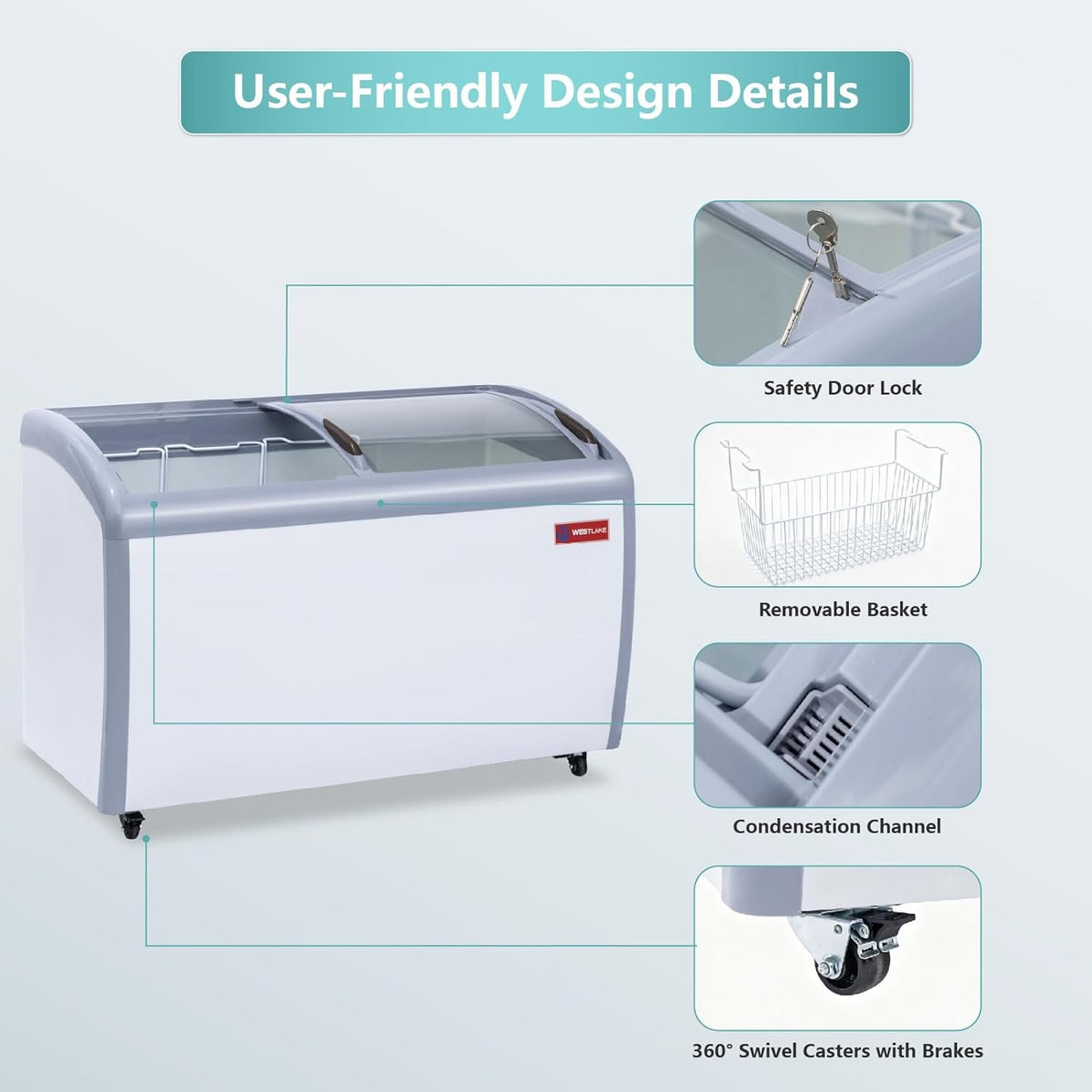

Low-E Curved Glass Sliding Lids with Lock

The top is closed by curved glass lids that slide rather than lift, so a customer can reach in with one hand and nothing swings up into the aisle. The glass is Low-E. The lids lock. At close, or at an unattended counter, you turn the key instead of emptying the case.

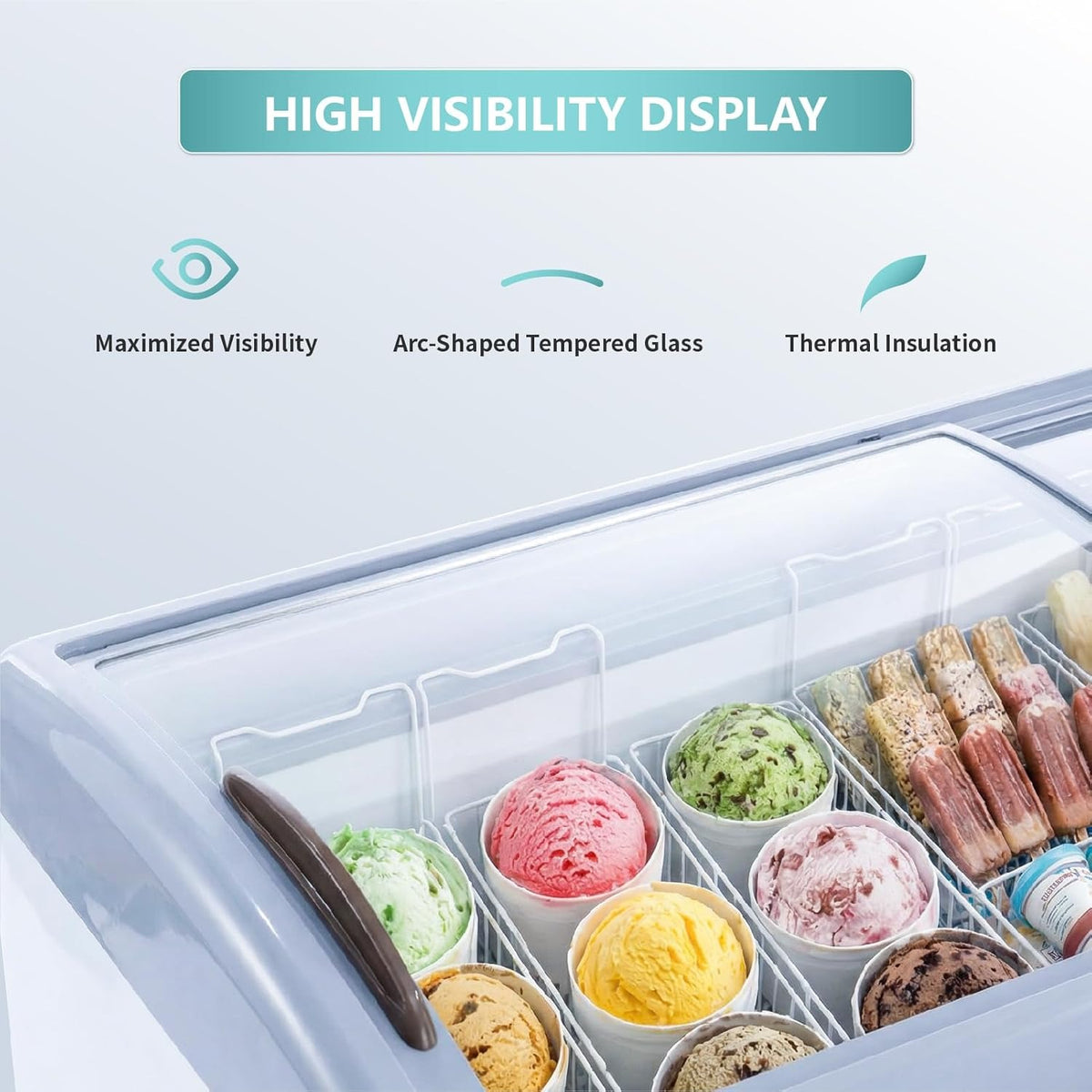

Angle Top Display and Epoxy-Coated Basket Storage

The angle top tilts the clear glass toward the shopper, so product is visible from across the counter and not only from directly above. Inside, 3 epoxy-coated steel baskets each hold up to 33 lb. Use them to separate product by type, bars in one section and pints or cones in another, and to lift them out for restocking or cleaning. The interior is steel.

Thermostat Range for Freezing or Refrigeration

The temperature range covers two bands: 6 °F down to -14 °F for freezing, and 32 °F to 41 °F for refrigeration. The cold end of the freezing band is where ice cream and novelties hold their shape through a day of lids sliding open. The refrigeration band lets you run the same cabinet as a chilled display when the frozen season ends. A thermostat dial sets the temperature, with power and run indicator lights beside it.

Direct Cooling with R290 Refrigerant

Cooling is direct. Because the cold sits low in a chest, it stays in the well when a lid slides back, unlike an upright case that loses cold air every time the door opens. The system runs on R290, a hydrocarbon refrigerant with zero ozone depletion potential and a global warming potential of 3, and it is rated at 340 W.

Powder Coated Steel Cabinet on Casters

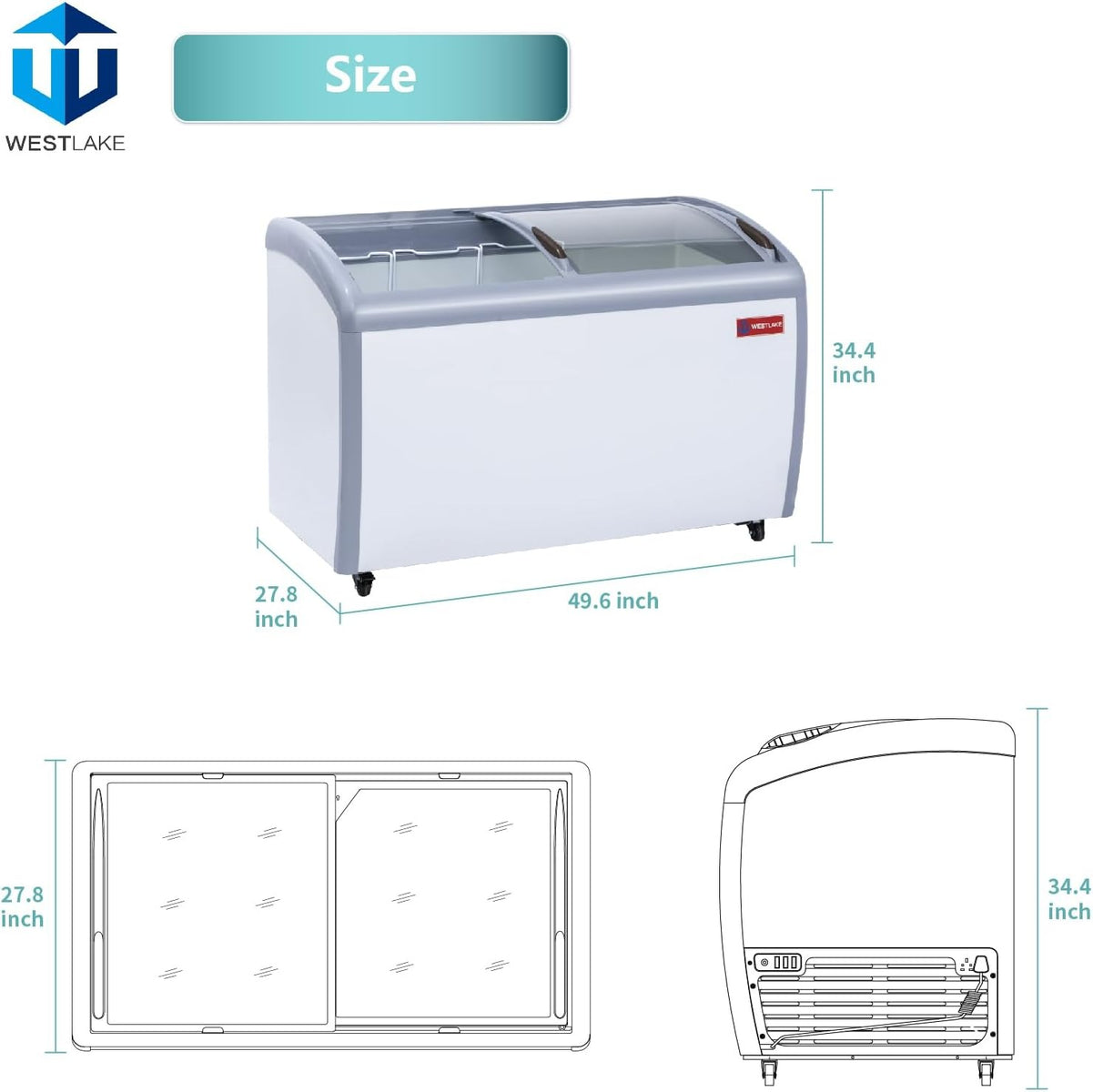

The cabinet is steel with a powder coated painted surface, and polyurethane insulation is foamed in place inside it. That insulation is what lets the freezer maintain performance in 100 °F ambient and carry a garage ready rating as well as a commercial one. Swivel casters with brakes let you roll it out to mop or move it to the front for a promotion, then lock it in place. The cabinet is 49.6 in. wide, 27.7 in. deep, and 34.4 in. high and weighs 127 lb empty.
