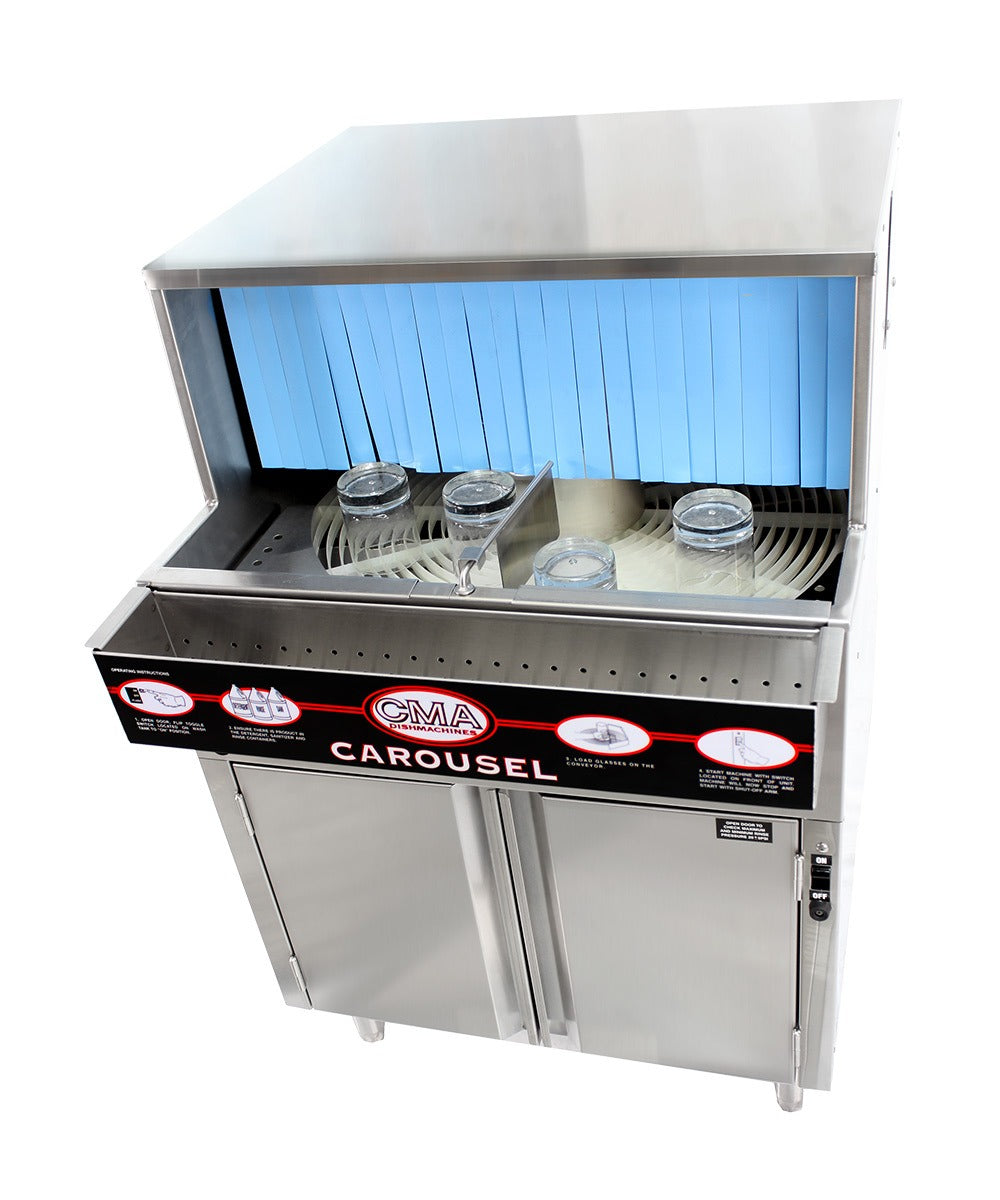

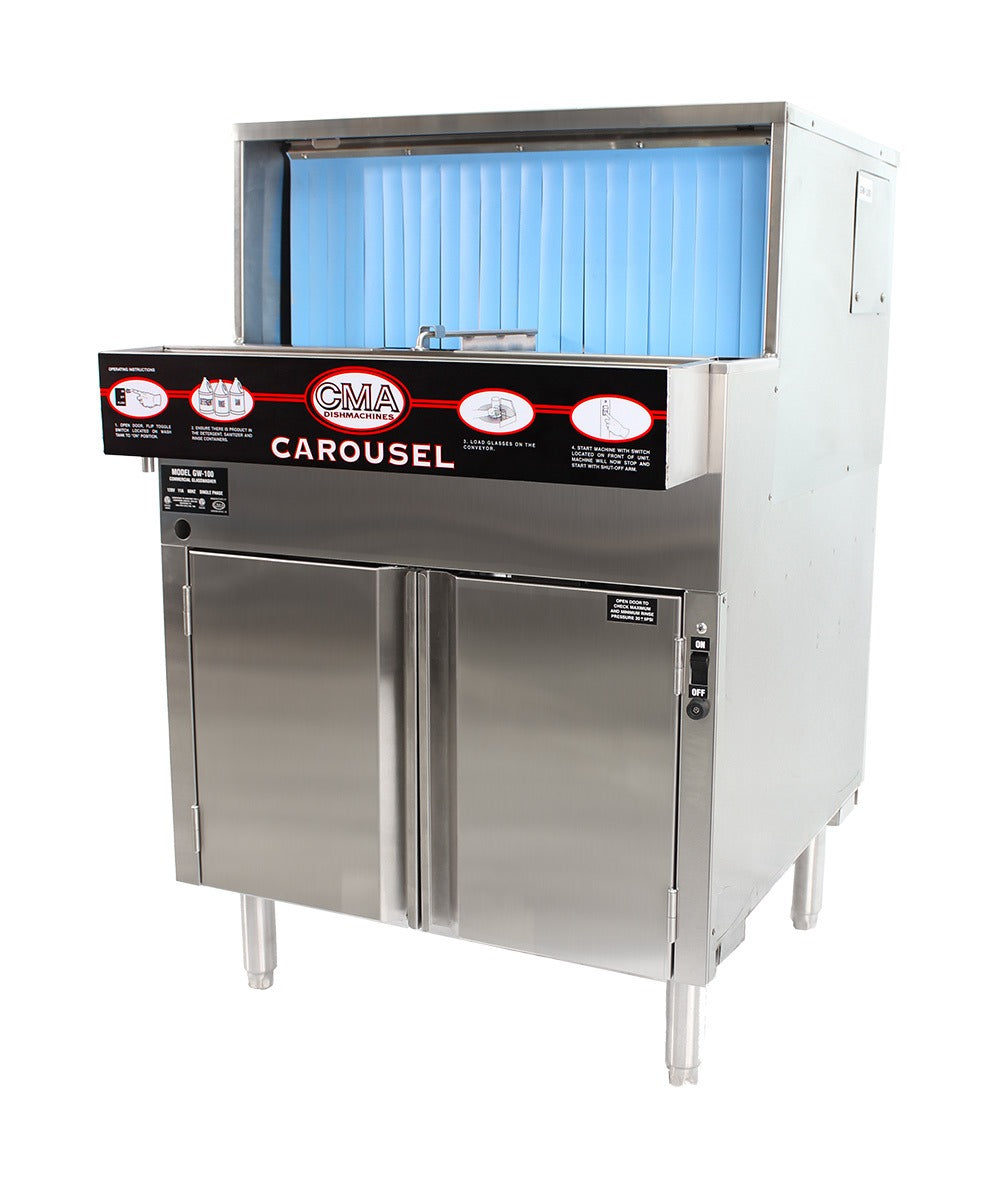

The CMA Dishmachines GW-100 Glass Washer
Run a high-volume bar off a standard 120 volt circuit: the CMA Dishmachines GW-100 is a 25 in. wide rotary undercounter glasswasher that cleans and sanitizes up to 1000 2-1/2 in. glasses per hour while its built-in 1.5 kW electric tank heater keeps recirculated wash water at the recommended 140°F. Glasses ride a rotating conveyor through wash and rinse continuously, so your bartenders never stand around waiting on a cycle to finish.
Rotary Conveyor Washing
A rack machine makes you batch dirty glassware and wait; the GW-100 works piece by piece. Set glasses mouth-down on the Poly Pro circular conveyor and they travel through the wash and rinse zones without stopping. The conveyor is extremely durable and reduces chipping and breakage of glassware, and the hands-free, glass activated on/off stop runs the carousel only when glasses are on it. With 11-3/4 in. of height clearance, tall pilsners and pint glasses pass through as easily as rocks glasses.
Built-In Tank Heater and Chemical Dosing
The 1.5 kW electric tank heater holds recirculated wash water at 140°F on a 120 volt, 14.4 amp supply, which means no special electrical work in most buildings. Separate detergent, sanitizer, and rinse aid pumps with primer switches handle dosing automatically, the machine accepts both iodine and chlorine sanitizers, and an optional rinse temperature setting adds sanitizing flexibility. Independent spray arms hit glassware from top and bottom for complete cleaning, sanitizing, and rinsing.
Double-Wall Stainless Steel Cabinet
The cabinet and wash chamber are all stainless steel for a long, trouble free service life, and double wall construction keeps noise down where guests sit close. Controls stay simple for both operation and cleaning, so training a new bartender on the machine takes minutes, not shifts.
Internal Storage and Cleanup
Three 1 gallon chemical containers store inside the cabinet, keeping your backbar tidy and the jugs connected and secure. The front mounted drain tray and waste collector gather drips and debris for quick emptying, splash curtains control overspray at the openings, and 6 in. legs set the conveyor at a comfortable loading height.
Features & Benefits
-
Fits busy bars and taprooms that need continuous glass washing from a standard 120 volt connection.
-
Cleans and sanitizes up to 1000 2-1/2 in. glasses per hour in a continuous flow instead of batch cycles.
-
Poly Pro circular conveyor is extremely durable and reduces chipping and breakage of glassware as it carries each piece through wash and rinse.
-
Hands-free glass activated on/off stop runs the conveyor only when glassware is on it, which is both safe and convenient.
-
Built-in 1.5 kW electric tank heater on a 120 volt supply maintains recirculated wash water at the recommended 140°F wash temperature.
-
Separate built-in detergent, sanitizer, and rinse aid chemical pumps with primer switches meter each product automatically.
-
Works with both iodine and chlorine sanitizers, so you are not locked into one chemical program.
-
Optional rinse temperature setting allows flexible sanitizing options.
-
Independent spray arms blast water from the top and bottom for complete cleaning, sanitizing, and rinsing.
-
Double wall stainless steel construction keeps back bar operation quiet and stands up to years of wet duty.
-
Internal chemical storage keeps three 1 gallon containers hidden inside the cabinet.
-
Front mounted drain tray and waste collector make end-of-night cleanup fast.
-
Splash curtains contain overspray at the conveyor openings.
-
Generous 11-3/4 in. height clearance handles tall glassware, and 6 in. legs set a comfortable loading height.
Free Shipping 48 Contiguous states & DC only.
In Stock: Ships in 1-2 Business Days
Fits busy bars and taprooms that need continuous glass washing from a standard 120 volt connection.
Cleans and sanitizes up to 1000 2-1/2 in. glasses per hour in a continuous flow instead of batch cycles.
Poly Pro circular conveyor is extremely durable and reduces chipping and breakage of glassware as it carries each piece through wash and rinse.
Hands-free glass activated on/off stop runs the conveyor only when glassware is on it, which is both safe and convenient.
Built-in 1.5 kW electric tank heater on a 120 volt supply maintains recirculated wash water at the recommended 140°F wash temperature.
The CMA Dishmachines GW-100 Glass Washer
Run a high-volume bar off a standard 120 volt circuit: the CMA Dishmachines GW-100 is a 25 in. wide rotary undercounter glasswasher that cleans and sanitizes up to 1000 2-1/2 in. glasses per hour while its built-in 1.5 kW electric tank heater keeps recirculated wash water at the recommended 140°F. Glasses ride a rotating conveyor through wash and rinse continuously, so your bartenders never stand around waiting on a cycle to finish.
Rotary Conveyor Washing
A rack machine makes you batch dirty glassware and wait; the GW-100 works piece by piece. Set glasses mouth-down on the Poly Pro circular conveyor and they travel through the wash and rinse zones without stopping. The conveyor is extremely durable and reduces chipping and breakage of glassware, and the hands-free, glass activated on/off stop runs the carousel only when glasses are on it. With 11-3/4 in. of height clearance, tall pilsners and pint glasses pass through as easily as rocks glasses.
Built-In Tank Heater and Chemical Dosing
The 1.5 kW electric tank heater holds recirculated wash water at 140°F on a 120 volt, 14.4 amp supply, which means no special electrical work in most buildings. Separate detergent, sanitizer, and rinse aid pumps with primer switches handle dosing automatically, the machine accepts both iodine and chlorine sanitizers, and an optional rinse temperature setting adds sanitizing flexibility. Independent spray arms hit glassware from top and bottom for complete cleaning, sanitizing, and rinsing.
Double-Wall Stainless Steel Cabinet
The cabinet and wash chamber are all stainless steel for a long, trouble free service life, and double wall construction keeps noise down where guests sit close. Controls stay simple for both operation and cleaning, so training a new bartender on the machine takes minutes, not shifts.
Internal Storage and Cleanup
Three 1 gallon chemical containers store inside the cabinet, keeping your backbar tidy and the jugs connected and secure. The front mounted drain tray and waste collector gather drips and debris for quick emptying, splash curtains control overspray at the openings, and 6 in. legs set the conveyor at a comfortable loading height.
Features & Benefits
-
Fits busy bars and taprooms that need continuous glass washing from a standard 120 volt connection.
-
Cleans and sanitizes up to 1000 2-1/2 in. glasses per hour in a continuous flow instead of batch cycles.
-
Poly Pro circular conveyor is extremely durable and reduces chipping and breakage of glassware as it carries each piece through wash and rinse.
-
Hands-free glass activated on/off stop runs the conveyor only when glassware is on it, which is both safe and convenient.
-
Built-in 1.5 kW electric tank heater on a 120 volt supply maintains recirculated wash water at the recommended 140°F wash temperature.
-
Separate built-in detergent, sanitizer, and rinse aid chemical pumps with primer switches meter each product automatically.
-
Works with both iodine and chlorine sanitizers, so you are not locked into one chemical program.
-
Optional rinse temperature setting allows flexible sanitizing options.
-
Independent spray arms blast water from the top and bottom for complete cleaning, sanitizing, and rinsing.
-
Double wall stainless steel construction keeps back bar operation quiet and stands up to years of wet duty.
-
Internal chemical storage keeps three 1 gallon containers hidden inside the cabinet.
-
Front mounted drain tray and waste collector make end-of-night cleanup fast.
-
Splash curtains contain overspray at the conveyor openings.
-
Generous 11-3/4 in. height clearance handles tall glassware, and 6 in. legs set a comfortable loading height.
Resources & Downloads
Specifications
| Glasses per Hour (2-1/2") | 1000 |
| Maximum Clearance for Glassware | 11-3/4" |
| Conveyor Type | Poly Pro circular |
| Tank Heater | 1.5 kW |
| Recommended Hot Inlet Temperature | 140°F |
| Cold Inlet Temperature | 75°F |
| Hot Water Initial Fill | 3 gal |
| Hot Water per Hour (max) | 12 gal |
| Cold Water per Minute (approx) | 2.8 GPM |
| Hot Water Inlet | 1/2" |
| Cold Water Inlet | 1/2" |
| Drain (max) | 1-1/2" |
| Recommended Water Hardness | 3.5 gpg or less |
| Electrical | 120 V, 60 Hz, 1 Phase |
| Amperage | 14.4 A |
| Internal Chemical Storage | 3 one-gallon containers |
| Construction | Double-wall stainless steel |
| Legs | 6" |
| Width | 25-1/4" |
| Depth | 25-1/8" |
| Height | 39" - 40-1/2" |
| Shipping Weight | 187 lb |
| Shipping Dimensions | 29" x 28" x 41" |
Manufacturer's Warranty
-
1 Year
Labor
-
1 Year
Parts
Certifications & Approvals
-
ETL US & Canada
-
