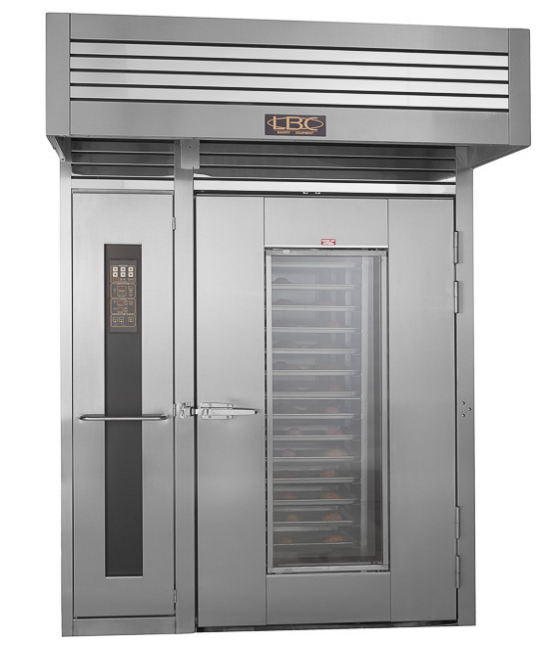

LBC Bakery LRO-2G6 290,000 BTU Gas Double Roll-In Rotating Rack Oven, 40 full-size sheet pan capacity with exhaust heat recovery and integrated hood

The LBC LRO-2G6 is a gas-fired, double-rack rotating rack oven rated at 290,000 BTU/hr, built for the highest-volume bakeries that need to bake two single racks or one double rack at once. An exhaust heat recovery system increases fuel efficiency, racks load at floor level with no ramp, and a fully integrated welded stainless hood ships with the oven, meeting NFPA 96 and Type I and II construction requirements.

Capacity And Output

The LRO-2G6 accommodates two single racks or one double rack, holding up to 40 full-size 18" x 26" sheet pans on 3" spacing or 52 hotel pans (12" x 20" x 4") on 6" spacing. It bakes as many as 200 one-pound loaves or 100 one-and-one-half-pound loaves per load, doubling the throughput of a single-rack oven for wholesale and large-format retail production.

Gas Heating And Efficiency

A linear counterflow heat exchanger paired with an inshot burner manifold and hot-surface igniter delivers 290,000 BTU/hr of natural-gas input across a 100°F to 525°F range. An exhaust heat recovery system captures waste heat to raise fuel efficiency, while a high-volume waterfall steam system and a three-point air circulation system with adjustable shutters give precise control over crust and bake.

Rotation And Door Design

An automatic, heavy-duty "B" style lift with gear-driven rotation turns the racks for even results, and a self-adjusting clutch protects the operator and prevents drive damage. The rack drive automatically stops, lifts, and lowers with door operation. A heavy-duty door with a 21" x 57.5" double-pane viewing window, an interior door safety release, and reversible door swing complete the package.

Integrated Hood And Controls

The fully integrated 20-gauge welded stainless hood provides a single-point exhaust connection and a 16.5-square-foot capture area at 800 cfm, with optional listing to 525°F. The standard digital display control offers a single-step mode with 40 recipes and six quick-select buttons, a six-step mode with 30 recipes, programmable steam, vent, blower delay, and pulse air, plus a manual backup control. An optional 8" Android touch screen adds photo recipes, a day planner, and Wi-Fi.

Construction And Installation

Built from heavy-duty stainless steel inside and out with 5" of high-temperature insulation, the LRO-2G6 is rated for 0" combustible clearance at the sides and back and carries an Energy Star certification. It ships split into two halves to move through a 36" opening, requires 112" of ceiling clearance for tip-up, and has an actual weight of 3,380 lbs.
